Wood dust can look harmless until one spark reaches a loaded collector. Fine particles may harm breathing, feed a fire, or form an explosive dust cloud. A safe bag dust collector must control these risks, not only capture dust. This guide explains five essential features and how Vietnam factories should evaluate them.
Woodworking factories produce more than visible chips. Sanding, routing, drilling, carving, and cutting can release fine particles that remain suspended in the air. Employees may breathe them, while settled dust can spread across machines, beams, cables, and hidden surfaces.
Fine wood dust also presents a fire and explosion concern. A dangerous event may occur when combustible particles mix with air, meet an ignition source, and become confined inside a duct, hopper, bin, or collector. Dust collectors deserve special attention because they capture and store concentrated material in one enclosed area.
The risk level changes between processes. A planer may produce large shavings, while a wide-belt sander produces much finer dust. MDF, plywood, coated boards, and solid wood may also behave differently. Therefore, factories should not select equipment through airflow figures alone.

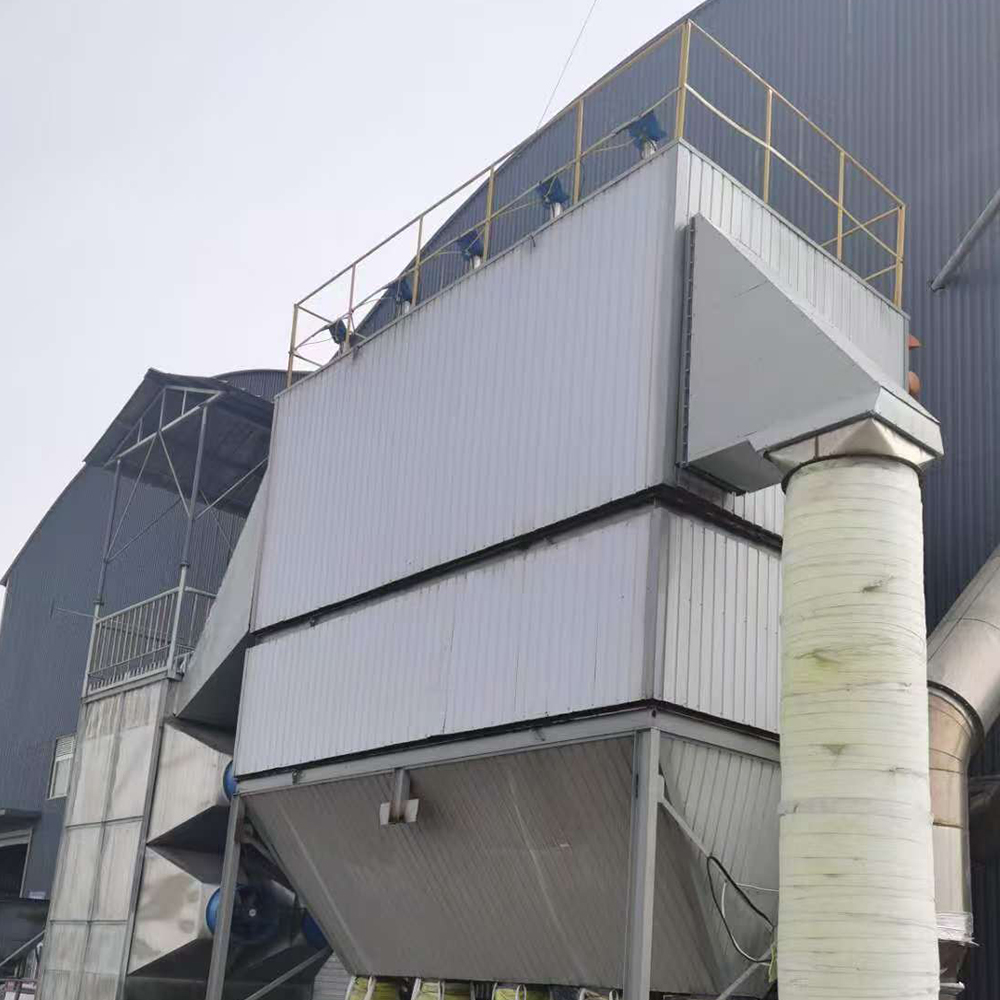

A woodworking bag dust collector needs suitable safety controls for the actual dust, machines, operating hours, duct network, and installation location.
The following features form a layered safety system. Some components may be standard, while others require customized engineering. Buyers should confirm every feature in technical drawings and quotations.
A collector handling wood dust should use a robust housing, sealed connections, and materials selected for the expected fire risk. Flame-resistant internal construction can help slow fire spread and protect nearby equipment. However, it cannot remove every ignition source.
Temperature sensors provide another layer of control. They can monitor high-risk areas near the inlet, filter chamber, hopper, or fan. When temperatures rise beyond a defined limit, the control system should issue an alarm. It may also stop the fan, pulse system, feeding equipment, or connected woodworking machines.
Automatic shutdown is important because operators may not see a developing hot spot inside the collector. A fast response can prevent continued airflow from feeding the event.
The company’s woodworking collection equipment can incorporate flame-retardant construction, temperature monitoring, modular filtration, and automatic shutdown functions for factory applications.
Buyers should ask:
● Where are temperature sensors installed?
● What temperature triggers the warning?
● Which machines stop automatically?
● Must operators reset the system manually?
● Does the control panel record alarm history?
Dust moving through filters and ducts can create an electrostatic charge. If that charge cannot escape safely, it may build across isolated metal parts or unsuitable filter media.
Anti-static filter bags help control this risk. They may contain conductive fibers or other features that allow charges to move toward a grounded structure. However, the filter bag cannot protect the whole system alone.
The collector housing, filter cages, fan, duct sections, hopper, rotary discharge equipment, and connected machines should share a reliable electrical path. Flexible hoses and painted joints require special attention because they may interrupt continuity.
Grounding and bonding should be tested during commissioning. They should also be checked after maintenance, duct changes, filter replacement, or relocation.
Available woodworking configurations include anti-static filter options for flammable wood dust and specialized media for humid operating conditions.
Note: Ask the supplier to identify every grounding point on the installation drawing, rather than accepting a general “anti-static” description.
Sparks may come from damaged tools, metal fragments, overheated bearings, friction, or foreign objects entering processing equipment. A glowing particle can travel through a duct before workers notice anything unusual.
Spark detection systems monitor the material stream upstream of the collector. When they identify a hot particle, they can activate an alarm, stop connected machines, open a diversion gate, or start an extinguishing function.
Sensor placement matters. A detector installed too close to the collector may not leave enough response time. One installed in a poorly selected duct section may miss part of the airflow. The final location should consider duct speed, distance, bends, branches, and the response time of the protective device.
Inlet protection may also include separators that remove larger objects before they reach filter bags. This is useful where the collected stream contains chips, offcuts, fasteners, or mixed debris.
Spark detection and fire-control devices are recognized safeguards for wood particulate collection systems where ignition can travel downstream through ductwork.
Wood dust may create a rapid pressure rise when it ignites inside an enclosed collector. The system therefore needs a defined method for controlling pressure and preventing flame propagation.
Explosion venting gives pressure a designed escape path. It must discharge toward a safe area, away from workers, doors, roads, stored materials, and nearby buildings.
Flameless venting may be considered where direct outdoor venting is difficult. It uses a specialized device to reduce flame release. Its suitability depends on the dust, collector design, room conditions, and local requirements.
Explosion suppression detects the early pressure rise and releases an extinguishing agent. It aims to control the event before pressure reaches a dangerous level.
Isolation devices protect connected equipment. They help stop flame and pressure from traveling backward through the inlet duct or forward through the dust discharge system. Venting without isolation may leave upstream machines and occupied work areas exposed.
The chosen solution should follow a documented hazard assessment. Collector volume, dust properties, duct strength, location, and discharge method all affect the design.
Tip: Request one drawing showing pressure relief direction, inlet isolation, hopper isolation, and the nearest occupied work area.
Many unsafe conditions begin as small operating changes. A blocked filter raises system resistance. A damaged bag may reduce differential pressure. A full hopper may allow dust to reach the filter chamber. A fan fault may reduce extraction at several machines.
An intelligent control system should monitor the most important conditions, including:
● Differential pressure across filter bags
● Fan and motor status
● Airflow or suction condition
● Temperature
● Pulse-cleaning operation
● Hopper or dust-bin level
● Discharge equipment status
● Emergency stop circuits
Alarms should tell operators what happened and what action they must take. A flashing light without a clear fault code offers limited value.
Critical faults should also activate interlocks. For example, connected woodworking machines may stop when extraction fails. The dust discharge system may stop if a downstream container is unavailable. Temperature alarms may shut down both the fan and upstream process.
Available bag dust collection systems can include pulse cleaning, automatic start-stop control, fault alarms, remote monitoring, inspection access, and centralized dust discharge.
Safety feature | Main risk controlled | What to verify |
Fire-resistant construction | Heat and fire spread | Materials, sensor positions, and shutdown logic |
Anti-static system | Electrical charge buildup | Filter media, bonding, and grounding continuity |
Spark detection | Hot particles entering the collector | Detection position and response time |
Explosion protection | Pressure and flame propagation | Relief, suppression, isolation, and safe discharge |
Intelligent monitoring | Hidden operating faults | Alarm settings, interlocks, and fault records |
No single device can control every woodworking dust hazard. A safer system uses several barriers before, inside, and after the collector.
At the source, effective hoods capture dust before it spreads. Proper duct velocity carries it toward the collector. Separators may remove large chips or foreign material. Spark detection then checks the incoming stream.
Inside the collector, anti-static filtration, grounding, temperature monitoring, and controlled pulse cleaning support stable operation. If ignition still occurs, explosion relief or suppression manages pressure. Isolation devices help stop propagation through connected ducts.
The control panel links these layers together. It receives sensor signals and activates alarms, shutdowns, gates, or other protective responses.
A typical event sequence may look like this:
Hot particle enters duct → detector sends signal → connected process stops → isolation activates → collector protection responds → alarm directs inspection
The exact sequence should be tested during commissioning. Employees must understand what each alarm means before normal production begins.
Different machines create different dust streams. The collector configuration should reflect the most demanding process connected to it.
Saws and planers often produce larger chips mixed with fine dust. High material loading may block small ducts or overload filter bags. A pre-separator can reduce this burden. Inlet protection should also consider nails, screws, broken blades, and other foreign materials.
These processes create finer particles and continuous dust loads. They need strong source capture, stable airflow, effective pulse cleaning, and close differential-pressure monitoring. Anti-static media may be required after the dust risk is assessed.
MDF and similar materials often create very fine dust. Coatings, adhesives, surface treatments, and moisture can affect filter selection. Buyers should provide material safety information and sample dust when possible.
A centralized bag dust collector may serve several machines. The system must maintain suitable extraction at each active point. Automatic dampers, fan-speed control, balanced branches, and process interlocks can improve performance.
A future machine should not be added without checking airflow, duct resistance, filter loading, and safety capacity. An undersized system may appear operational while failing to capture dust at distant workstations.
Vietnam factories may operate in humid conditions, dense industrial zones, and production buildings where space is limited. These conditions affect electrical components, filter media, corrosion protection, collector location, and maintenance access.
The first step is a dust and process assessment. It should record:
● Wood species and board materials
● Particle size and moisture
● Maximum dust generation
● Connected machine types
● Daily operating hours
● Possible ignition sources
● Indoor or outdoor installation
● Available floor and service space
Factories should also confirm local requirements for fire safety, electrical installation, building layout, environmental emissions, and worker protection. A qualified local engineer should review the final arrangement. Imported equipment does not remove the factory’s responsibility for safe site design.
Power supply, compressed air, foundation strength, roof clearance, weather exposure, and duct routes must be confirmed before production starts. Safe pressure-relief direction deserves special attention in crowded industrial areas.
Customized engineering may cover airflow calculation, filter material selection, duct layout, cleaning method, installation drawings, commissioning, and maintenance planning.
Note: Send the supplier a scaled workshop layout before requesting a final quotation, not after the collector has been selected.
Safety devices lose value when filters, sensors, ducts, or discharge parts are poorly maintained. Factories need written inspection routines for daily operation and planned shutdowns.
Operators should record differential pressure and compare it against the normal range. A steady rise may indicate blocked bags or weak pulse cleaning. A sudden drop may suggest leakage, a broken filter, or an open access door.
Filter bags, cages, seals, pulse valves, grounding connections, inspection doors, and hopper components need regular checks. Dust should not accumulate inside the clean-air chamber or around leaking duct joints.
Temperature sensors, alarms, emergency stops, and interlocks should be function-tested. Waiting for a real fire or fault is not a suitable test method.
Dust bins must be emptied before they become overfilled. Employees should isolate energy sources before entering, opening, or servicing the collector. They should never use compressed air to spread settled dust across the workshop.
Tip: Keep an inspection log showing the normal pressure range, alarm tests, filter changes, grounding checks, and corrective actions.
A safe woodworking bag dust collector needs layered protection against heat, sparks, static charge, pressure, and hidden faults. Botou Xintian Environmental Protection Equipment Co., Ltd. provides customizable filtration, pulse cleaning, intelligent controls, flame-resistant options, and technical support. Its engineering services help factories match equipment, ducts, filters, and controls to real woodworking conditions, supporting safer production and stable long-term operation.
A: A safe bag dust collector combines prevention, monitoring, isolation, and pressure control.
A: The bag dust collector uses sensors, alarms, and automatic shutdown controls.
A: A bag dust collector uses them to reduce electrical charge buildup.
A: Cost depends on airflow, dust risk, controls, and installation complexity.
A: Neither is always better; site conditions determine the correct method.
A: Blocked filters, failed cleaning, or excessive dust loading are common causes.
