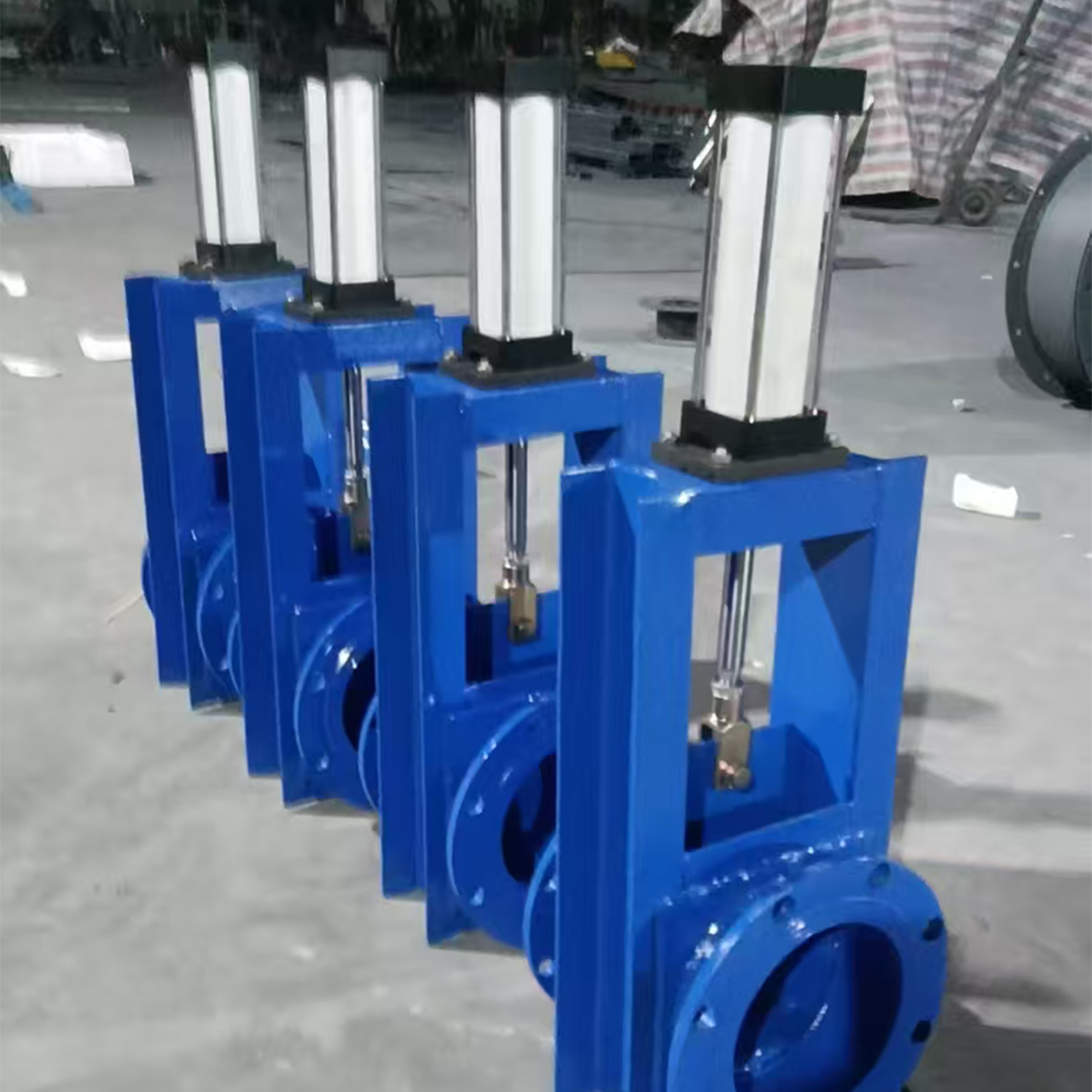

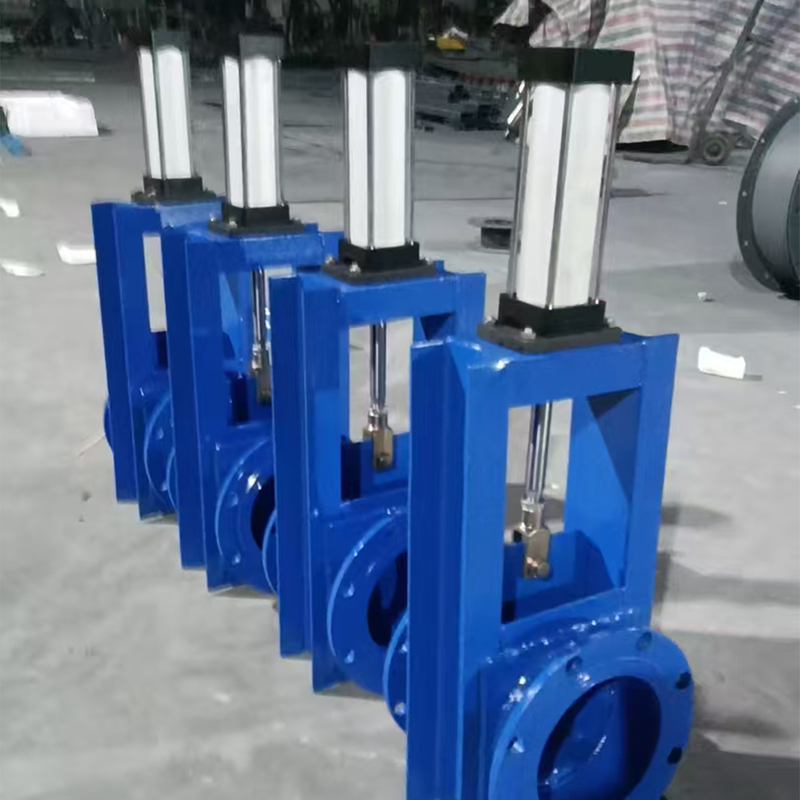

The Adjustable Industrial Flue-Dust Ash Discharge Valve is a high-performance environmental protection equipment tailored for industrial flue gas treatment systems. It integrates adjustable flow control, high-temperature resistance, and sealed operation, solving the problem of uneven ash discharge in flue systems caused by variable flue gas volume and ash concentration. As a key product of Botou Xintian Environmental Protection—an enterprise integrating R&D, production, and service—this valve is certified by ISO9001 and widely recognized by customers in the fields of flue gas treatment and environmental protection engineering.
| Quantity: | |
|---|---|
The Customizable Industrial Flue-Dust Ash Valve adopts a modular design, allowing precise adjustment of ash discharge volume (0 - 100%) through a manual or electric adjustment mechanism. Its robust structure is designed based on the company’s experience in large structural component welding and flexible fixture manufacturing, ensuring stable operation under harsh conditions such as high temperature, high pressure, and heavy dust. Whether used in industrial boilers, incinerators, or chemical flue systems, it effectively improves ash discharge efficiency and reduces environmental pollution risks.
Wide adjustment range: Supports stepless adjustment of ash discharge volume from 0 to 100%, adapting to variable working conditions of flue gas and ash output.

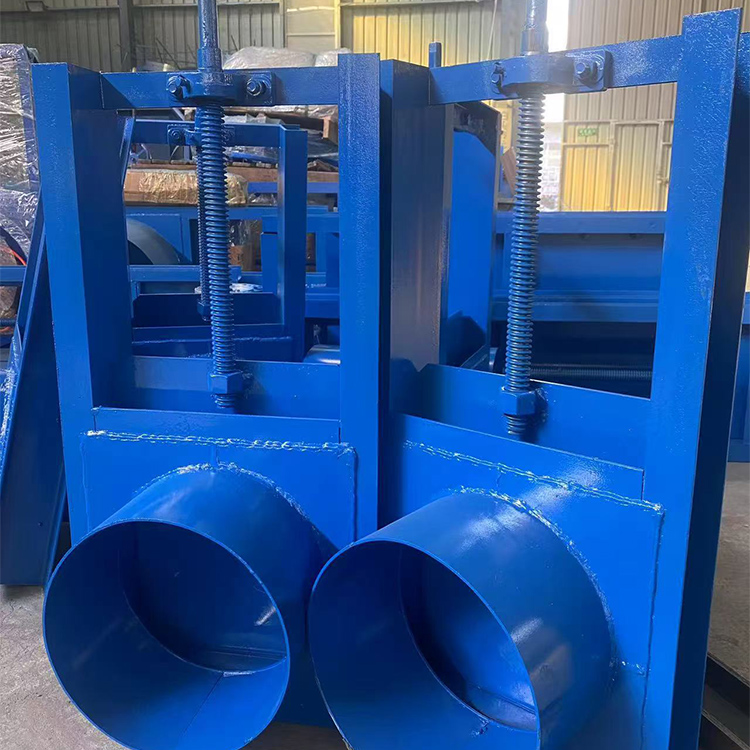

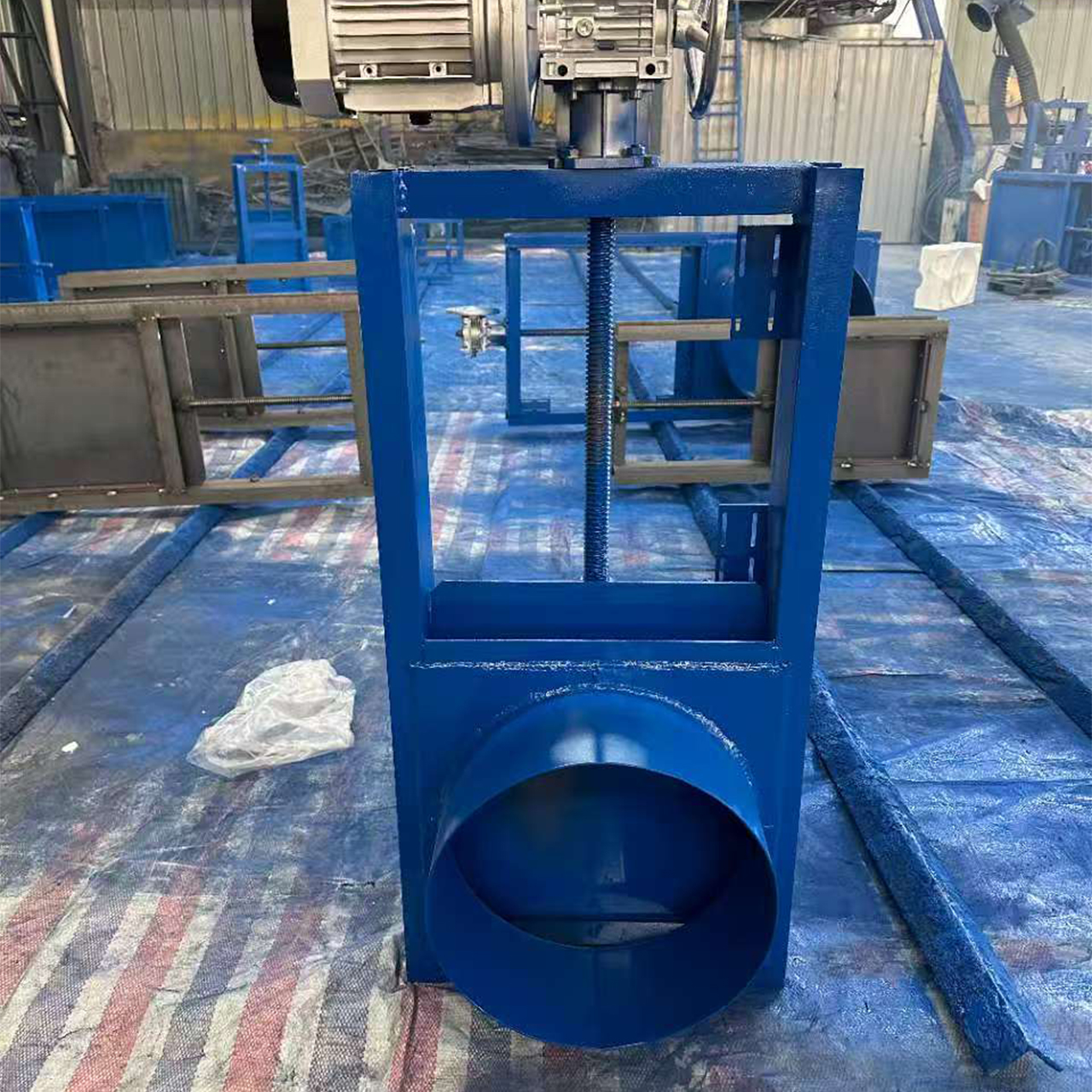

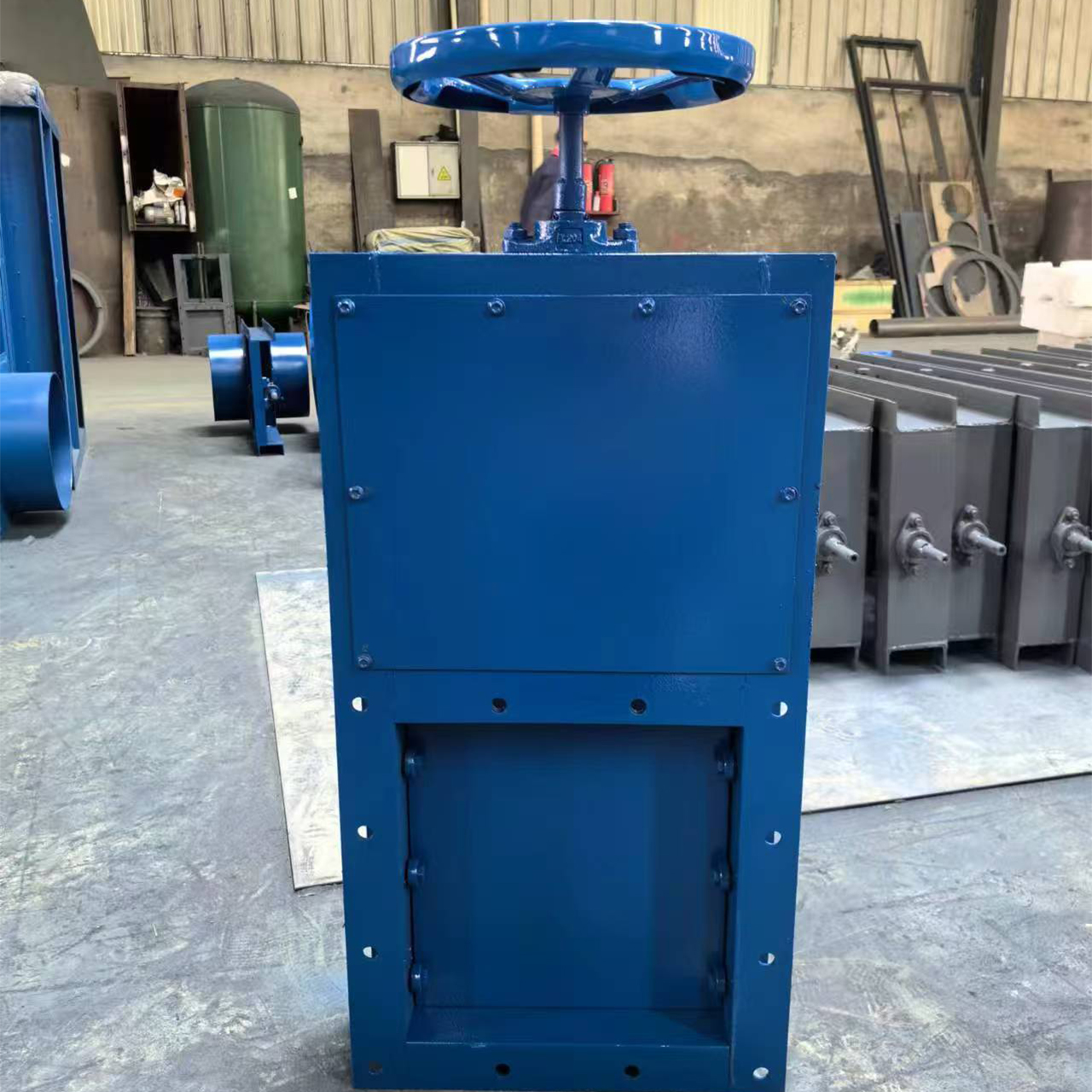

Dual adjustment modes: Optional manual adjustment (with precise scale) or electric adjustment (equipped with servo motor), realizing automatic control and remote operation.
High adjustment accuracy: The adjustment error is ≤ ±3%, ensuring uniform ash discharge and stable operation of the downstream conveying system.
High-temperature and corrosion resistance: The valve body is made of heat-resistant alloy steel, with a maximum working temperature of 400℃, suitable for high-temperature flue gas environments.
Pressure resistance design: The reinforced valve body structure withstands flue gas pressure up to 1.2 MPa, preventing deformation and leakage under high-pressure conditions.
Wear-resistant lining: The internal contact surface with ash is lined with wear-resistant ceramic materials, extending service life by 50% compared to ordinary valves.
Modular structure: The valve body, adjustment mechanism, and actuator are designed separately, facilitating disassembly, inspection, and replacement of parts.
Low maintenance requirements: The sealed bearing and lubrication system reduce friction loss, requiring only regular inspection without frequent maintenance.
Energy-saving design: The electric adjustment mechanism adopts low-power motors, and the optimized flow channel reduces resistance, saving operational costs for customers.
Parameter | Specification |
Valve Bore Diameter | DN80 - DN400 mm |
Adjustment Range | 0 - 100% (stepless adjustment) |
Working Pressure | 0.1 - 1.2 MPa |
Working Temperature | -30℃ - 400℃ |
Material | Body: Heat-resistant alloy steel; Lining: Wear-resistant ceramic |
Adjustment Mode | Manual/electric (servo motor) |
Adjustment Accuracy | ≤ ±3% |
Sealing Grade | GB/T 4213-2008 Class 5 |
Installation Method | Flange connection (GB/JS/ANSI standards) |
Weight | 35 - 150 kg (varies by bore diameter) |
Applied in flue systems of industrial boilers, industrial furnaces, and waste incinerators, it adjusts ash discharge volume according to flue gas load changes, ensuring efficient ash removal and stable flue gas flow. Typical customers include thermal power plants, waste incineration plants, and chemical factories.
Suitable for ash discharge in cement kiln flue systems, the Adjustable Flue Ash Unloading Valve for Industrial Dust copes with high-temperature and high-concentration dust environments, preventing ash accumulation and pipeline blockage, and improving production efficiency.
Used in flue systems of chemical reactors and waste gas treatment equipment, it handles corrosive and toxic dust, ensuring sealed operation and meeting environmental protection emission standards.
We provide personalized customization to adapt to different flue system requirements:
Size customization: Customize valve bore diameter (DN80 - DN600 mm), length, and flange dimensions according to flue pipeline parameters and installation space.
Material customization: For special working conditions (e.g., strong corrosion, ultra-high temperature > 400℃), provide titanium alloy, nickel-based alloy, and other special materials.
Adjustment mechanism customization: Choose manual, electric, or pneumatic adjustment mechanisms; equip with position sensors and control modules for intelligent linkage.
Flange standard customization: Support international standards such as GB, JS, ANSI, and DIN; customers can specify the required standard or provide drawings for customization.
Delivery cycle: Standard customized products are delivered within 10 - 20 working days, with technical support provided throughout the customization process.
Rely on the company’s professional R&D team in flexible intelligent welding equipment and automation integration, continuously optimizing the valve’s adjustment mechanism and structural design.
Possess advanced processing equipment such as robot welding workstations and precision machining centers, ensuring product processing accuracy and performance stability.
Implement ISO9001 management system standards, with strict quality inspection from raw material incoming inspection to finished product performance testing.
Conduct high-temperature, high-pressure, and long-term operation tests on each adjustable valve to ensure it meets industrial flue system usage requirements.
Provide 24/7 technical consultation through phone, WhatsApp, email, and other channels, responding to customer questions within 2 hours.
Offer on-site installation guidance, commissioning, and maintenance training services; overseas customers can enjoy local after-sales support through cooperative partners.
Adhere to the concept of "quality wins the market, honesty builds the brand," providing customers with cost-effective products and long-term cooperative relationships.
