A welding fume extractor is an essential piece of equipment designed to capture and filter harmful smoke, dust, and particles generated during welding, cutting, and grinding processes. By removing toxic fumes at the source, it helps protect workers’ health and ensures compliance with strict environmental and safety standards. The extractor uses a powerful fan and a multi‑stage filtration system, including HEPA and activated carbon filters, to effectively purify the air. Its flexible suction arm allows precise positioning, while the compact and mobile design makes it easy to move between workstations. Suitable for use in factories, workshops, and construction sites, the welding fume extractor provides a cleaner, safer, and more productive working environment.
| Quantity: | |
|---|---|

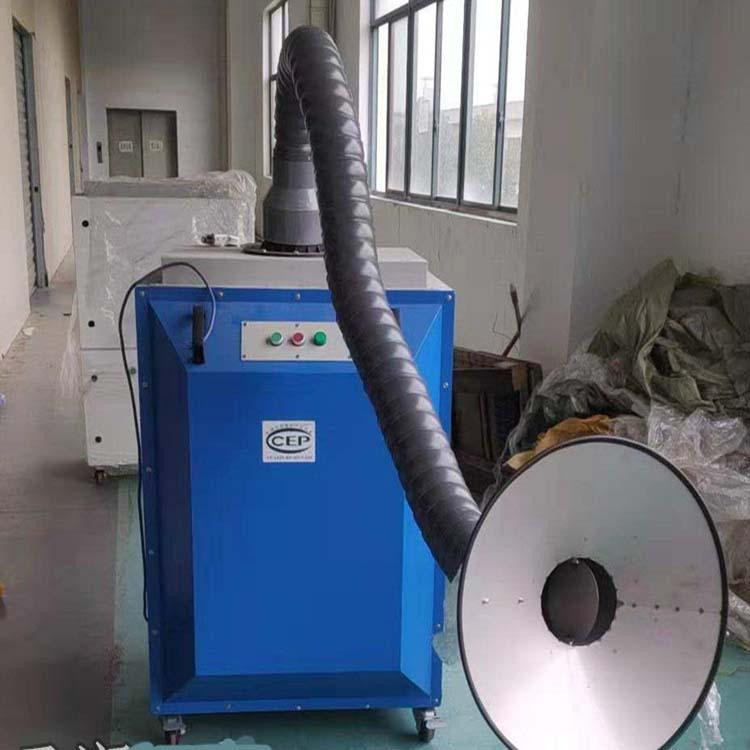

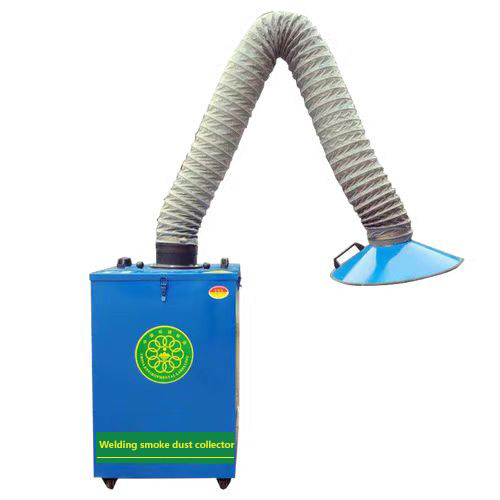

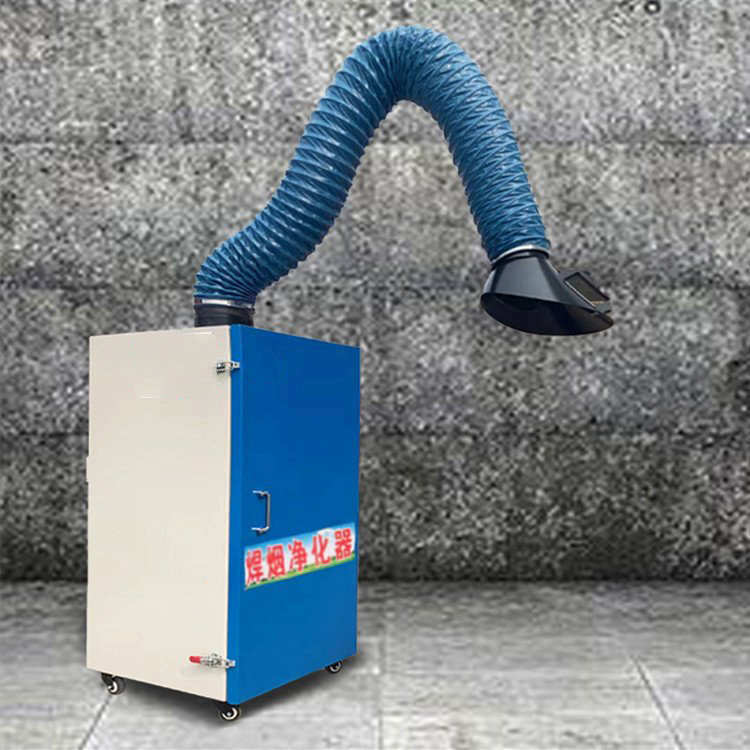

The Portable Welding Fume Extractor is a compact and efficient environmental protection device designed for metal fabrication scenarios, specializing in capturing and filtering welding fumes, smoke, and particulate matter. As a core product for improving workshop air quality, this mobile welding fume extractor for metal shops integrates portability, high efficiency, and durability, effectively solving the problem of welding fume pollution in flexible production environments. Suitable for small to medium-sized metal processing plants, robot welding workstations, and on-site maintenance operations, it helps enterprises comply with occupational health and environmental protection regulations. Botou Xintian Environmental Protection Equipment Co., Ltd. combines rich experience in welding equipment R&D with user-centric design to create reliable fume extraction solutions for global B-end clients.
Equipped with a two-stage filtration structure: primary filter for large particulate matter and HEPA high-efficiency filter (H13 grade) with filtration efficiency ≥99.97% for particles as small as 0.3μm. The customized filter material effectively captures welding fumes containing heavy metals and harmful gases, ensuring discharged air meets international environmental standards. The filter replacement reminder function reduces operational complexity and maintains stable filtration performance.

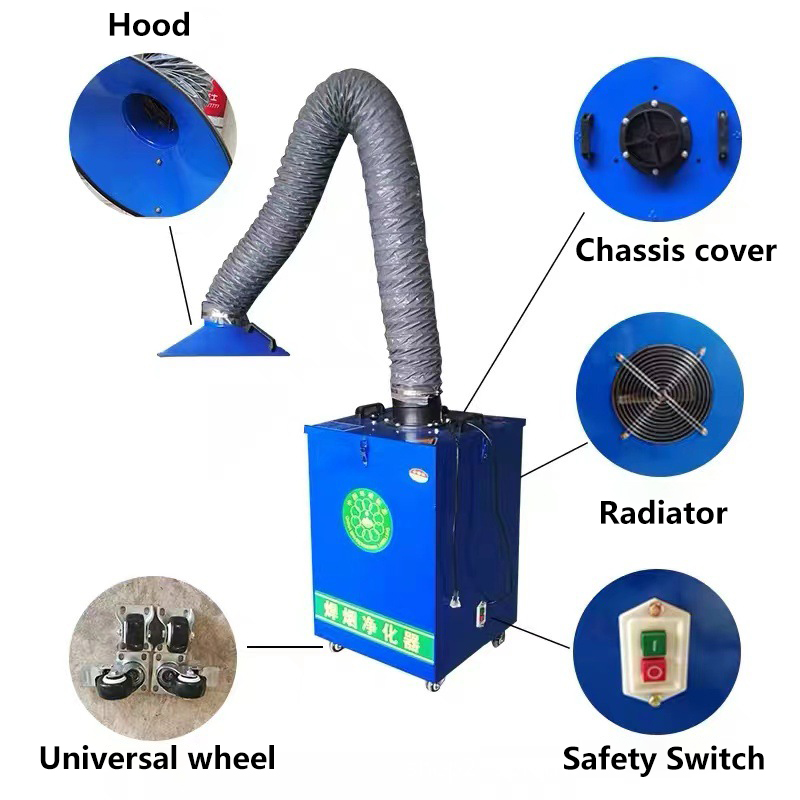

With a compact structure (volume ≤0.5m³) and integrated handle, the industrial portable welding smoke remover weighs only 25-40kg, enabling one-person easy movement. Equipped with high-quality silent universal wheels with brakes, it can be flexibly positioned near welding workstations, even in narrow spaces. The adjustable suction arm (length 2-3m) rotates 360 degrees, precisely aligning with welding points to maximize fume capture efficiency.
Adopting high-strength steel frame and corrosion-resistant surface spraying, the extractor withstands harsh industrial environments such as impact and high temperature. The brushless DC motor features low energy consumption (power 0.75-1.5kW) and long service life (≥8000 hours). The intelligent control panel with adjustable air volume (300-800m³/h) and overheat protection function ensures safe and reliable operation, reducing manual monitoring costs.
Parameter | Specification |
Air Volume | 300-800 m³/h (adjustable) |
Filtration Efficiency | ≥99.97% (for 0.3μm particles) |
Filter Grade | Primary filter + H13 HEPA filter |
Suction Arm Length | 2m / 3m (customizable) |
Motor Power | 0.75kW / 1.1kW / 1.5kW |
Voltage | 220V/50Hz or 380V/50Hz (customizable) |
Dust Capacity | 10-20L |
Noise Level | ≤75 dB(A) |
Net Weight | 25-40 kg |
Overall Dimensions (L×W×H) | 600×500×1200mm - 800×600×1500mm |
Protection Level | IP54 |

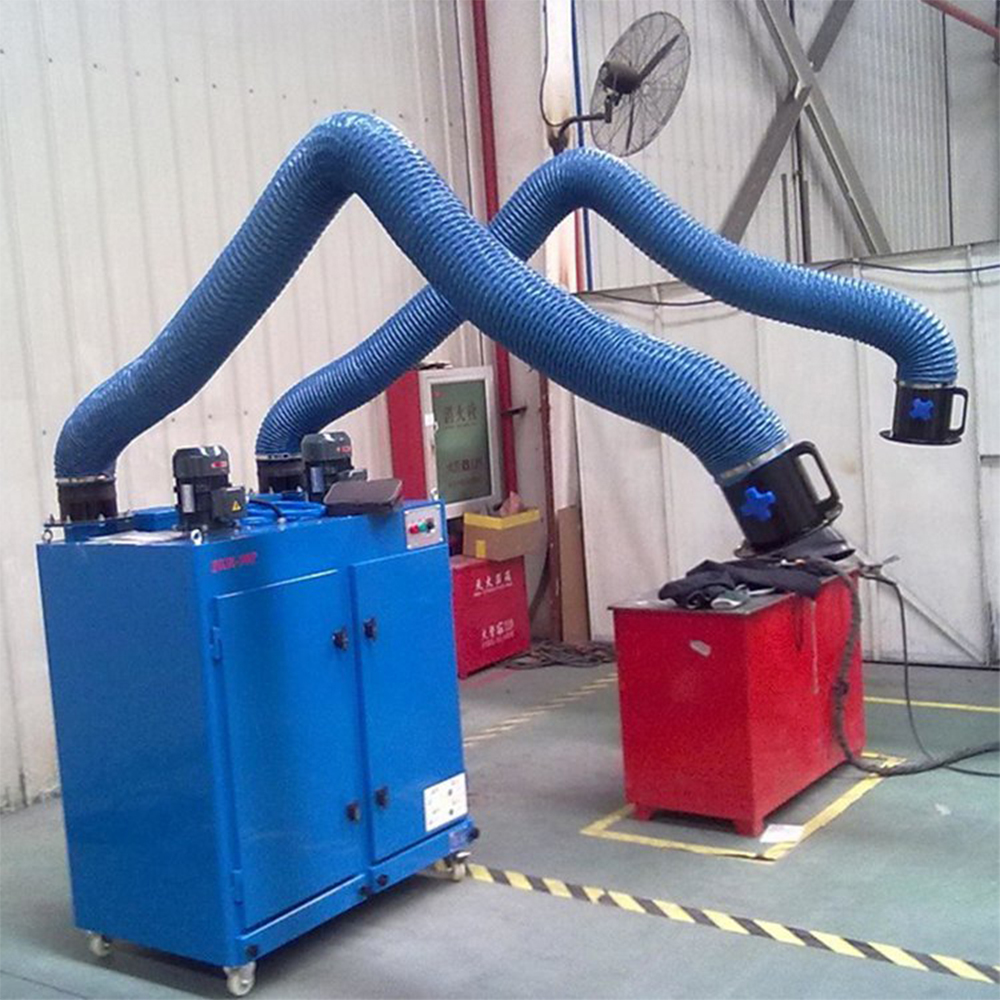

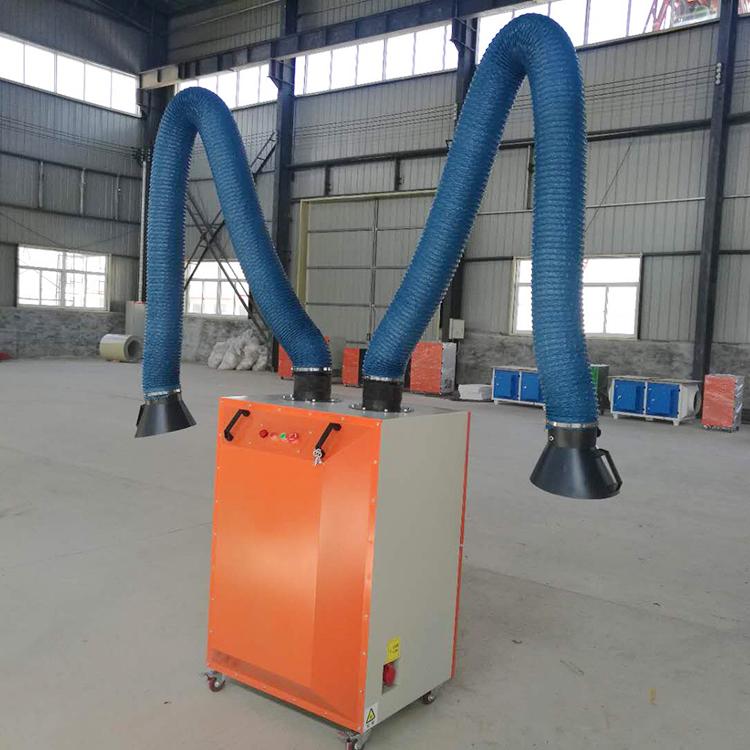

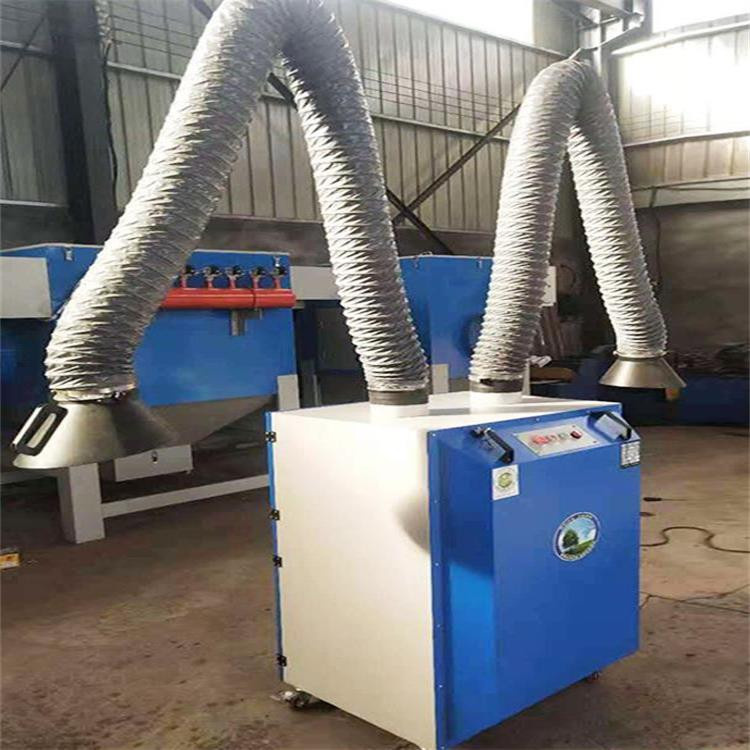

Model | Single-arm Welding Fume Purifier | Double-arm Welding FumePurifier | Double-arm Welding Fume Purifier(Extended) |
Air flow | 1500m³/h | 3000m³/h | 3500m³/h |
Power | 1.5kW | 2.2kW | 3kW |
Filter Cartridge (Qty) | 1x325x500 | 2x325x500 | 2 piece 325x500mm |
Filter Area | 5㎡ | 10㎡ | 10㎡ |
Suction Arm | 2m | 2m | 3m |
Suction Arm Size(mm) | 160x2000 | 160x2000 | 160x3000 |
Weight (kg) | 60 | 100 | 110 |
Dimensions (mm) | 500x700x1000 | 800x750x1200 | 800x750x1200 |
Perfectly matching flexible welding platforms (referring to the company’s robot welding workstation solutions), the extractor is flexibly placed around robotic arms to capture fumes generated during automatic welding of large structural components such as loading truck frames and forklift parts, ensuring a clean working environment for equipment.
Applied in welding processes of engineering machinery components (e.g., loader booms, rear frames), effectively collecting welding fumes in outdoor or semi-outdoor workshops. The portable design adapts to frequent position changes of workpieces, improving operational flexibility.
Suitable for welding of high-speed train air conditioning units, window assemblies, and aircraft wing components (referring to the company’s transportation industry application experience). The high-efficiency filtration system meets strict air quality requirements in precision manufacturing, avoiding product contamination caused by fumes.
Ideal for small-batch welding operations such as hardware processing and sheet metal fabrication. No complex installation is required; plug-and-play, significantly reducing initial investment and space occupation, which is suitable for budget-constrained and space-limited enterprises.
We provide tailored customizable welding fume extraction equipment to meet diverse client needs:
Air volume customization: Adjust motor power and fan parameters to match welding workload (e.g., low air volume for small-scale welding, high air volume for heavy-duty operations).
Filter customization: Offer special filters for acid-resistant, high-temperature, or high-humidity environments based on welding materials (e.g., stainless steel, aluminum alloy).
Suction arm customization: Extend arm length (up to 4m) or add flexible joints for complex welding positions.
Mobile configuration customization: Equip with shock-absorbing wheels for uneven ground or explosion-proof motors for hazardous environments.
The engineering team provides on-site survey and scheme design, ensuring customized products adapt to specific production processes and workshop layouts.
Professional welding scenario adaptation: With in-depth understanding of metal fabrication processes, our products are optimized for welding fume characteristics, ensuring higher capture efficiency than general-purpose extractors.
Advanced manufacturing strength: Equipped with domestic leading production equipment and ISO9001 quality management system, ensuring product reliability and consistency.
Fast customization response: Support small-batch customization with a 15-day delivery cycle for standard customized products, meeting urgent production needs.
Comprehensive technical support: Provide pre-sales process consultation, in-sales installation guidance, and after-sales maintenance training, with a global after-sales network ensuring timely service.
Cost-saving solutions: Energy-efficient motor design reduces electricity consumption by 20% compared to similar products, and long-life filters lower replacement costs, creating long-term value for clients.
