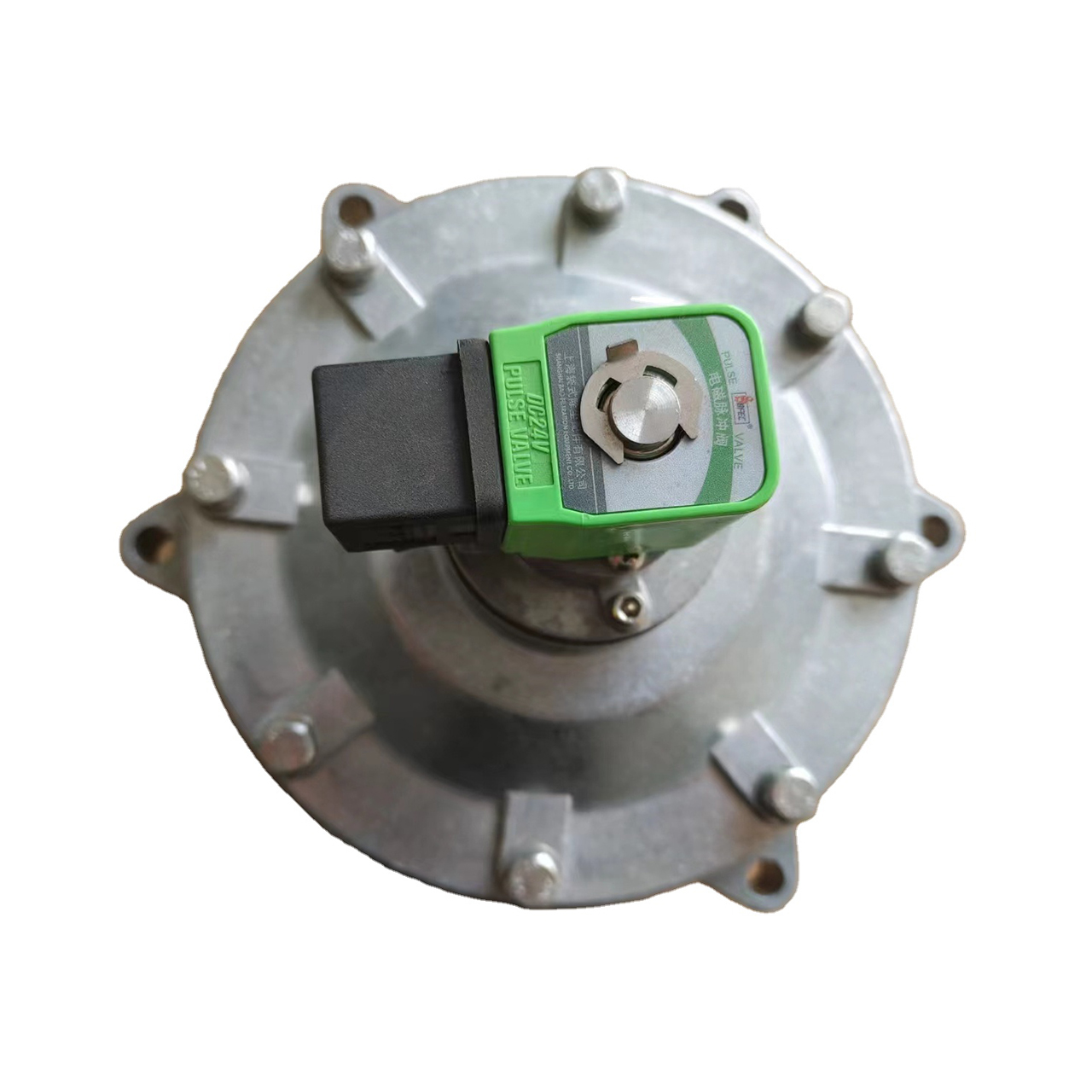

The Supersonic Airflow Industrial Dust Electromagnetic Pulse Valve serves as the critical heartbeat of modern industrial dust removal systems. Engineered to deliver a concussive, supersonic burst of air, this high-performance component instantly shears accumulated dust cakes away from filter media, rapidly restoring optimal air permeability. When handling the heavy, solid construction of the die-cast aluminum body, operators immediately recognize the precision engineering designed to withstand relentless industrial environments. Acting as the core actuation mechanism for pulse jet dust collectors, it ensures that filter bags and cartridges maintain peak filtration efficiency without manual intervention.
Developed with advanced fluid dynamics and precision electronics, this electromagnetic pulse valve eliminates the sluggish response times and weak air distribution common in legacy systems. The tactile, rust-proof finish and robust threading indicate a component built for longevity. Excelling in high-demand scenarios that require rapid actuation, minimized energy consumption, and a proven lifespan, it has become an indispensable asset for large-scale environmental control projects worldwide, ensuring facilities remain clean, compliant, and continuously operational.
At the center of this valve's performance is a specialized internal nozzle geometry that accelerates compressed air to supersonic velocities, reaching up to Mach 1.2. Unlike standard valves that produce a soft, diffuse blow, this technology delivers a sharp, acoustic snap—a targeted shockwave that penetrates deep into the fibers of the filter media. This aggressive yet controlled kinetic energy achieves a 95%+ dust removal efficiency per cycle, significantly reducing the frequency of cleaning intervals and optimizing the entire filtration infrastructure.
Time is critical in heavy dust load conditions. Engineered with a highly sensitive electromagnetic coil, the valve boasts a near-instantaneous response time of ≤0.03 seconds. You can hear the crisp, precise click of the diaphragm actuating, capable of sustaining high-frequency pulse cleaning at rates up to 60 pulses per minute. This rapid-fire capability prevents particulate bridging and blinding on the filters, ensuring stable, continuous operation even when the facility is processing maximum material volumes.
Operational overhead is directly tied to compressor usage. By maximizing the kinetic impact of the air, the supersonic design effectively cleans filters using lower operating pressures (0.3MPa - 0.6MPa). This translates to a measurable 30% reduction in compressed air consumption compared to conventional alternatives, delivering a rapid return on investment through reduced electrical loads on facility compressors. Furthermore, the internal flow path is acoustically optimized to keep operational noise levels at ≤75dB—producing a muffled, controlled release rather than a deafening blast, thereby improving the auditory comfort of the workplace.
Built to survive punishing environments, the valve body is constructed from heavy-duty die-cast aluminum alloy or premium 304 stainless steel. Every internal component undergoes a specialized rust-proof lubrication treatment, while the exterior features a smooth, moisture-repellent anti-corrosion coating. Before leaving the facility, each unit is subjected to rigorous sealing integrity tests and high-frequency fatigue simulations. This obsessive quality control guarantees absolute reliability in humid, chemically aggressive, or abrasive dust environments, ensuring a verified service life exceeding 10 million continuous pulses.
The following parameters represent the exact, tested capabilities of the Supersonic Airflow Electromagnetic Pulse Valve. These specifications are strictly maintained to ensure seamless integration into existing pneumatic systems, providing facility engineers with the precise data required for accurate system sizing, electrical matching, and long-term maintenance planning.
Specification | Parameter |
Working Voltage | AC220V/DC24V (Customizable) |
Response Time | ≤0.03s |
Operating Air Pressure | 0.3MPa - 0.6MPa |
Airflow Velocity | Up to Mach 1.2 |
Pulse Width | 0.01s - 0.2s (Adjustable) |
Material | Die-Cast Aluminum Alloy, Stainless Steel 304 |
Inlet/Outlet Interface | G1/2", G3/4", G1", DN20, DN25 |
Service Life | ≥10,000,000 Pulses |
Working Temperature | -20℃ - 80℃ |
Protection Grade | IP65 |

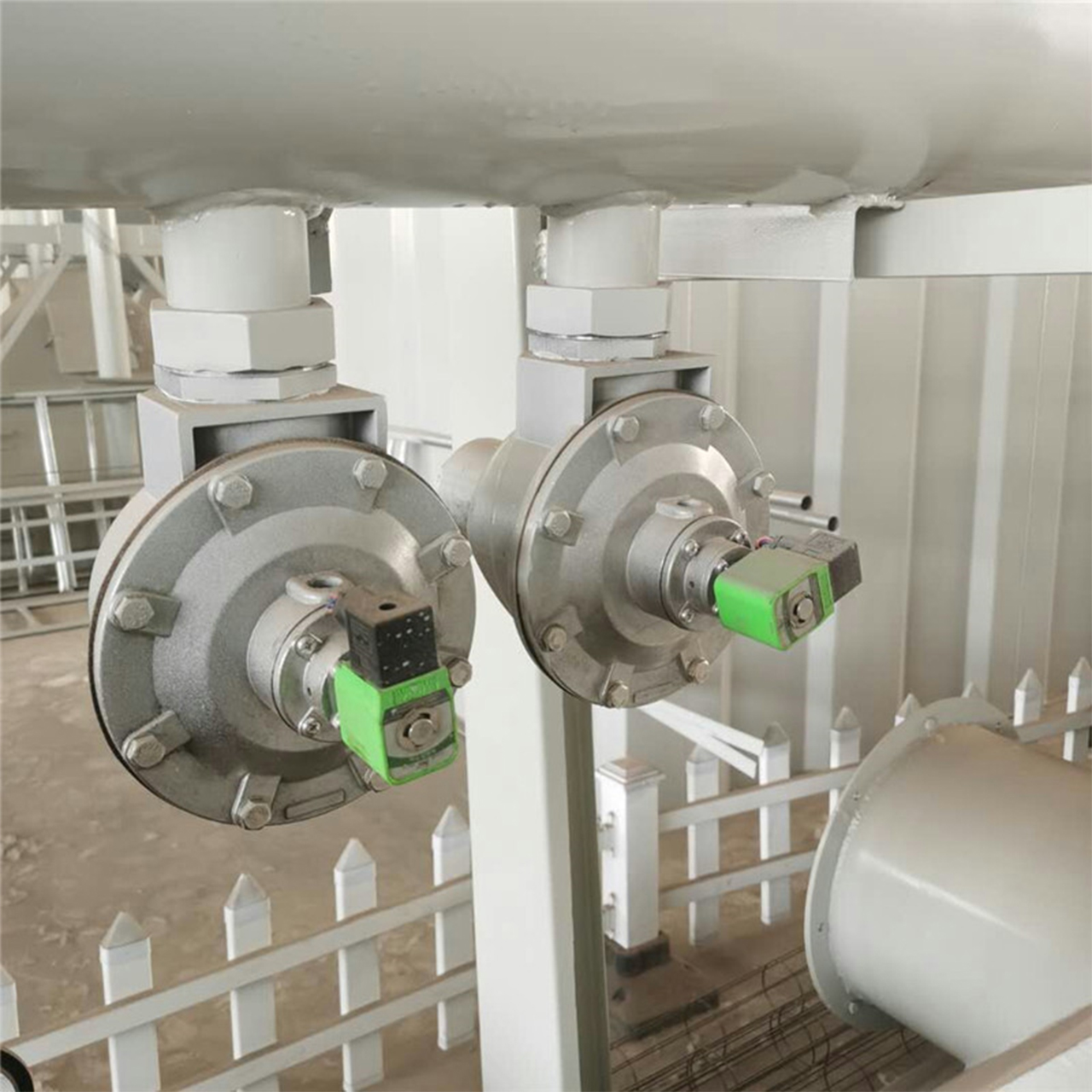

Perfect for heavy-duty baghouse dust collectors in the cement, chemical, and wood processing industries. In these environments, abrasive or sticky particulates quickly blind fabric filters. The supersonic pulse valve efficiently blasts through the fabric matrix, shedding the dust cake entirely, preventing clogging, and drastically extending the operational service life of expensive filter bags.
Widely utilized in metalworking, electronics manufacturing, and food processing plants. Pleated filter cartridges require highly targeted, evenly distributed airflow to clean deep within the pleats without tearing the media. This valve delivers precise kinetic force to maintain high air filtration efficiency for sub-micron fine dust, ensuring breathable air quality on the factory floor.
Acting as a complementary secondary cleaning stage to cyclone systems in coal-fired power plants and biomass boilers. While the cyclone removes heavy ash, the pulse valve clears residual, stubborn particulate matter from downstream filter elements, guaranteeing that the facility remains strictly compliant with stringent environmental emission standards.

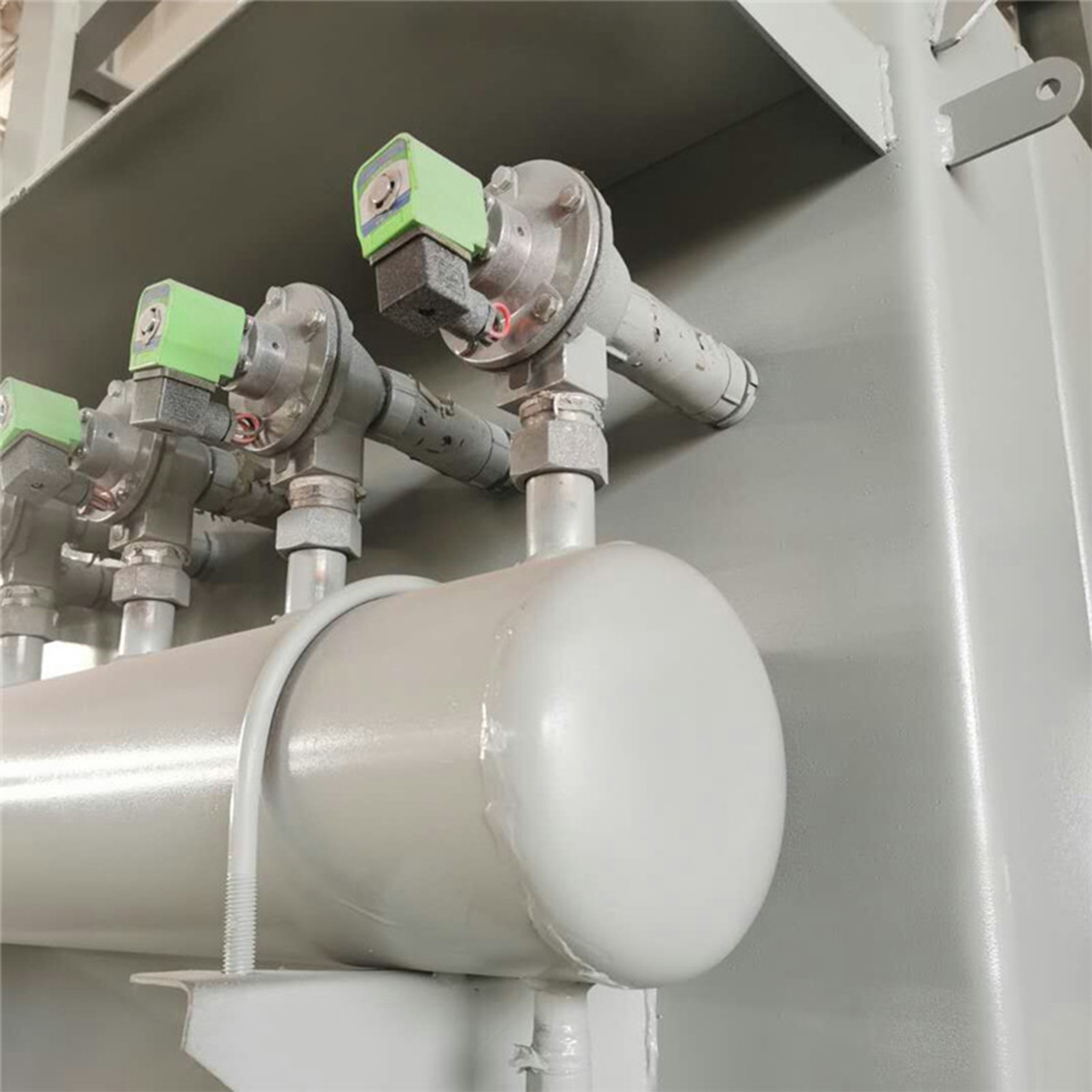

Adaptable to massive, centralized dust control networks spanning expansive factories, logistics warehouses, and mining sites. The standardized threading and predictable electrical draw support rapid modular installation, allowing engineers to scale up large dust removal projects without encountering cascading pressure drops or electrical faults.
We recognize that electrical grids and piping standards vary by region. We provide native support for AC110V, AC24V, and other specific voltage options to match your local power supply. Furthermore, the physical connection points can be customized with exact thread sizes (BSP, NPT) or specialized flange interfaces to seamlessly align with international piping standards including GB, JIS, and ANSI.
Different pollutants require different cleaning dynamics. Our engineering team can adjust the internal airflow velocity, pulse width duration, and optimal pressure ranges to perfectly fit your specific filter media (whether delicate fiberglass or rugged polyester) and the unique characteristics of the captured dust (accommodating variations in particle size, weight, and humidity).
For facilities dealing with combustible materials, safety is non-negotiable. We design specialized explosion-proof models featuring certified explosion-proof coils that comply with international industrial dust safety standards, ensuring absolute operational security in explosive dust zones. Additionally, compact structural variants are available for equipment with severely limited installation space.
To maximize the cleaning effect, we offer complete accessory packages including precision-engineered Venturi tubes and flow-directing nozzles. We collaborate directly with client engineering teams to seamlessly integrate the valve's actuation with centralized PLC control systems, enabling fully automated, sensor-driven cleaning cycles and real-time remote performance monitoring.
To ensure a frictionless transition from procurement to active operation, we have structured our delivery and maintenance protocols around minimizing facility downtime and maximizing long-term reliability.
Weld-Free Modular Installation: The valve features a smart, modular structural design that supports rapid, weld-free assembly and disassembly. This straightforward mechanical connection drastically reduces on-site installation costs and cuts system maintenance downtime to an absolute minimum.
Global Industrial Packaging: Every unit is secured in heavy-duty, industrial-grade shockproof packaging explicitly designed to withstand the rigors of international long-haul transit, ensuring the precision components arrive at your facility in pristine condition.
Comprehensive After-Sales Assurance: We back our hardware with expert technical selection guidance prior to purchase, a rapid global spare parts supply chain, and a comprehensive warranty service to protect your operational investment.
