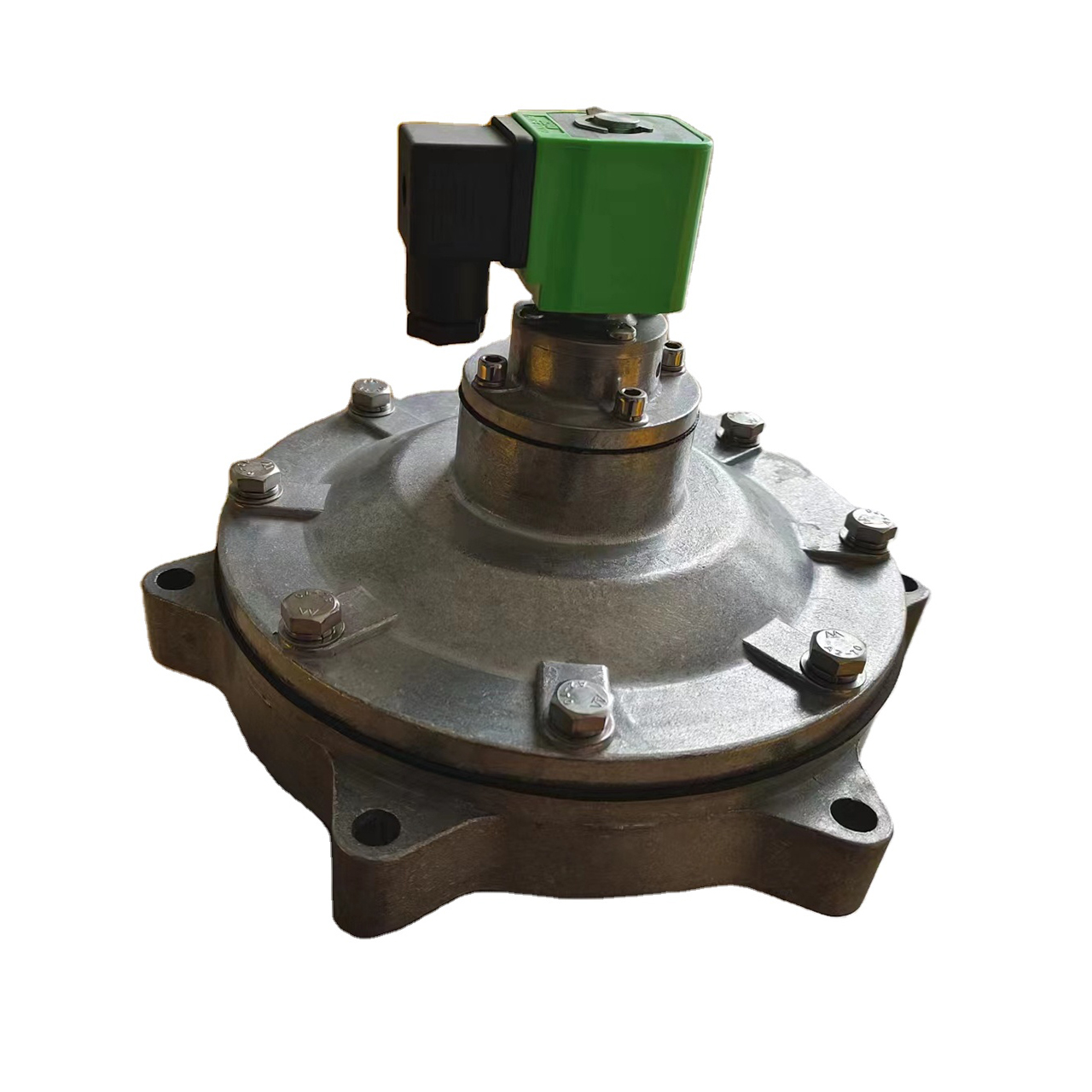

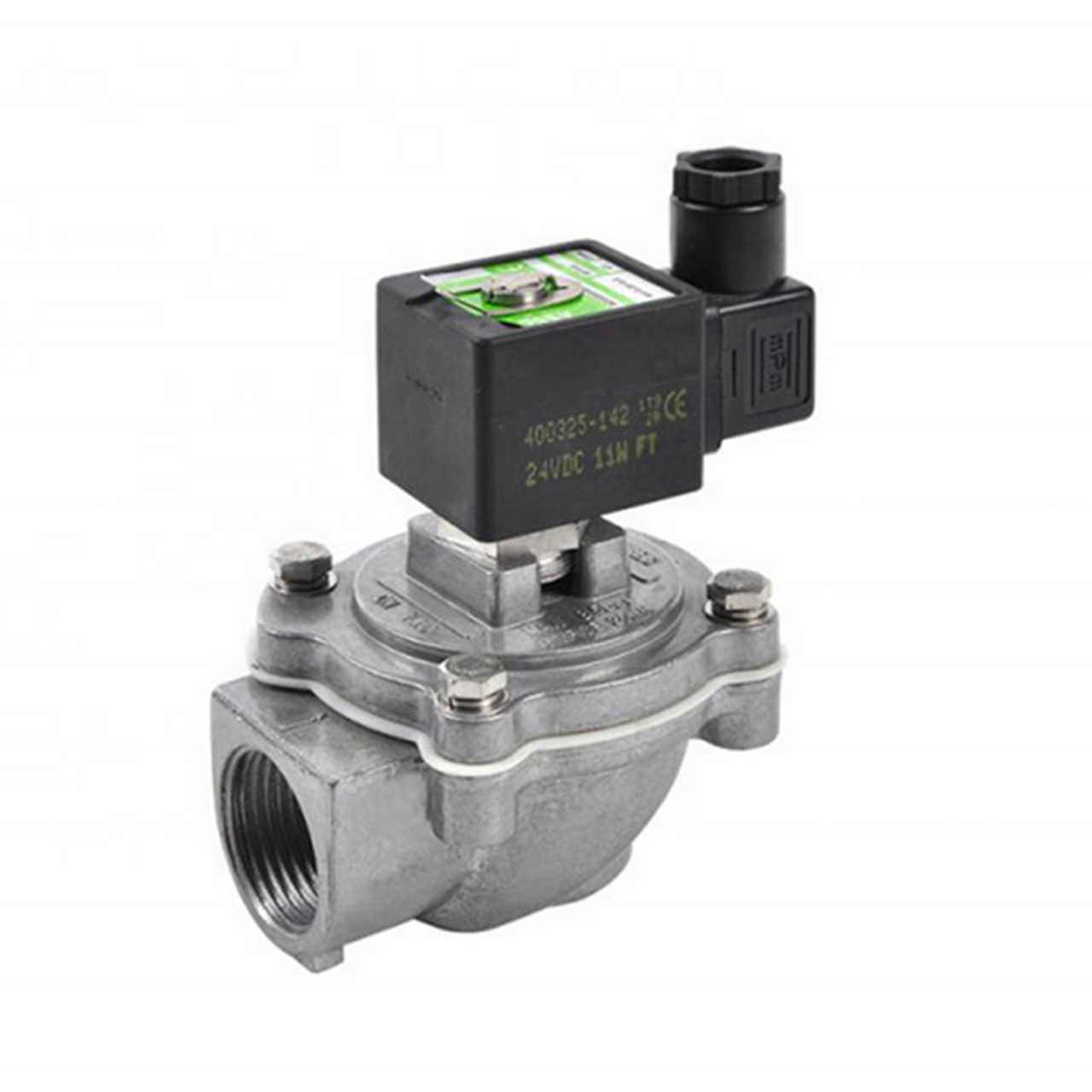

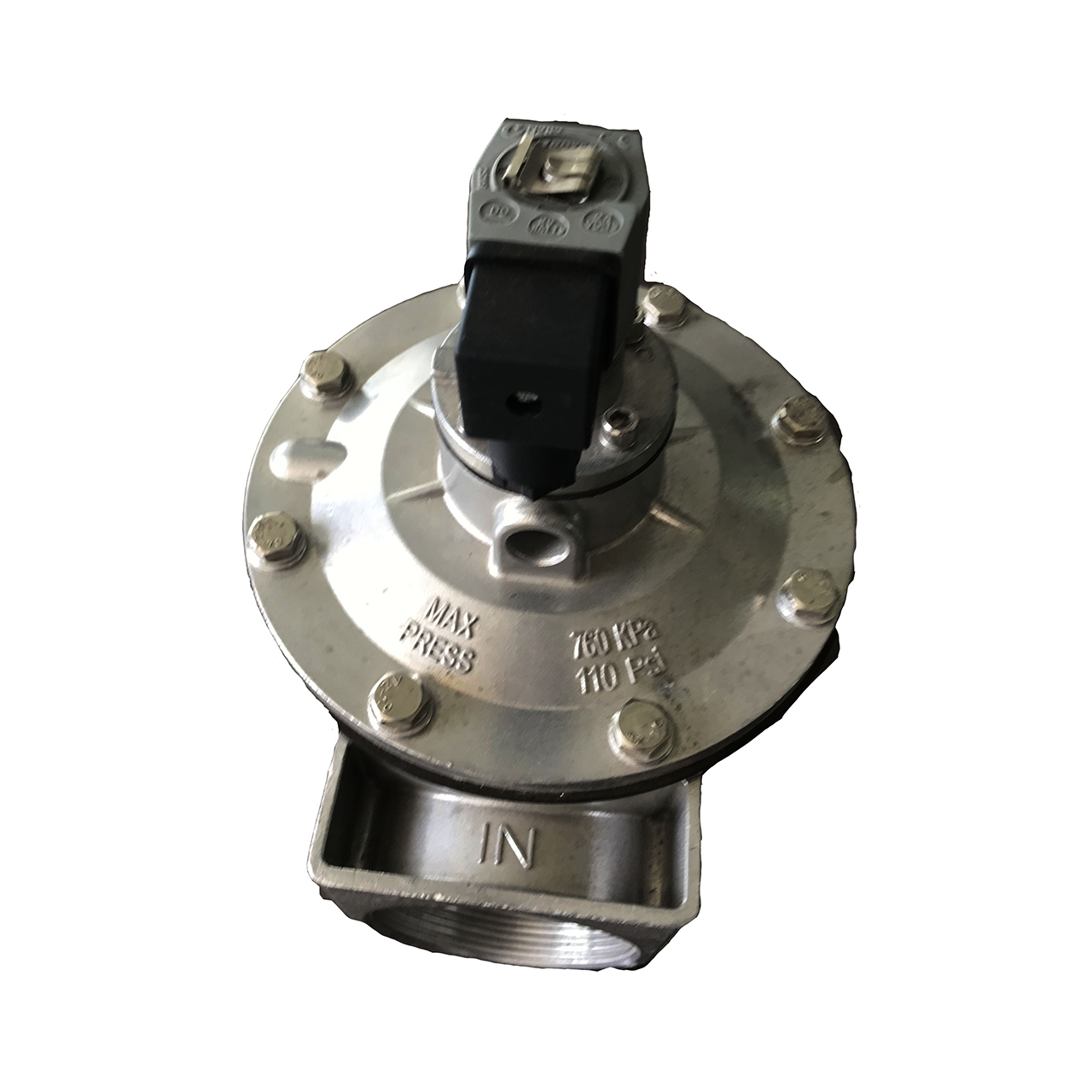

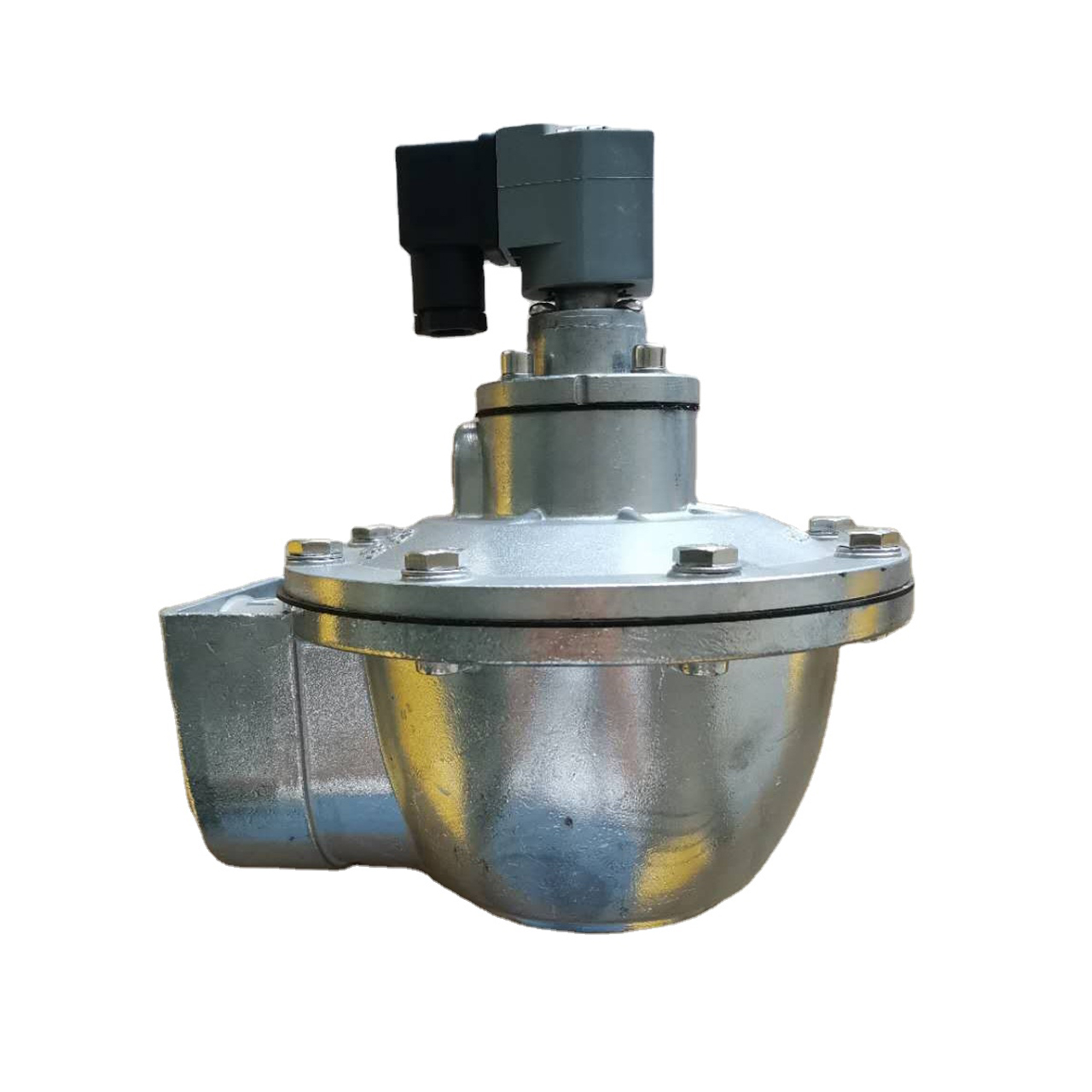

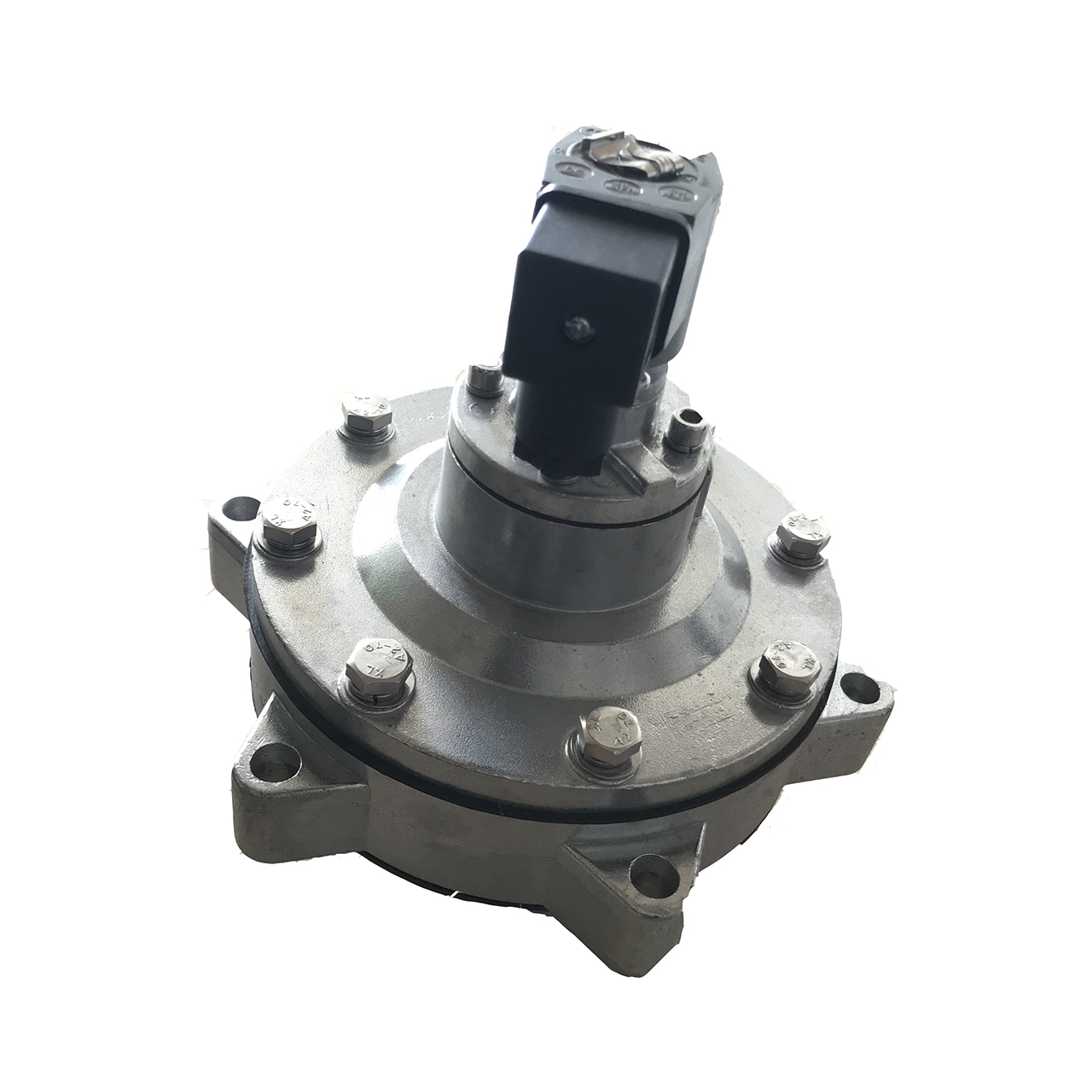

The Fast-Response Electromagnetic Pulse Valve is a critical component for dust cleaning systems in industrial dust collectors, developed by Botou Xintian Environmental Protection Equipment Co., Ltd. to meet the high-frequency and high-precision cleaning demands of customers. This valve features an ultra-fast response time (≤10ms) and stable performance, ensuring efficient ash removal from filter bags or filter cartridges, thereby maintaining the dust collector's airflow capacity and filtration efficiency.
| Quantity: | |
|---|---|
As a High-Precision Pulse Valve for Baghouse Dust Collectors, the product adopts advanced electromagnetic drive technology and precision machining processes, complying with international standards such as GB/T and ISO. Its compact structure and corrosion-resistant design make it suitable for various harsh industrial environments, including high dust concentration, high temperature, and humidity. For dust collector manufacturers and industrial enterprises seeking reliable cleaning solutions, this electromagnetic pulse valve delivers consistent performance and long service life, reducing maintenance frequency and operational costs.
Equipped with a high-performance electromagnetic coil and optimized valve core structure, the valve achieves a response time of ≤10ms, enabling high-frequency pulse jet cleaning (up to 60 cycles per minute). This ensures thorough cleaning of filter media without causing damage, significantly improving the dust collector's handling capacity and filtration efficiency.
The valve body is made of high-quality aluminum alloy or stainless steel (304/316L) through precision casting and CNC machining. The internal sealing components adopt imported fluororubber, resisting high temperature (≤120℃), corrosion, and wear. The Corrosion-Resistant Electromagnetic Pulse Valve maintains stable performance even in acidic, alkaline, or high-humidity environments, with a service life of over 1 million cycles.
Designed to operate within a pressure range of 0.2-0.6MPa, the valve is compatible with various air compressor systems. Its low power consumption design (≤15W) reduces energy waste, while the optimized airflow channel minimizes pressure loss, ensuring sufficient jet force with minimal compressed air usage.
Item | Specification |
Response Time | ≤10ms |
Working Pressure Range | 0.2-0.6MPa |
Rated Voltage | DC24V / AC220V (Customizable) |
Power Consumption | ≤15W |
Working Temperature Range | -20℃ to 120℃ |
Valve Body Material | Aluminum Alloy / 304 Stainless Steel / 316L Stainless Steel |
Sealing Material | Fluororubber |
Service Life | ≥1,000,000 Cycles |
Interface Size | G1/2", G3/4", G1" (Customizable) |
Installation Type | Threaded Connection / Flange Connection |
Widely used in baghouse dust collectors for cement, steel, coal, and chemical industries. The fast response and high jet force effectively remove dust adhering to filter bags, extending bag service life and maintaining stable airflow.
Suitable for high-temperature cyclone dust collectors in power plants, metallurgical furnaces, and boiler systems. The corrosion-resistant design adapts to harsh flue gas conditions, ensuring reliable cleaning performance.
Ideal for pulse cleaning systems in electrostatic-bag composite dust collectors, complementing the electrostatic precipitation function and achieving ultra-low emission standards (dust concentration ≤10mg/m³).
According to the dust collector's cleaning frequency and filter media characteristics, we adjust the electromagnetic coil parameters and valve core structure to achieve customized response times (5ms-20ms) and jet durations.'
For high-temperature (≤200℃) or highly corrosive applications, we offer high-temperature resistant materials (such as Inconel alloy) and enhanced sealing components to ensure long-term stable operation.
We provide customized interface sizes (from G1/4" to G2") and installation methods (threaded, flange, or quick-connect) to match the customer's dust collector design and assembly requirements.
Lean Manufacturing Expertise: As a professional manufacturer of industrial automation components, we utilize three-dimensional flexible combination tooling and precision machining equipment to ensure consistent product quality.
R&D Capability: Our engineering team specializes in electromagnetic pulse valve technology, continuously optimizing product performance and developing customized solutions for specific industrial needs.
Strict Quality Control: Each valve undergoes 100% pressure testing and performance inspection before delivery, complying with ISO9001 quality management system standards.
Efficient Supply Chain & Logistics: Leveraging our geographical advantage in Siying Industrial Zone with developed transportation, we ensure fast delivery and stable supply for bulk orders.
Comprehensive After-Sales Support: We provide technical documentation, installation guidance, and 12-month warranty service. Our after-sales team responds to customer inquiries within 24 hours, minimizing downtime for dust collector operations.
