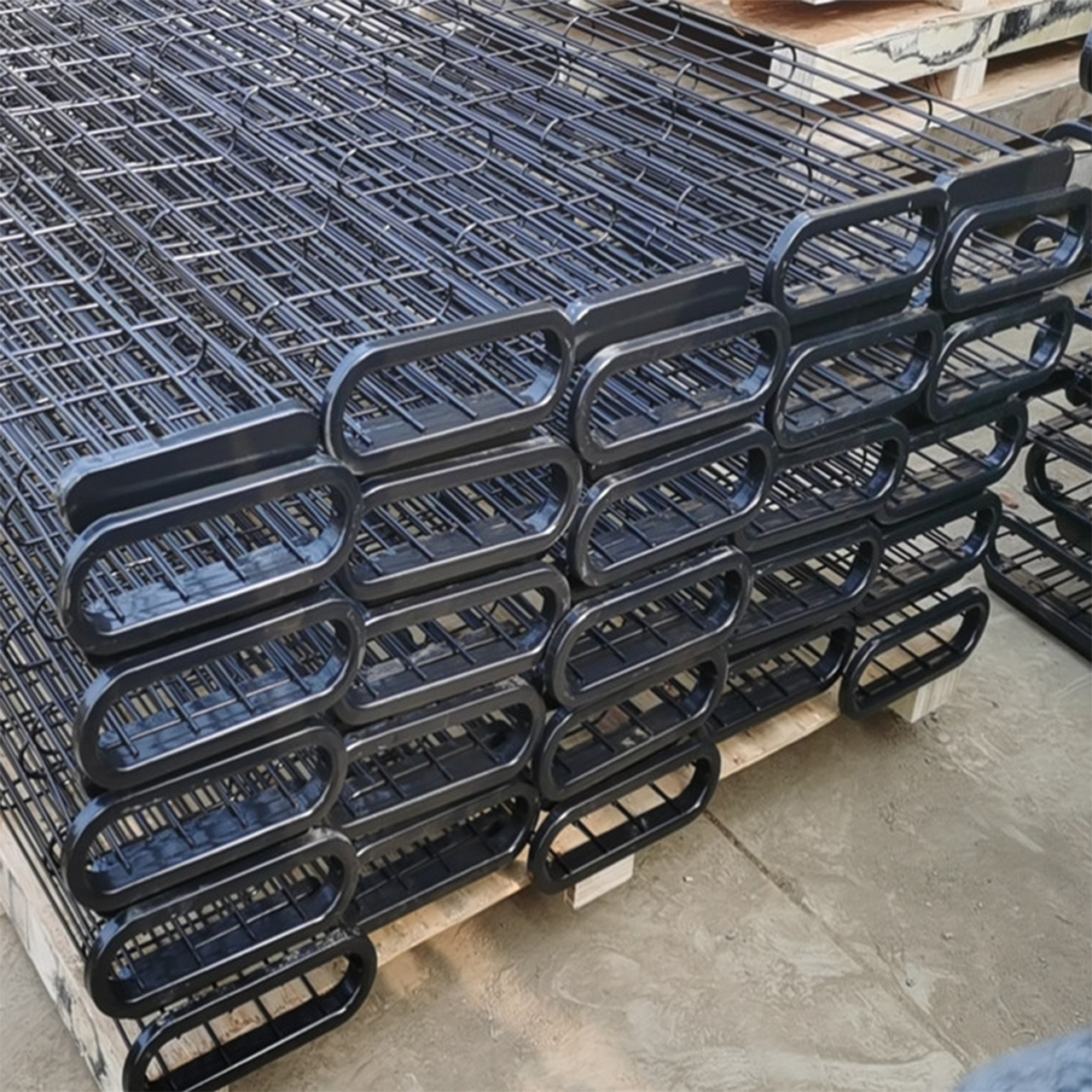

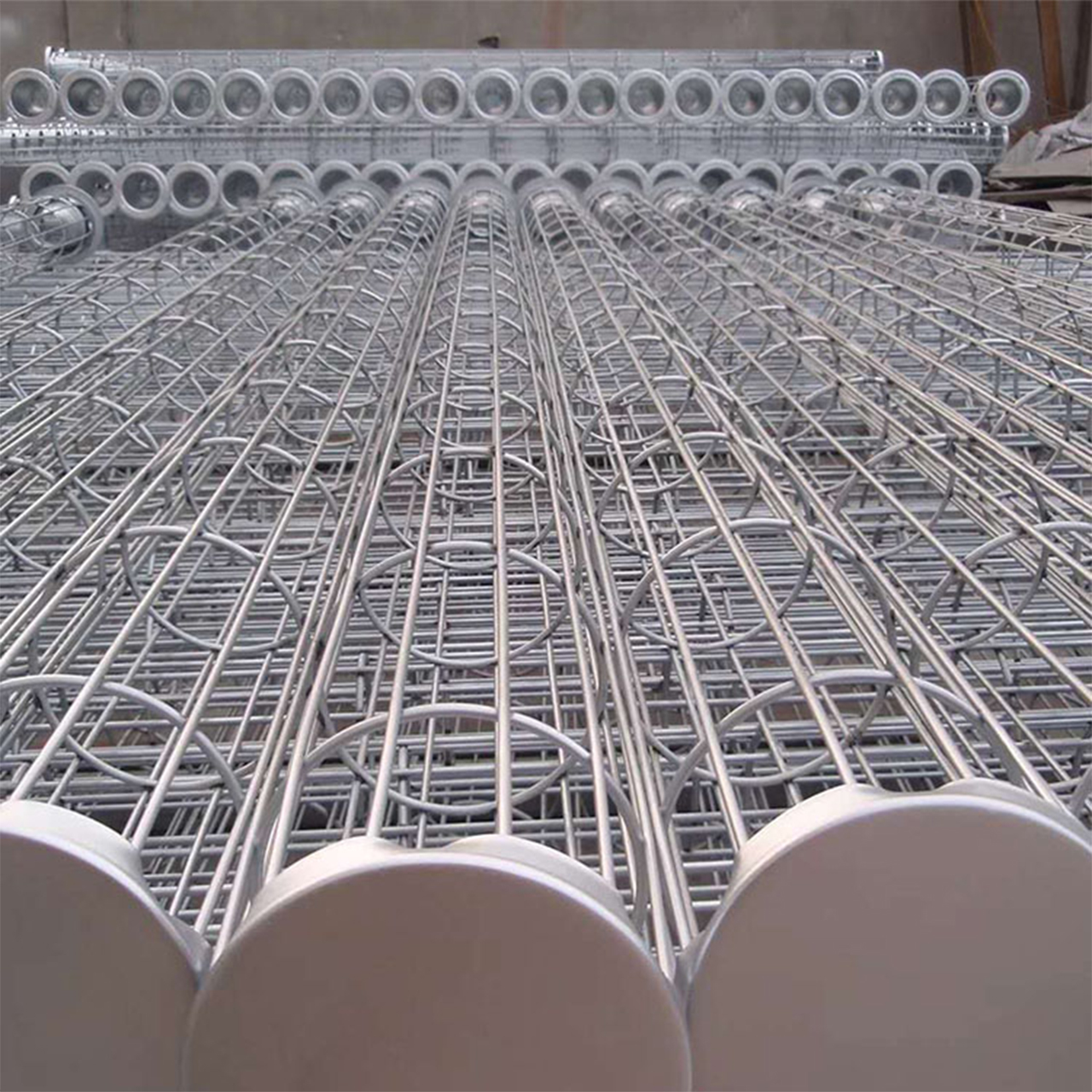

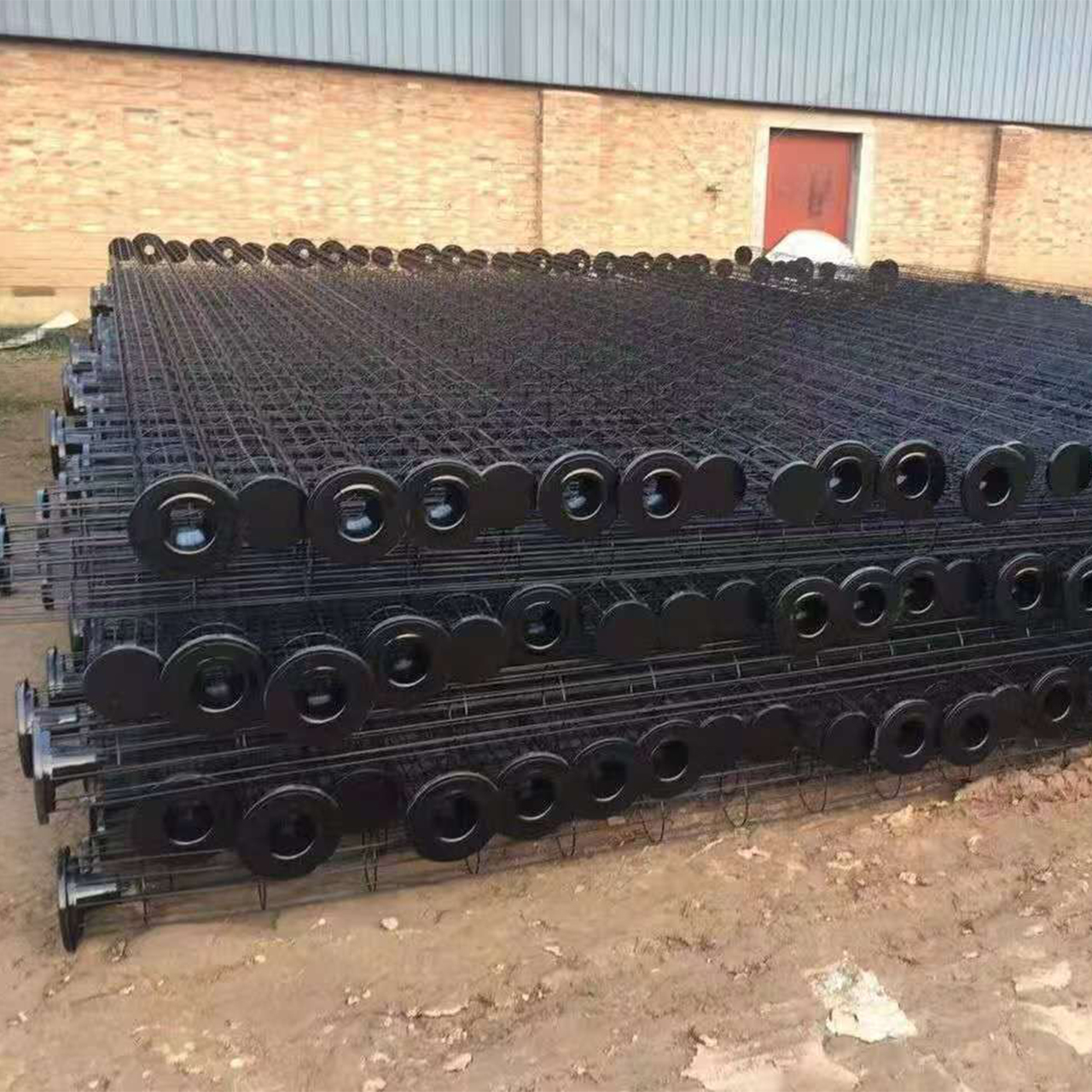

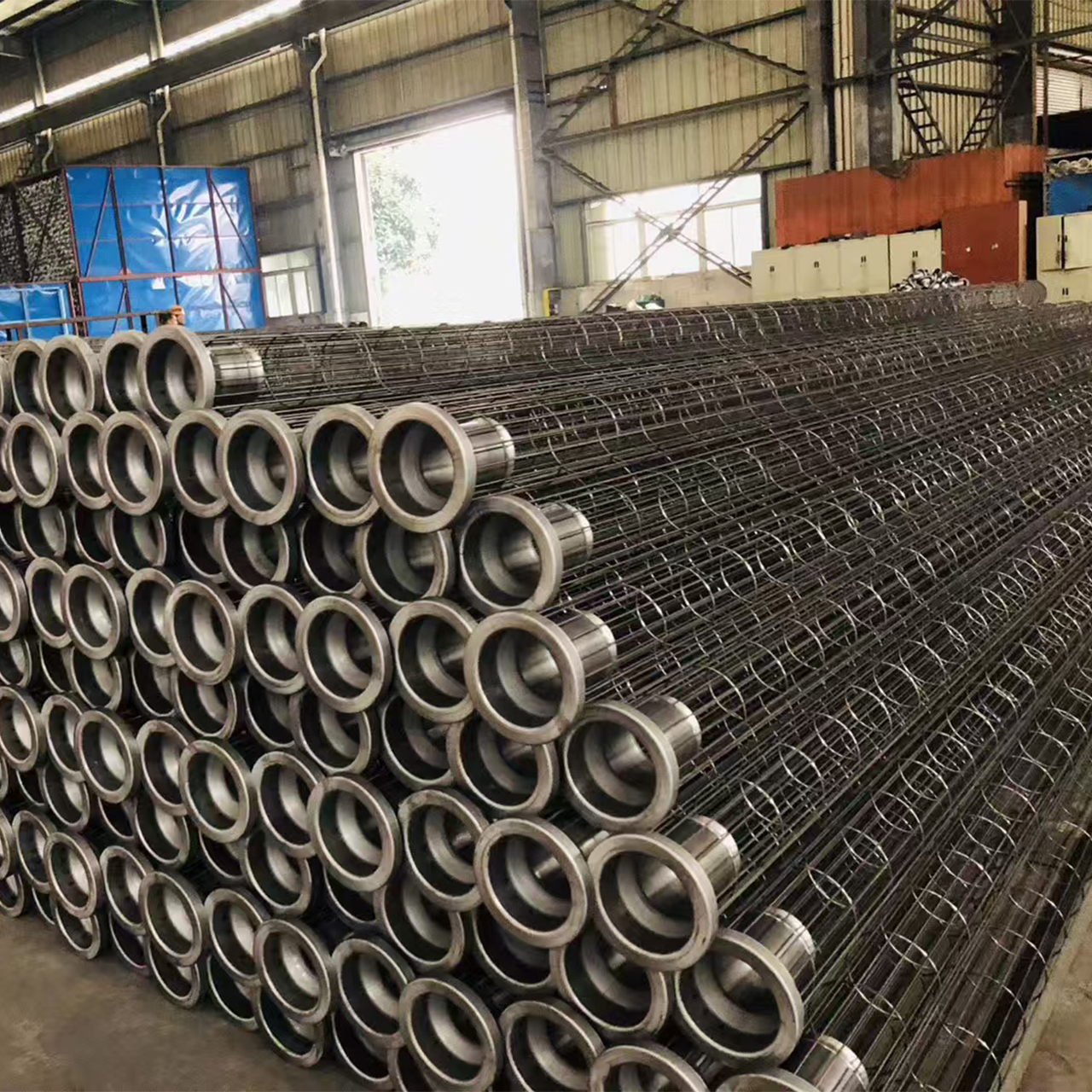

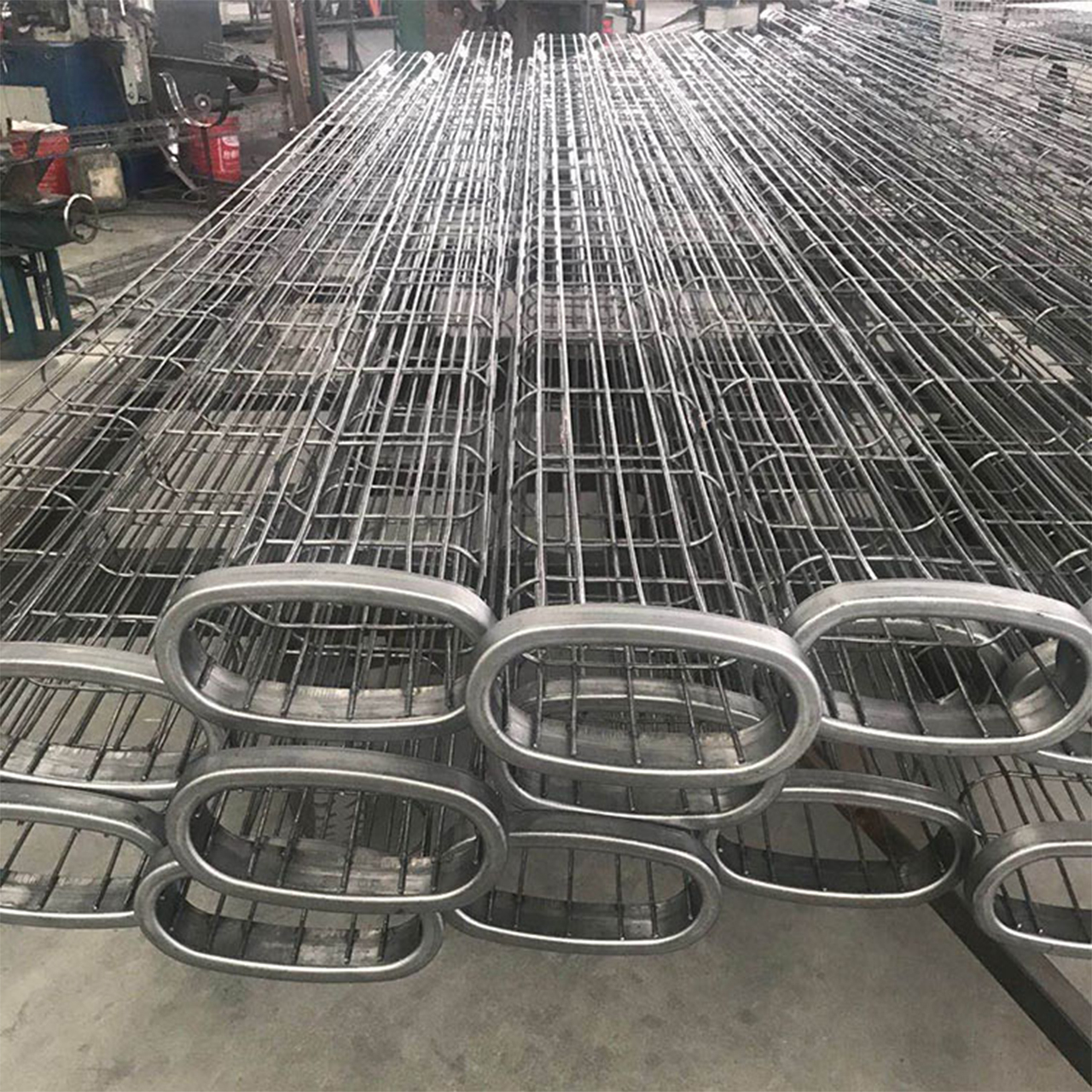

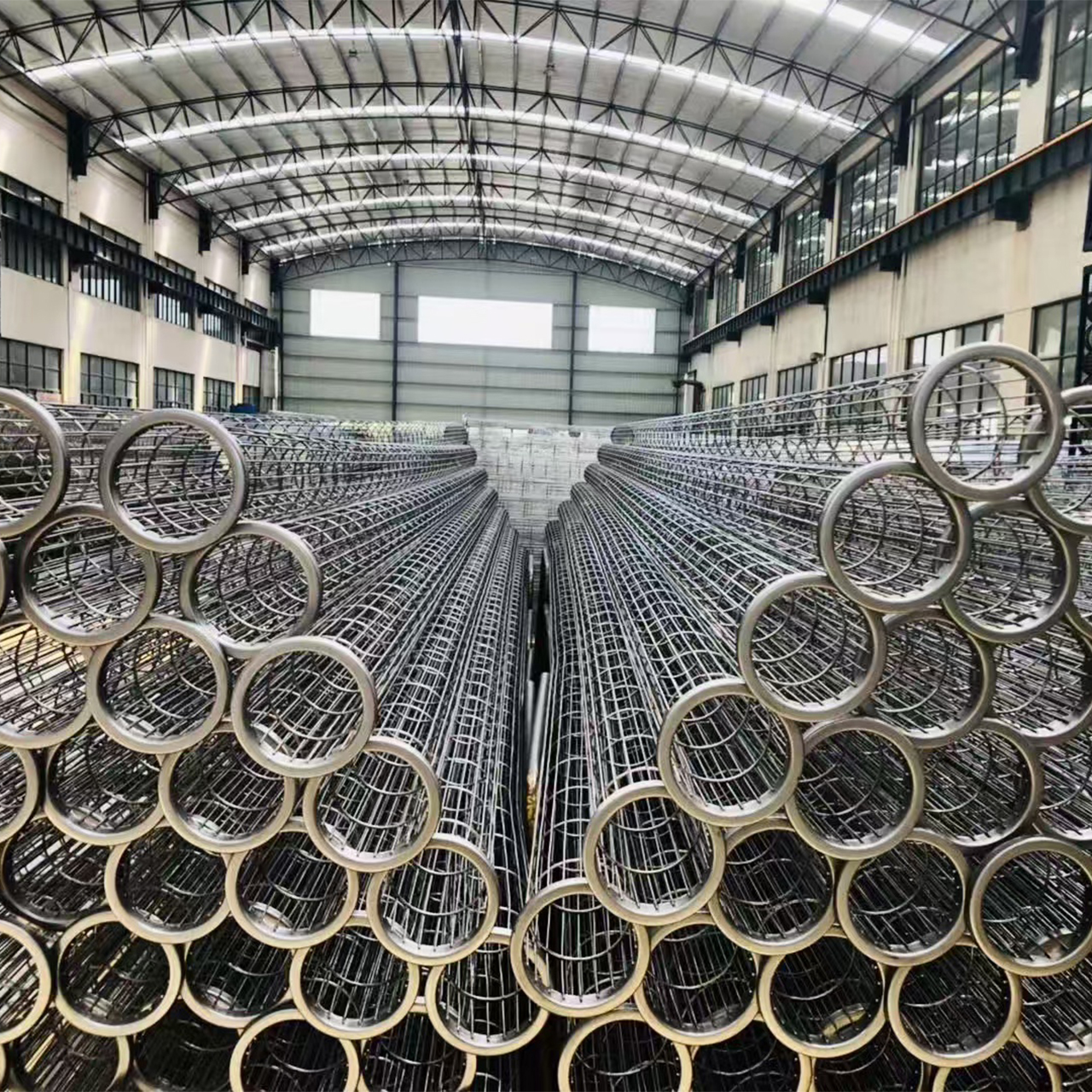

The Precision-Welded Industrial Dust Filter Cage serves as the essential structural backbone for baghouse dust collectors, meticulously engineered to maintain filter bag integrity and ensure uninterrupted filtration cycles. Manufactured by Botou Xintian Environmental Protection Equipment Co., Ltd.—a recognized facility renowned for lean production utilizing advanced 3D flexible tooling—this cage relies on automated robotic welding and a rigorous nitriding oxidation process. The result is a highly precise, exceptionally durable framework that actively resists severe chemical corrosion and mechanical stress. As a critical component for industrial pulse jet systems, it prevents filter media from collapsing under intense negative pressure, thereby dramatically extending the operational lifespan of the bags. Designed to support heavy-duty extraction in manufacturing, mineral processing, and environmental protection facilities, this framework guarantees consistent airflow distribution, minimizes pressure drops, and significantly cuts down on unplanned maintenance downtime.
Utilizing automated robotic welding workstations paired with 3D flexible combination fixtures, every filter cage achieves an exacting welding tolerance of ±0.1mm. This precise manufacturing guarantees uniform spacing across all vertical wires and rigid horizontal support rings. Such structural consistency ensures the filter bag maintains its optimal cylindrical shape during aggressive pulse-jet cleaning cycles, eliminating the risk of dust leakage caused by media collapse or misalignment. Furthermore, the completely seamless, burr-free weld joints prevent any mechanical abrasion against the inner fabric of the filter bag. To guarantee structural integrity under continuous high-pressure environments, our production protocol incorporates ongoing destructive testing and strict tolerance monitoring. This rigorous quality control ensures zero weld detachment, extending the filter bag's service life by up to 50% compared to frameworks produced through conventional manual welding.
Industrial exhaust environments often expose equipment to harsh chemical compounds and extreme moisture. To combat this, all framework components undergo a specialized nitriding oxidation treatment. This process creates a dense, impenetrable protective layer that actively resists moisture penetration, aggressive chemical corrosion, and high-temperature oxidation. Beyond this chemical barrier, the exterior is treated with a specialized rust-proof lubricant coating. This smooth finish not only enhances the visual and tactile sleekness of the metal but significantly reduces surface friction between the rigid cage and the flexible filter bag during installation and active operation. Such comprehensive surface engineering guarantees reliable, long-lasting performance even in the most unforgiving industrial atmospheres, including chemical processing plants, cement kilns, and municipal waste incineration facilities where acidic gases are prevalent.
Engineered for universal adaptability, this durable framework matches both standard and non-standard filter bag profiles with exacting diameter and height specifications. The reinforced top and bottom flanges significantly enhance the vertical load-bearing capacity, while the streamlined, lightweight steel structure minimizes internal airflow resistance to optimize the dust collector’s overall volumetric efficiency. Recognizing the diverse nature of filtration media, we have optimized this cage to provide customized rigid support for various materials, including heavy-duty polyester needle felt, delicate fiberglass, and advanced PTFE membranes. By matching the specific tension requirements of these fabrics, the cage effectively prevents excessive flexing and bending fatigue during pulse cleaning. This tailored support mechanism eliminates premature wear, prevents media rupture, and ensures a tight, secure fit that maximizes the collection efficiency of your entire system.
The following technical parameters outline the standard configurations of our precision-welded frameworks. Each specification is carefully calibrated to balance structural rigidity with optimal airflow dynamics, ensuring reliable integration into heavy-duty filtration systems.
Model | Material | Diameter (mm) | Height (mm) | Wire Diameter (mm) | Welding Precision (mm) | Anti-Corrosion Treatment |
XTHB-FC120 | Q235 Steel/304 Stainless Steel | 120 | 1500-6000 | 2.5/3.0 | ±0.1 | Nitriding Oxidation + Rust-Proof Coating |
XTHB-FC160 | Q235 Steel/316 Stainless Steel | 160 | 1500-8000 | 3.0/3.5 | ±0.1 | Nitriding Oxidation + Rust-Proof Coating |
XTHB-FC200 | 304/316 Stainless Steel | 200 | 2000-10000 | 3.5/4.0 | ±0.1 | Nitriding Oxidation + Rust-Proof Coating |
This framework integrates flawlessly with high-capacity pulse jet bag dust collectors across heavy industries such as construction machinery manufacturing, metallurgy, and building materials production. In demanding environments like truck frame welding workshops and large-scale structural component assembly lines, the cage provides unwavering support against continuous heavy particulate loads. By maintaining optimal bag tension, it ensures maximum dust capture efficiency, protecting both the workforce and sensitive machinery from abrasive airborne particulates.
Cleanliness and contamination control are paramount in processing sectors. This framework is extensively deployed in food processing equipment, mineral water bottling plants, and sensitive chemical processing facilities. When specified as a custom metal filter cage constructed from food-grade stainless steel, it strictly adheres to rigorous hygiene and sanitation requirements. The smooth, non-reactive surface prevents particulate buildup and cross-contamination, ensuring that clean production environments remain entirely free from fugitive dust and metallic degradation.
For facilities looking to modernize their existing infrastructure, this cage serves as the ideal drop-in replacement for retrofitting aging dust collectors in municipal waste treatment plants and large-scale power generation stations. The combination of exact dimensional tolerances and superior material durability instantly improves the filtration efficiency of older units. By upgrading to these advanced frameworks, plant operators can significantly lower their emission levels, achieve strict environmental regulatory compliance, and realize measurable energy savings through reduced compressed air consumption during cleaning cycles.
We recognize that no two filtration systems are identical. Based on specific filter bag dimensions and collector housing designs, we offer fully customized configurations to perfectly match your operational needs:
Wire Configurations: Select from 10, 12, or 20 vertical wires paired with various wire gauges (9 to 11 Gauge) to match the tension requirements of anything from thick felt to fragile fiberglass.
Top Mounting Options: Choose between T-flanges, rolled flanges, and U-grooves for secure upper attachment.
Bottom Assemblies: Available with split rings, open collars, and a choice of welded or crimped bottom caps to ensure seamless installation and maintenance.
Extreme industrial environments characterized by soaring temperatures and highly corrosive gas streams demand specialized material defenses. For these severe applications, we offer customized surface treatments beyond standard oxidation, including heavy-duty electroplating, hot-dip galvanizing, and non-stick PTFE (Teflon) coatings. Material selection is equally flexible, with options encompassing standard carbon steel, robust 304 or 316 stainless steel, and specialized alloy steels. This tailored approach to metallurgy and surface chemistry guarantees long-term structural reliability, preventing premature cage failure and protecting your filtration investment in the harshest operating conditions.
To further optimize system performance, we offer the integration of advanced functional components tailored to your specific operational challenges:
Venturi Tube Integration: Available in aluminum, carbon steel, or stainless steel (3-inch or 6-inch lengths) to drastically improve pulse-jet airflow distribution and maximize cleaning efficiency.
Moisture Control: Specialized drainage holes designed for environments handling humid or sticky particulate streams.
Explosion Prevention: Integrated anti-static grounding wires tailored for combustible dust environments.
Rapid Installation: Precision positioning pins that facilitate error-free alignment during major maintenance overhauls.
Transporting large, precision-welded frameworks requires specialized logistics to prevent structural distortion. We utilize customized, heavy-duty wooden crates and professional anti-extrusion packaging protocols. This meticulous approach ensures that even the largest bulk orders of oversized filter cages remain entirely deformation-free and structurally intact during long-haul domestic or international transit, arriving at your facility ready for immediate deployment.
When a facility requires urgent maintenance, extended downtime is not an option. Relying on our fully automated robotic welding production lines, we possess the manufacturing capacity to execute rapid turnaround times for both standard and custom cage orders. This streamlined production capability significantly shortens the waiting period for critical replacement parts, allowing plant managers to execute filter bag changeouts swiftly and restore full operational capacity with minimal disruption to the production schedule.
