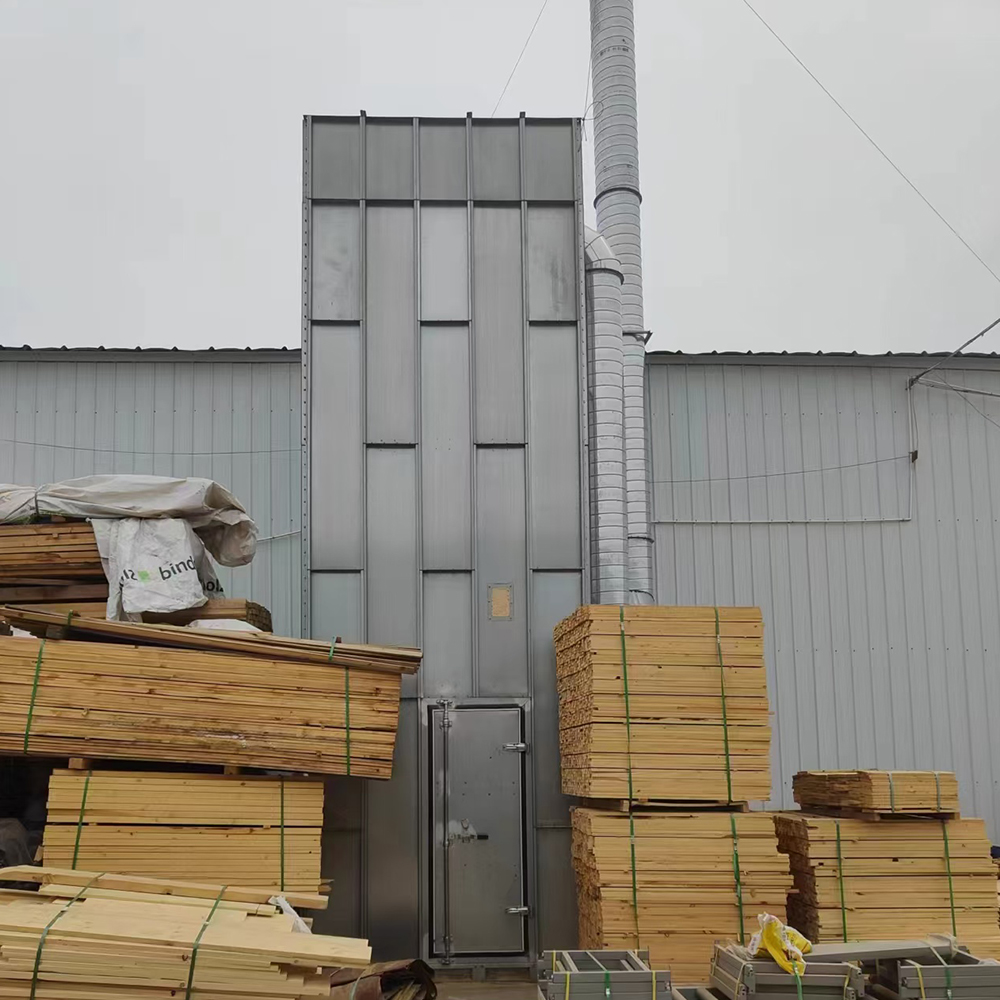

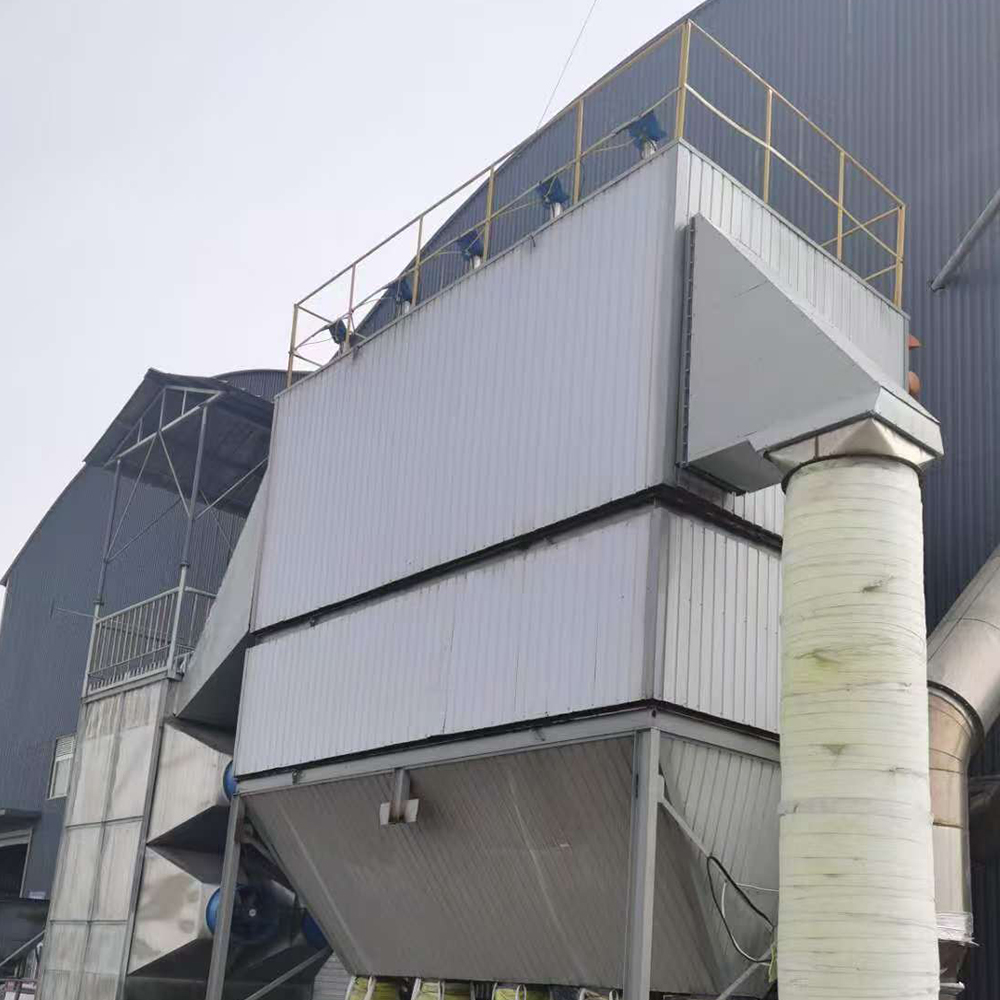

Engineered by Botou Xintian Environmental Protection Equipment Co., Ltd.—an ISO9001-certified manufacturing facility—this industrial pulse jet bag dust collector represents a highly efficient filtration solution for demanding production environments. Stepping onto the factory floor, operators immediately notice the quiet, muffled hum of its enclosed operation and the thick, rigid feel of its heavy-gauge steel casing. By utilizing advanced robotic welding workstations and 3D flexible combination tooling, the structural integrity of the main cabinet remains uncompromised even under continuous, heavy vibration. Designed to capture and separate airborne particulates from complex exhaust streams, the unit achieves a filtration efficiency exceeding 99.9%. Whether your facility struggles with fine machining dust or heavy, abrasive particles from construction materials, this system delivers consistent environmental compliance. It effectively optimizes your operational workflow by minimizing energy consumption and significantly reducing the frequency of manual interventions required for ash removal.
The operational logic of this dust collector relies on a highly calibrated two-stage filtration and cleaning mechanism. As dust-laden exhaust enters the chamber, an integrated deflector plate immediately forces heavier particles to drop into the hopper. This critical pre-filtration step prevents abrasive damage to the core filter components and significantly lightens the overall filtration load. Finer particulates then travel upward, where they are captured by the filter bags. To maintain continuous production without offline downtime, the system utilizes a millisecond-level pulse jet cleaning mechanism. Compressed air fires through optimized nozzles, creating a shockwave that knocks the accumulated dust cake off the bags. Paired with an intelligent frequency conversion control system, the unit adjusts its fan speed based on real-time particulate concentration, reducing energy consumption by up to 30% compared to conventional continuous-run models.
Industrial environments demand equipment that can withstand constant vibration, temperature fluctuations, and corrosive elements. The main body of this collector is fabricated using automated robotic welding technology alongside 3D flexible combination fixtures. This manufacturing approach guarantees deep-penetration, flawless weld seams that prevent any microscopic air leaks. Running a hand along the exterior reveals a smooth, hardened finish—the result of a specialized nitriding oxidation treatment. This surface coating actively repels chemical corrosion and extends the physical lifespan of the cabinet in harsh atmospheres. Furthermore, the reinforced base structure and modular frame increase the overall load-bearing capacity, ensuring the unit remains entirely stable during long-term, heavy-duty operation.
Managing industrial filtration should not require constant manual oversight. This unit features a built-in PLC automation system that offers dual operational modes to match your specific daily demands:
Timed Cycle Mode: Executes cleaning sequences at standardized intervals for consistent, predictable exhaust streams.
Differential Pressure (ΔP) On-Demand Trigger: Initiates the pulse jet sequence only when airflow resistance reaches a specific threshold, drastically minimizing compressed air waste.
From a financial perspective, this intelligent control extends the lifespan of the core filter bags to an average of 3 to 5 years, providing facility managers with a clear, predictable return on investment (ROI). When replacements are eventually needed, the quick-release bag mechanism allows technicians to swap filters rapidly without specialized tools, keeping maintenance downtime to an absolute minimum.
Proper equipment sizing is critical for maximizing filtration performance and minimizing capital expenditure. When evaluating the models below, consider your facility's total required air volume (m³/h), the specific dust concentration of your exhaust stream, and the physical footprint available for installation. For instance, the XTHB-P200 is highly effective for localized extraction points, while the XTHB-P1000 provides the massive volumetric capacity required for centralized plant-wide dust control. By aligning your operational parameters with the correct filtration area and pulse jet pressure, you ensure optimal airflow dynamics and prevent premature filter wear. Review the precise technical specifications in the chart below to lock in the most cost-effective configuration for your specific environmental demands.
Model | Filtration Area (m²) | Pulse Jet Pressure (MPa) | Air Volume (m³/h) | Filter Bag Material | Working Temperature (℃) | Installation Type |
XTHB-P200 | 200 | 0.4-0.6 | 12,000-18,000 | Polyester Needle Felt/PTFE | -20~120 | Indoor/Outdoor |
XTHB-P500 | 500 | 0.4-0.6 | 30,000-45,000 | Polyester Needle Felt/PTFE | -20~120 | Indoor/Outdoor |
XTHB-P1000 | 1000 | 0.5-0.7 | 60,000-90,000 | PTFE/Glass Fiber | -20~200 | Indoor/Outdoor |
Facilities engaged in metallurgy, mining, and heavy machinery manufacturing generate massive volumes of abrasive and potentially volatile particulates. This dust collector efficiently captures emissions from loading truck boom welding, large structural component assembly, and primary ore crushing operations. For environments dealing with combustible materials, the system can be fully customized to meet strict ATEX explosion-proof standards. Optional safety integrations include specialized explosion relief panels, highly sensitive spark detection sensors, and automated fire suppression systems. These additions provide comprehensive operational security in highly volatile industrial zones, ensuring that your workforce remains protected while maintaining continuous production schedules.
In sectors where product purity is paramount—such as food processing, mineral water bottling, and electronic component assembly—airborne contamination can lead to costly product rejections. This filtration system operates with a surprisingly low acoustic footprint, eliminating the disruptive noise typical of heavy industrial extractors. By utilizing food-grade filter media and maintaining a strictly sealed external cabinet, it actively prevents particulate cross-contamination. The stable, continuous extraction ensures that your clean room or processing line maintains strict compliance with hygiene and air quality regulations, safeguarding your final product integrity from microscopic airborne pollutants.
Municipal waste incineration plants, chemical processing facilities, and building material factories face intense scrutiny regarding atmospheric emissions. Implementing this advanced pulse jet baghouse assists plant operators in meeting and exceeding stringent local environmental regulations. By capturing microscopic pollutants and chemical dust before they exit the exhaust stack, the equipment actively reduces a facility's overall environmental footprint. The reliable, continuous separation process ensures that your operations remain fully compliant, avoiding costly regulatory fines and supporting long-term sustainable development goals for your surrounding community.
Every industrial exhaust stream presents unique challenges regarding particle size, moisture content, and chemical corrosiveness. To address this, we offer extensive material and structural versatility. The external casing can be fabricated from standard carbon steel or highly corrosion-resistant stainless steel, depending on your chemical exposure. Furthermore, the internal architecture can be engineered with top-loading, side-loading, or bottom-loading filter bag configurations to accommodate strict spatial limitations in your facility. Filtration media is also carefully matched to the application; high-temperature environments utilize woven glass fiber, while highly corrosive streams benefit from specialized PTFE treatments.
Capital equipment should adapt to your company's growth trajectory. Leveraging a highly modular design architecture, this filtration system allows for flexible combinations of individual extraction units. If your factory floor space is highly restricted, the modules can be arranged in custom configurations to maximize the available footprint. As your production scale expands in the future, the pulse jet baghouse can be easily extended by adding supplementary modules, drastically reducing the initial investment required and eliminating the need to purchase an entirely new system.
For large-scale industrial parks and highly automated facilities, standard operation can be enhanced with advanced digital integrations. We provide several functional upgrades to transform your dust collector into a smart asset:
Real-Time Concentration Sensors: Provide immediate feedback on exhaust purity to guarantee compliance.
Automated Ash Packing Systems: Securely bag the collected waste without human intervention, keeping the surrounding floor completely clean.
IoT Connectivity Modules: Allow plant managers to monitor performance metrics, fan speeds, and differential pressure from a remote dashboard, enabling predictive maintenance.
