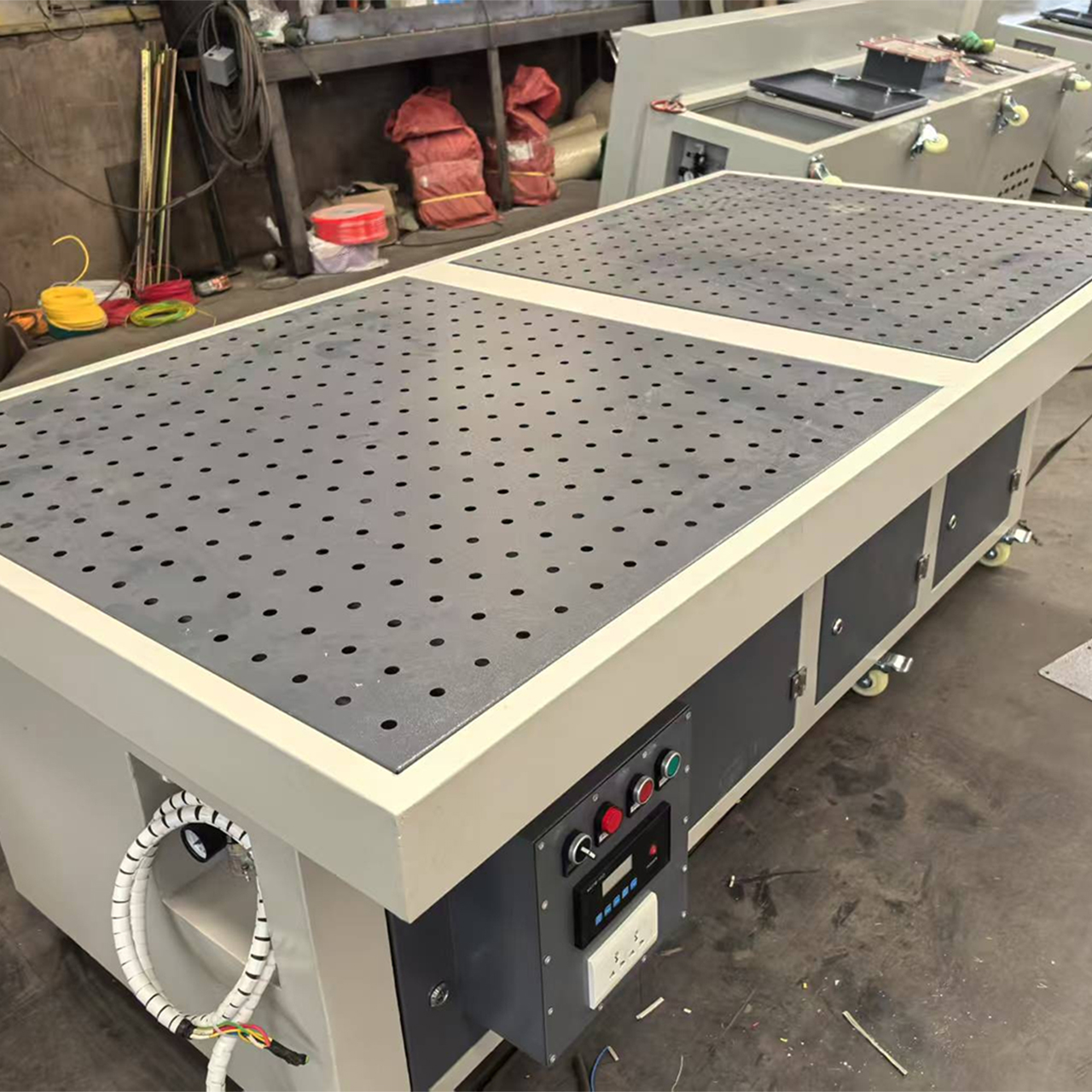

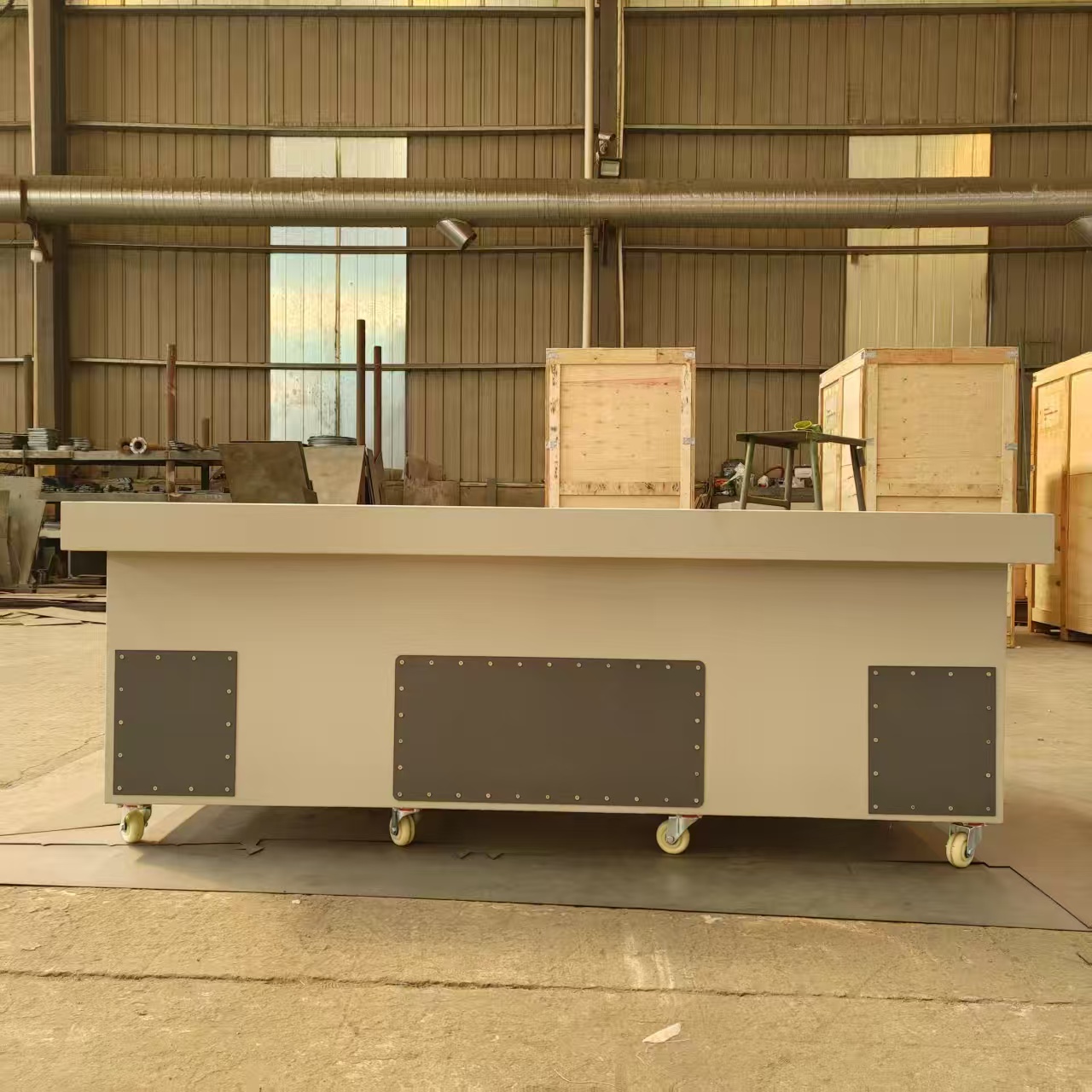

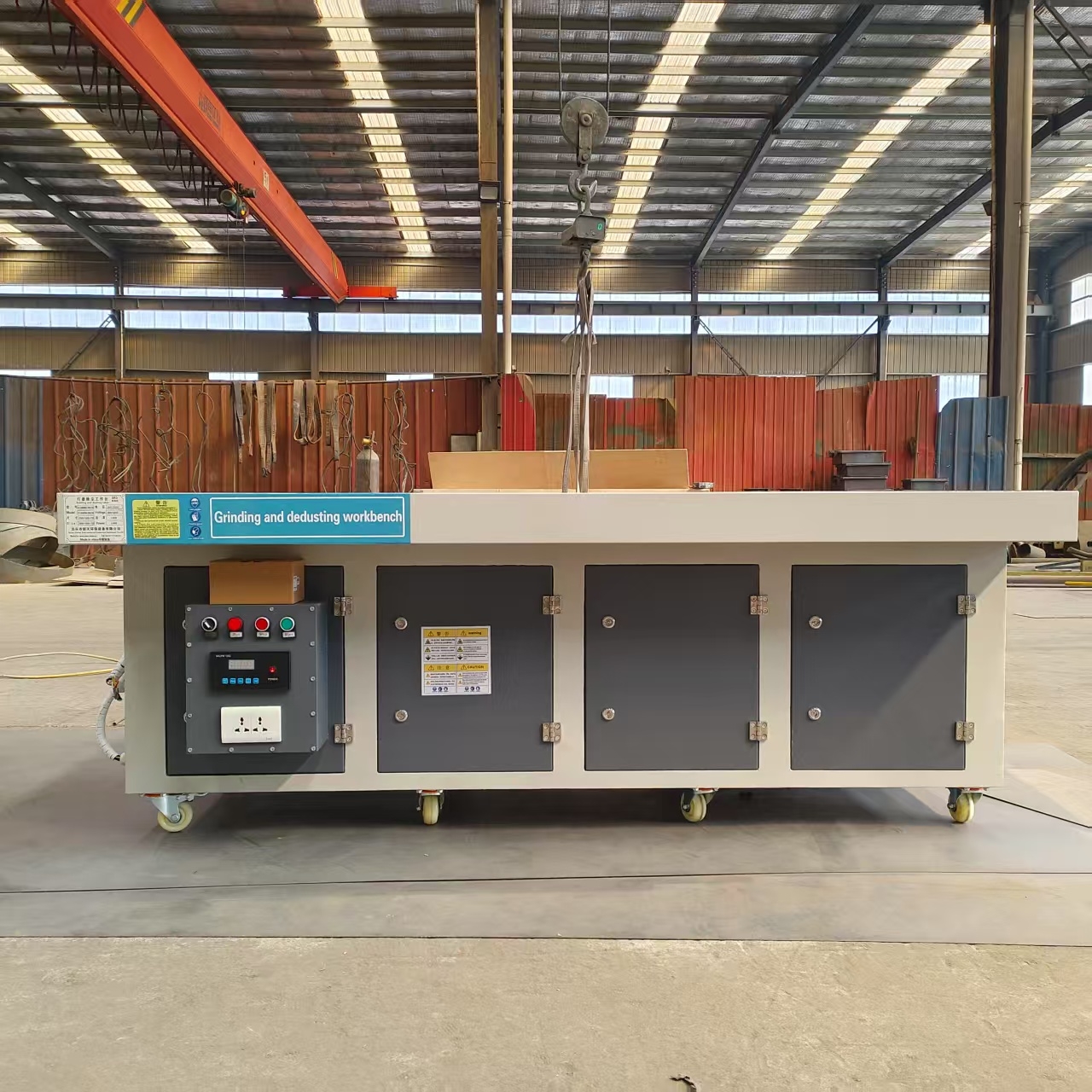

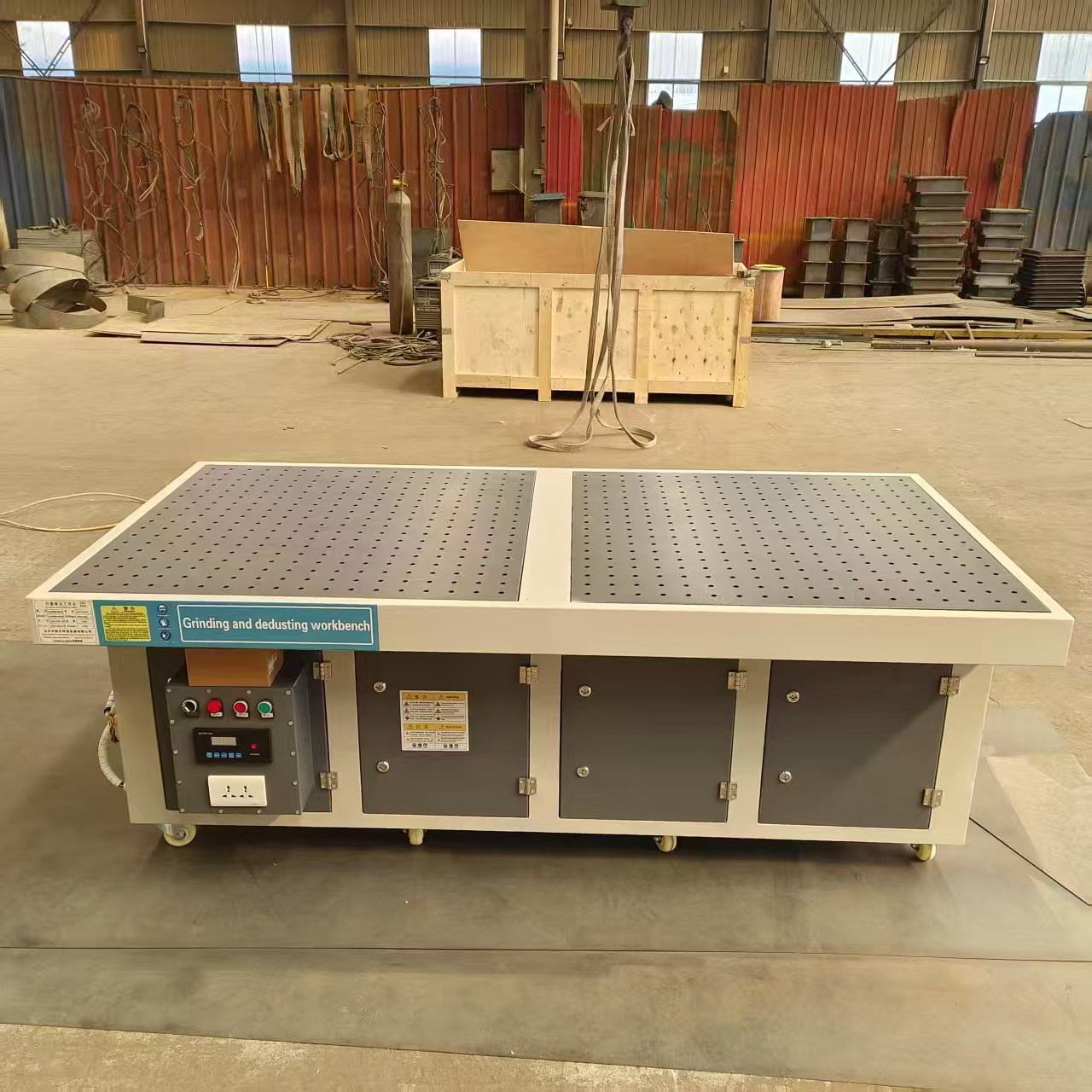

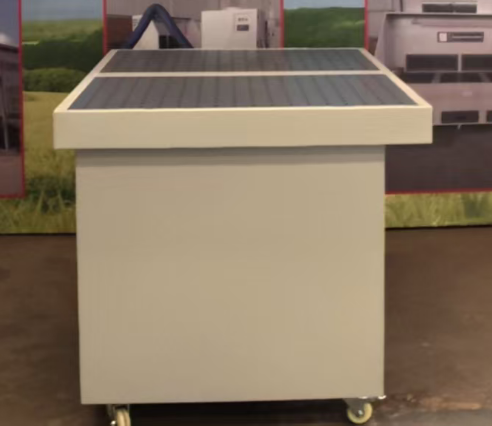

Xintian’s Industrial Downdraft Table solves welding fume pollution and unstable workpiece positioning—core pain points for manufacturers. As an ISO9001-certified solution, it extracts ≥95% of fumes to keep workspaces compliant and healthy, supports up to 2T load for heavy components, and works seamlessly with 3D flexible fixtures to boost efficiency by 80%. Customizable sizes fit your needs, with 24/7 after-sales support and fast delivery. Choose Xintian to streamline welding processes and reduce operational hassle—contact us for details.
| Quantity: | |
|---|---|
Botou Xintian Environmental Protection Equipment Co., Ltd, a professional lean manufacturer of 3D Flexible Combination Fixtures and robot welding workstations, launches the high-performance Industrial Downdraft Table—a dedicated Welding Fume Extraction Table engineered for modern manufacturing’s welding process demands. This workstation integrates efficient fume collection with stable workpiece positioning, perfectly compatible with our D28/D16 series flexible platforms and robotic welding arms. As an ISO9001 Welding Fume Extraction Workstation, it is built with advanced processing technology and a modular design, realizing intelligent, precise and efficient welding operations while effectively capturing over 95% of welding fumes and dust. With a 4000㎡ manufacturing base and a professional R&D team in Hebei China, we ensure this downdraft table meets global industrial standards and provides one-stop solutions for customers in engineering machinery, transportation and aerospace industries.
Our Industrial Downdraft Table features a high-efficiency air intake system that captures more than 95% of welding fumes and particulate matter, complying with international environmental protection norms and GB/JIS/ANSI standards. The table surface is sprayed with rust-proof lubricant to reduce wear and tear, ensuring long-term stable operation in harsh welding environments and creating a compliant and healthy working space for production lines.
As a Heavy-Load Welding Fume Extraction Table, it adopts high-quality steel materials processed by annealing and aging treatment, with reinforced bottom ribs to prevent deformation and a maximum load capacity of up to 2T. Uneven ground positions can be finely adjusted through ball-head type foot pads, ensuring the table remains stable even when bearing large structural components, which is perfectly adapted for heavy-duty welding scenarios such as loading truck boom assembly and high-speed train component welding.
This Downdraft Table Compatible with 3D Flexible Fixtures seamlessly connects with our D28/D16 series 3D multifunctional platforms, robotic welding arms and positioners. The grid marking on the table surface enables quick positioning and clamping without additional size measurement, improving welding efficiency by 80% compared with traditional workstations. It supports flexible combination with various fixtures and clamps, meeting the positioning needs of different products and specifications.
The Industrial Downdraft Table offers standard D28/D16 series models and fully customizable dimensions, matching the size range of our 3D flexible platforms. Core technical parameters are shown in the table below, with all components precision-manufactured and a minimum adjustment accuracy of 1.0mm for precise workpiece positioning.
Model | Overall Dimensions (L×B×H) mm | Load Capacity | Table Thickness mm | Fume Extraction Efficiency | Main Material | Certification | Compatibility |
D28 Series | 1200×800×750 / 1500×800×750 | ≤2T | 25 | ≥95% | Annealed steel | ISO9001 | D28 3D Flexible Fixtures, Robot Welding Arms |
D16 Series | 1200×800×750 / 1500×800×750 | ≤1T | 12 | ≥95% | Annealed steel | ISO9001 | D16 3D Flexible Fixtures, Light-duty Welding Equipment |
Custom | Customizable on request | Customizable | Customizable | ≥95% | Annealed steel/Carbon steel | ISO9001 | Third-party welding equipment, Custom Fixtures |
Our Custom Size Downdraft Table for Large Structural Welding is widely applied in various industrial welding fields, covering core scenarios such as: engineering machinery (loading truck front/rear frame assembly welding, forklift component welding); transportation (high-speed train air conditioning unit and window assembly welding); aerospace (aircraft wing assembly welding); and general manufacturing (food processing equipment, mineral water equipment welding and large foundation component assembly). It is especially suitable for mass production lines with robotic welding workstations and large structural component welding projects, realizing efficient and standardized production.
We provide one-stop Custom Size Downdraft Table for Large Structural Welding service to meet personalized process requirements of customers. Customizable scope includes: table overall dimensions (L/B/H), load capacity design, fume extraction port layout, table surface treatment and compatibility with third-party welding equipment. Customers only need to provide flange standards (GB/JIS/ANSI), workpiece dimensions or production line operation requirements, and our professional engineering team will deliver a tailored solution within 3 working days, with modular design ensuring fast production and short delivery cycles for custom orders.
As a professional manufacturer with international sales and service capabilities, we offer 24/7 technical consultation and after-sales support for our Industrial Downdraft Table via WhatsApp (+8613785726449), E-mail (btxthb@china-xintian.cn) and international phone (0086-317-8259944). We provide bulk order discounts, on-site installation guidance and debugging, 1-year product warranty and lifelong maintenance service for all workstations. Our developed transportation and logistics network in Hebei China ensures fast and safe delivery of products to global customers, with professional after-sales personnel responding to technical problems and maintenance needs in a timely manner to guarantee uninterrupted production line operation.
