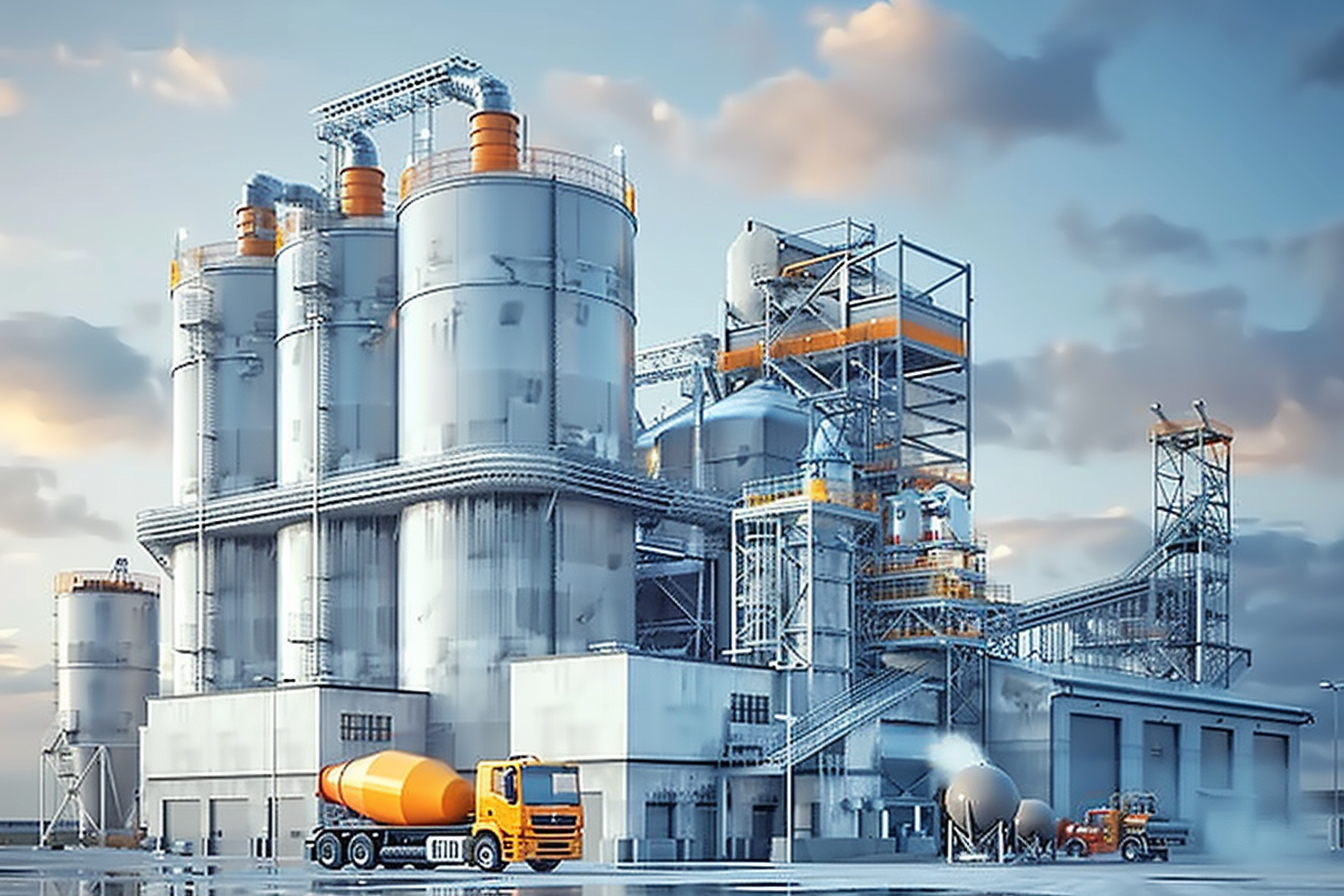

Cement, Ceramics, Stone Processing
A large amount of dust is generated in the raw material crushing, grinding, calcination, packaging and other links of cement production. The dust concentration is high (up to 1000-5000mg/m³), the particle size distribution is wide (0.01-100μm), and the proportion of silica-containing dust is high; the raw material mixing, forming and drying links of ceramic production generate clay dust with high humidity and strong viscosity; the cutting and grinding links of stone processing generate a large amount of quartz sand dust with coarse particle sizes (1-50μm) and concentrated emissions. The operating environment is mostly closed workshops or open-air workstations, and dust spreads over a wide range.
Inhalation of silica dust is the main cause of silicosis, and the incidence of silicosis in the building materials industry is among the highest in all industries;
Unorganized emission of high-concentration dust will cause air pollution in the surrounding area and be subject to key supervision by environmental protection departments;
Dust accumulation inside production pipelines and equipment can easily cause blockages and scaling, affecting production continuity;
Cement dust is easy to harden when exposed to water, which may lead to equipment failure or even collapse.
Large-Scale Pulse Bag Dust Removal + Pre-Dust Collection Solution
For high-concentration and coarse-grained dust (such as cement crushing and stone cutting), a two-stage purification solution of "pre-dust collection + main dust collection" is adopted. First, cyclone dust collectors are used to remove large-grained dust, and then enter the main dust collector to purify fine particles; for viscous dust (such as ceramic clay), heat preservation and anti-condensation devices are equipped.
Large-scale pulse bag filters, the filter bags select high-humidity resistant and anti-adhesive PPS filter materials, the pulse cleaning system selects high-pressure pulse valves, with high cleaning efficiency to avoid filter bag blockage;
Cyclone dust collectors, whose processing air volume matches the main dust collector, reducing the load of the main dust collector;
Sealed dust hoods are set at the discharge ports of production equipment, and the pipelines are made of large-diameter and wear-resistant materials to prevent dust blockage and wear.
For high-concentration and coarse-grained dust, wear-resistant filter materials (such as P84) are selected; for high-humidity and viscous dust, waterproof and anti-adhesive filter materials (such as coated PPS) are selected;
Equip 1.5 times the air volume according to the dust generation amount to avoid high-concentration dust exceeding the equipment processing capacity;
Pulse cleaning is preferred, with high cleaning efficiency, suitable for high-concentration dust, avoiding filter bag blockage;
Insulation layers and heating devices are equipped in high-humidity environments to prevent dust condensation from blocking pipelines and filter bags.
We have been deeply engaged in the dust removal equipment industry for 15 years, focusing on customized solutions for various industries. With the core advantages of "leading technology, reliable products and comprehensive services", we have become the preferred partner of many enterprises:
We have a professional industry research and technical team, deeply understanding the production processes and dust characteristics of various industries. We have successfully provided customized solutions for more than 20 industries including metal processing, building materials, chemicals, wood processing, spray painting industry, mining and electronics, serving more than 5000 customers cumulatively. With rich case experience, we can accurately match the needs of different working conditions.
Possessing a number of patented technologies for dust removal equipment, independently developed high-efficiency filter materials, intelligent pulse cleaning systems and explosion-proof monitoring systems, with industry-leading purification efficiency and safety performance;
Adopting the ISO9001 quality management system, the core components of the equipment (filter materials, fans, pulse valves) are all selected from well-known brands, and have undergone strict testing to ensure stable operation of the products;
All solutions comply with the latest national environmental protection standards, and can assist enterprises in passing environmental protection acceptance.
We provide full-cycle services from "working condition research - solution design - equipment production - installation and commissioning - post-maintenance". We can flexibly adjust the solution according to the enterprise's production scale, site constraints and budget requirements to achieve "customization on demand and optimal cost performance".
For flammable, explosive, toxic and harmful dust, complete explosion-proof, poison-proof and monitoring devices are equipped, and all safety equipment has passed authoritative certification; strict risk assessment is carried out during the solution design process to ensure safe operation of equipment and reduce enterprise production risks.
We have set up more than 20 service outlets nationwide, with a professional installation and after-sales team, providing 24-hour emergency response services; free maintenance and replacement of accessories are provided during the equipment warranty period, and lifelong maintenance services are provided after the warranty period. Regular on-site inspections are carried out to ensure long-term stable operation of the equipment.
Focusing on customer needs, we provide full-process and one-stop services covering the entire life cycle of dust removal projects:
Professional technical personnel conduct on-site visits to deeply understand the enterprise's production process, dust generation links, concentration, particle size, physical and chemical properties, as well as environmental protection requirements, site constraints, budget and other information, and issue detailed working condition research reports.
Based on the results of working condition research, a team of senior engineers designs customized dust removal solutions, including equipment selection, pipeline layout, air volume calculation, safety protection design, etc., and issues detailed solution specifications and quotations to provide customers with clear project planning.
Production is organized according to the solution requirements, core components are selected from high-quality materials, and the production process strictly follows the quality management system; after the equipment production is completed, a number of performance tests (purification efficiency, air volume, noise, explosion-proof performance, etc.) are carried out to ensure that the products meet the solution requirements and industry standards.
A professional installation team provides on-site services, strictly carrying out equipment installation, pipeline laying and electrical connection according to the construction plan; after the installation is completed, comprehensive commissioning is carried out to optimize the equipment operation parameters to ensure that the purification effect meets the standards and the equipment operates stably.
Provide professional training for enterprise operators, including equipment working principles, operating procedures, daily maintenance, safety precautions, etc., to ensure that operators can proficiently master equipment use and maintenance skills.
The equipment warranty period is 1-3 years (depending on the equipment type). During the warranty period, free maintenance and replacement of non-human-damaged accessories are provided;
24-hour after-sales hotline, after receiving a fault notification, technical personnel from nearby service outlets will arrive at the scene for processing within 2-8 hours;
On-site inspections are carried out every 3-6 months during the warranty period, and at least 2 inspections are carried out every year after the warranty period to check the equipment operation status, clean up accumulated dust, replace worn accessories and provide maintenance suggestions;
Provide lifelong maintenance services for equipment, and reasonable fees for accessories and services are charged after the warranty period.
Assist enterprises in preparing materials required for environmental protection acceptance (solution specifications, test reports, equipment qualifications, etc.), and cooperate with environmental protection departments to conduct on-site acceptance to ensure the smooth passing of the project's environmental protection acceptance.
Answer: It can be judged in two ways: ① Third-party testing: Entrust a qualified environmental protection testing agency to test the dust concentration at the equipment outlet to ensure compliance with relevant standards such as the "Integrated Emission Standard of Air Pollutants" (GB 16297-1996); ② Equipment monitoring: Select equipment equipped with dust concentration monitors to view the real-time dust concentration data at the outlet and intuitively judge the purification effect.
Answer: The maintenance cost of dust removal equipment is relatively low, mainly including three parts: ① Accessory replacement: Filter materials (filter bags, filter cartridges) are the main wearing parts. The replacement cycle depends on the working conditions (generally 3-12 months). The replacement cost of high-quality filter materials accounts for about 5%-10% of the total equipment price; ② Energy consumption cost: The fan operates with electricity. Our equipment adopts high-efficiency and energy-saving fans, and the energy consumption is 15%-20% lower than the industry average; ③ Labor cost: Daily cleaning of accumulated dust and equipment inspection are simple operations that do not require special personnel on duty, resulting in low labor costs.
Answer: We ensure safety through "triple protection": ① Equipment explosion protection: Select motors, fans and electrical components with explosion-proof grades meeting industry standards, and the equipment shell adopts an explosion-proof design; ② Explosion suppression: Equipped with explosion vents, flame arresters and explosion suppression devices. Explosion vents can release pressure in an instant during an explosion, flame arresters prevent the spread of explosion flames, and explosion suppression devices can quickly extinguish explosion flames; ③ Monitoring and early warning: Equipped with dust concentration, temperature and pressure monitors to monitor the equipment operation status in real time. When parameters are abnormal, it automatically warns and shuts down to avoid danger.
Answer: The installation cycle depends on the project scale. Small-scale decentralized equipment (such as mobile welding fume purifiers) is simple to install and can be completed in 1-2 days; the installation cycle of large-scale central dust collection systems is about 7-30 days. We will communicate with customers in advance to formulate a reasonable installation plan, and try to choose production gaps and holidays for installation to reduce the impact on normal production; for large-scale projects, phased installation and commissioning can be adopted to ensure the normal operation of some production lines.
Answer: Universal use is not recommended. The dust working conditions (concentration, particle size, physical and chemical properties) of different industries are quite different. For example, heavy metal dust in metal processing, flammable and explosive dust in the chemical industry, and ultra-fine dust in the electronics industry have completely different requirements for equipment filtration precision, explosion-proof performance and material. Universal equipment cannot accurately adapt to working conditions, which may lead to substandard purification effects, equipment damage and even safety accidents. We recommend customizing exclusive equipment according to the specific industry working conditions.
Answer: If a fault occurs in the equipment, it can be handled in the following steps: ① Emergency shutdown: In case of serious faults (such as abnormal noise, peculiar smell, dust leakage), immediately cut off the equipment power supply to avoid expanding the fault; ② Contact after-sales service: Call our 24-hour after-sales hotline to explain the fault phenomenon, equipment model, working conditions and other information; ③ On-site processing: Technical personnel from nearby service outlets will arrive at the scene within 2-8 hours to troubleshoot and repair; ④ Emergency support: For key production links, we can provide temporary backup equipment to ensure uninterrupted production.
