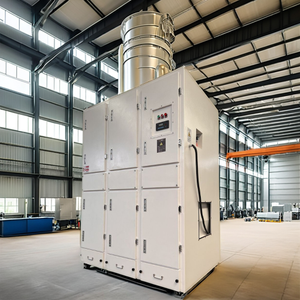

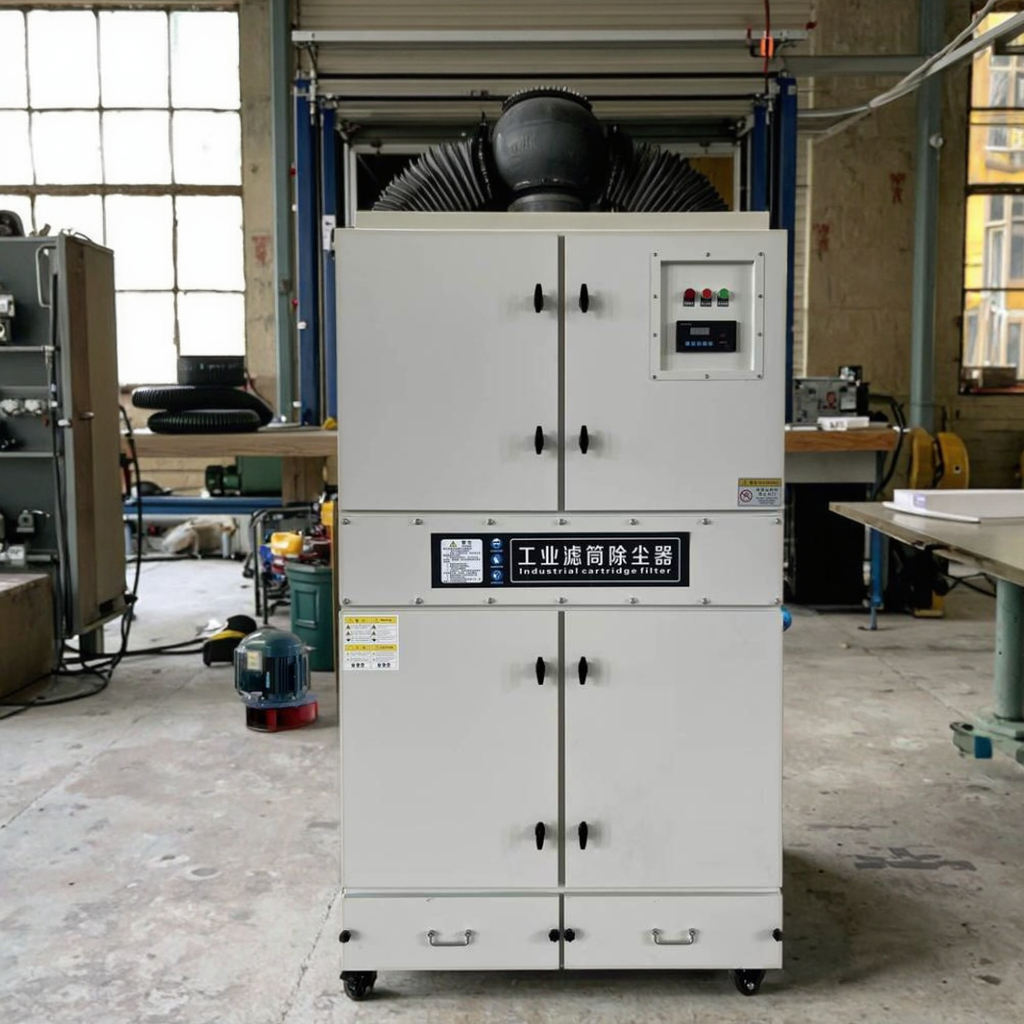

The Portable Workshop Pulse Jet Cartridge Dust Collector is a compact, high-efficiency dust removal solution tailored for small to medium-sized workshops and on-site processing operations. Developed by Botou Xintian Environmental Protection Equipment Co., Ltd.—a leader in lean manufacturing of environmental protection tools—this equipment combines pulse jet cleaning technology with a portable design, enabling flexible deployment for localized dust control in mechanical processing, woodworking, and hardware manufacturing. It effectively captures dust, chips, and fumes at the source, improving workshop air quality, protecting worker health, and complying with occupational health and safety regulations. The lightweight yet durable structure, coupled with easy operation and low maintenance, makes it a cost-effective choice for B-end users seeking practical dust removal solutions.

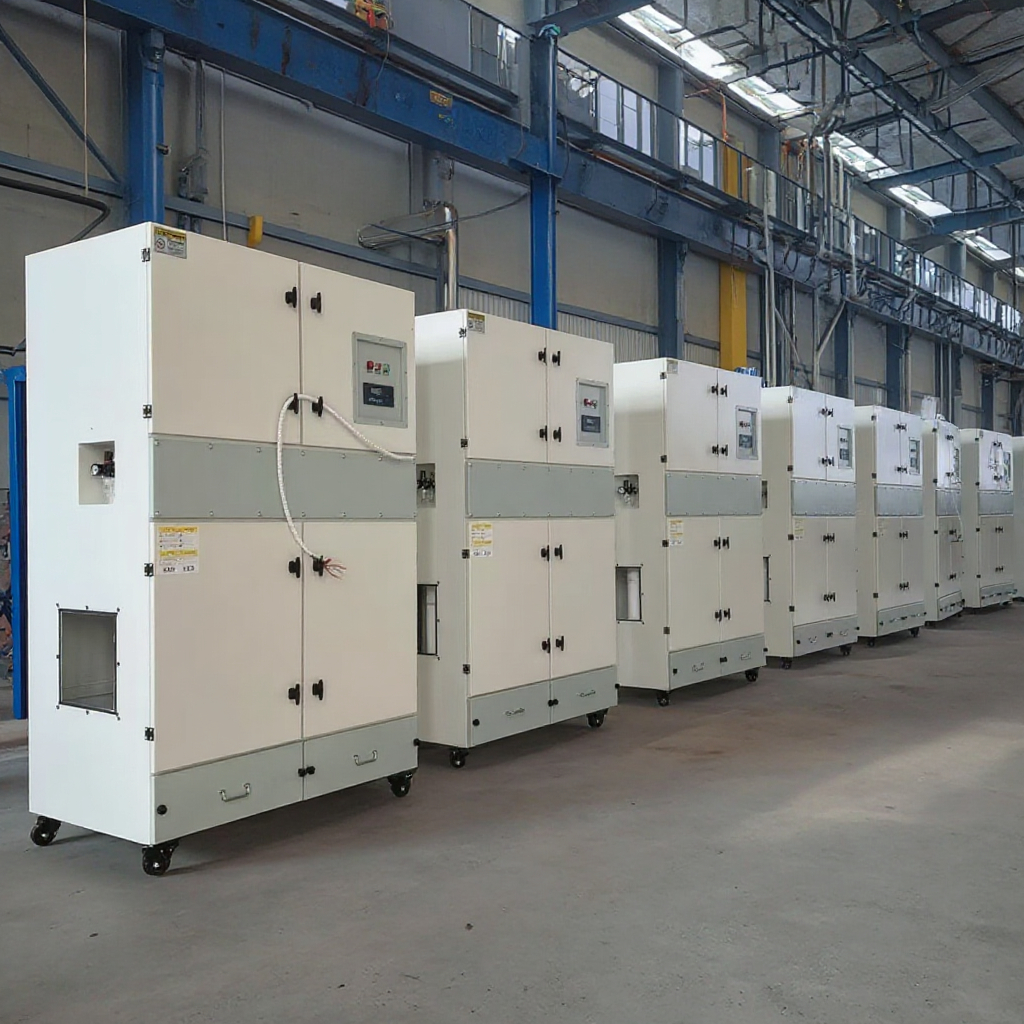

With a lightweight steel frame and lockable casters, the dust collector can be easily moved to dust-generating locations such as CNC machines, grinding stations, and welding workbenches. Its space-saving design (minimum footprint of 0.8×1.2 meters) fits in narrow workshops, eliminating the need for fixed installation and pipeline layout—reducing initial investment costs by 30-40% compared to centralized dust collection systems.

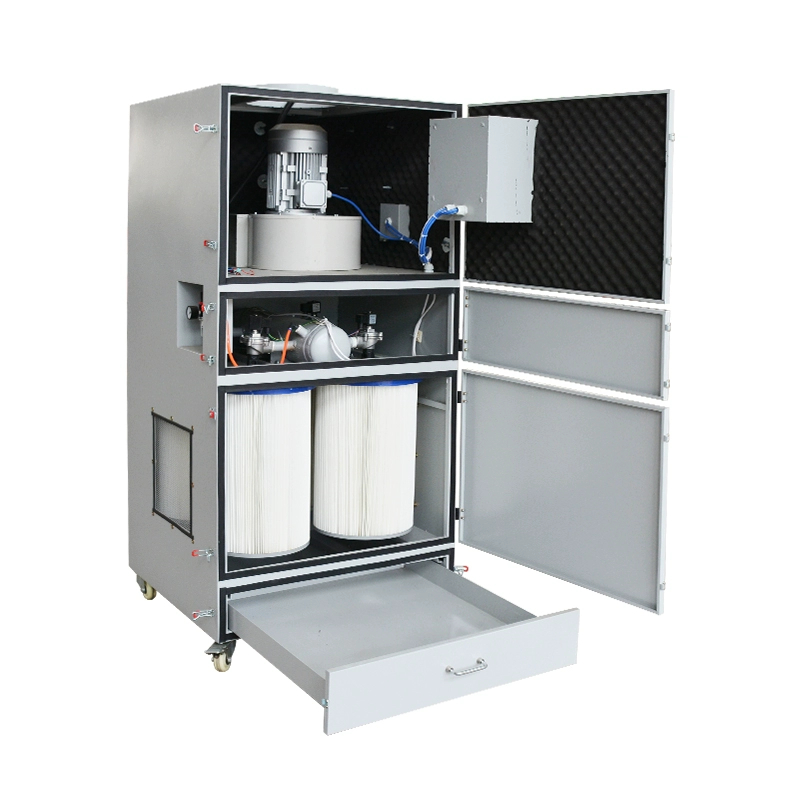

Equipped with a high-pressure pulse jet mechanism, the equipment delivers instantaneous air blasts to clean filter cartridges, ensuring consistent air permeability and dust collection efficiency. The PTFE-coated filter cartridges capture fine dust particles (≥0.3μm) with an efficiency of 99.7%, while the automatic cleaning cycle (adjustable 10-60 seconds) minimizes manual intervention. Our precision-manufactured nozzles and air chambers—produced using 3D flexible welding fixtures—guarantee uniform airflow distribution and thorough cleaning.
Following ISO9001 quality standards, the dust collector features a sturdy steel housing treated with anti-corrosion painting and annealing processes, ensuring resistance to impact and wear. The filter cartridges have a long service life of 12-18 months, and replacement is tool-free. The sealed dust hopper prevents secondary pollution, while the transparent inspection window allows for real-time monitoring of dust accumulation—reducing maintenance time and costs.
Parameter | Specification |
Processing Air Volume | 500-3,000 m³/h |
Dust Removal Efficiency | ≥99.7% |
Filter Cartridge Quantity | 1-4 pcs |
Filter Cartridge Material | PTFE-Coated Polyester |
Filter Area per Cartridge | 10-20 m² |
Pulse Pressure | 0.4-0.6 MPa |
Power Supply | 220V/380V, 50Hz |
Power Consumption | 0.3-1.5 kW |
Overall Dimensions (L×W×H) | 800×1200×1500 - 1200×1500×2000 mm |
Net Weight | 50-150 kg |
Perfect for dust control in CNC milling, turning, and grinding operations. It captures metal chips, aluminum dust, and cutting fluid mist, preventing equipment clogging and improving processing precision. Suitable for auto parts manufacturers, hardware factories, and precision component workshops.
Effective in removing sawdust, wood shavings, and resin dust from circular saws, routers, and sanding machines. The equipment’s spark-resistant design reduces fire risks, while the high-efficiency filter prevents fine wood dust from endangering workers’ respiratory health.
Ideal for on-site dust removal in welding workshops, battery production lines, and electronic component assembly plants. It captures welding fumes, lead dust, and other harmful particles, ensuring compliance with occupational health standards and creating a safe working environment.
We provide personalized solutions to adapt to diverse workshop requirements:
Capacity Customization: Adjustment of air volume, filter cartridge quantity, and dust hopper capacity based on dust generation intensity and workshop size.
Filter Material Customization: Optional HEPA filters for ultra-fine dust, flame-retardant filters for combustible dust, and anti-static filters for explosive environments.
Portability Enhancement: Customizable caster types (heavy-duty, anti-slip), foldable handles, and detachable components for easy transportation and storage.
Functional Add-ons: Integration of dust collection hoods, flexible hoses (1-5 meters), and air volume regulators to meet specific dust source capture needs.
Lean Manufacturing Expertise: As a professional manufacturer of flexible tooling and automation equipment, we ensure precise production and reliable product performance.
User-Centric Design: Our team focuses on practicality and ease of use, developing equipment that requires minimal training and operational effort.
Timely Technical Support: With a dedicated after-sales team and local service network, we provide on-site troubleshooting, filter replacement guidance, and maintenance training.
Cost-Effective Solutions: The portable design eliminates expensive pipeline installation, while low energy consumption and long-lasting components reduce total ownership costs—delivering high ROI for small and medium-sized enterprises.
