Designed specifically for machinery manufacturing, this 3D Welding Table for Machinery Manufacturing integrates R&D, production, and service, featuring a modular structure and flexible combination capabilities. With a factory area of approximately 4,000 square meters and advanced domestic processing equipment, we ensure the table’s high precision and durability. It perfectly adapts to robot welding workstations, enabling intelligent, efficient, and accurate welding operations. Whether for single workpiece production or assembly component processing, this Industrial Robot-Compatible Welding Platform provides rapid and cost-effective solutions, becoming an indispensable tool for modern machinery manufacturing enterprises.

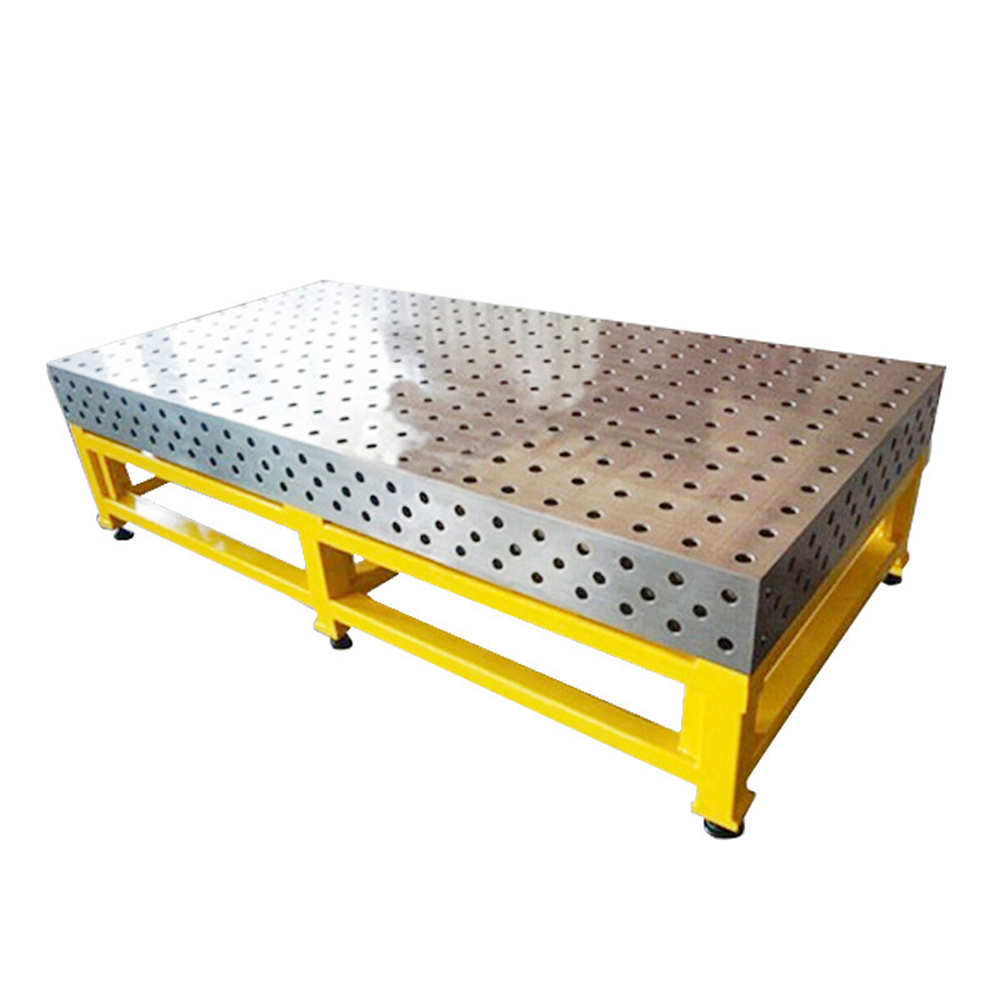

Crafted from high-quality casting or steel components, the table undergoes annealing and aging treatments, ensuring exceptional sturdiness and resistance to deformation. The reinforced bottom structure and adjustable foot pads compensate for uneven ground, maintaining stability during high-intensity welding. Additionally, the surface and holes are sprayed with rust-proof lubricant, reducing wear and extending the service life—critical for long-term industrial use.

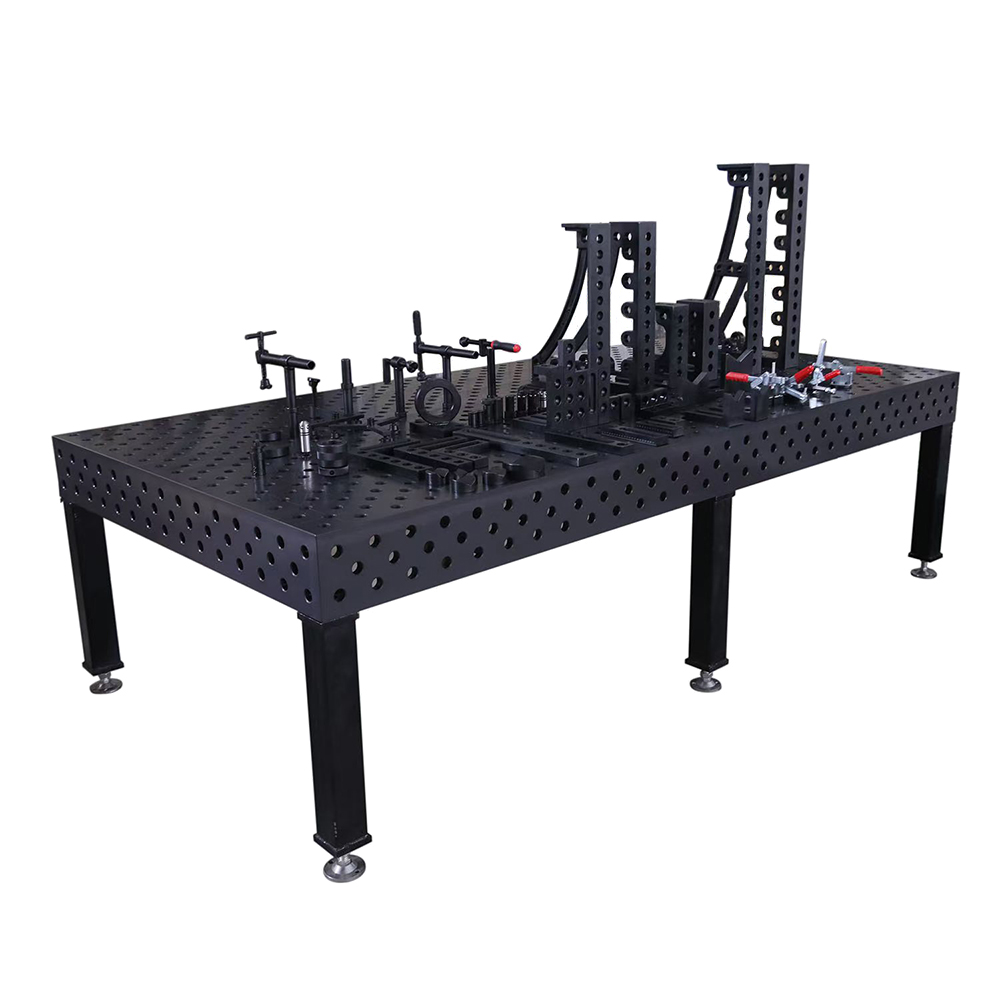

Equipped with standard D28 (100*100mm pitch) and D16 hole systems, the table supports quick positioning and clamping via grid marking lines. No complex measurements are required, allowing for rapid assembly of complex tooling combinations. It is compatible with various accessories such as U-shaped square boxes, L-shaped positioning blocks, and precision thread height adjusters, realizing multi-angle and multi-height positioning for workpieces of different specifications.
The Flexible Modular Welding Workbench is engineered to work in tandem with robotic arms and positioners. Its modular design and flexible guide rail system enable arbitrary movement, solving positioning challenges for extra-long and large structural components. This synergy significantly improves welding efficiency by 80% compared to traditional manual operations while ensuring consistent welding precision—ideal for large-scale mass production.
Parameter | D28 Series | D16 Series |
Model | D28-XTC281010, D28-XTS281212, etc. | D16-XT2D1010, D16-XTC161515, etc. |
Material | Casting/Steel | Casting/Steel |
Aperture Pitch | 100*100mm | Customized |
Thickness | 200mm (3D), 150mm (2D) | 150mm |
Load Capacity | ≤2T | ≤1T |
Size Range (L×B×H, mm) | 1000×1000×200 to 3000×1500×200 | 1000×1000×150 to 3000×1500×150 |
Processing Technology | Annealing, aging, rust-proof spraying | Annealing, aging, rust-proof spraying |
Ideal for welding key components such as loading truck booms, front/rear frames, and forklift structures. The table’s flexibility accommodates diverse workpiece sizes, from small parts to large structural assemblies, meeting the demands of engineering machinery production lines.
Widely used in welding high-speed train air conditioning units, window assemblies, and aircraft wing components. Its high precision ensures strict dimensional requirements for transportation equipment, while robot compatibility supports automated production processes.
Suitable for welding large foundation parts and heavy-duty industrial structures. The adjustable guide rail system and modular combination capability address positioning difficulties for oversized workpieces, improving welding efficiency and quality.
We offer comprehensive customization to meet unique customer needs:
Size Customization: Tailor length, width, and height according to specific workpiece dimensions, with a maximum size of 3000×1500×200mm.
Accessory Matching: Customize U-shaped square boxes, support legs, angle rulers, and other accessories based on welding processes.
Combination Solutions: Design modular combinations for special welding tasks, such as octagonal platforms for robot welding and变位机 coordination.
Surface Treatment: Provide additional nitriding oxidation treatment for enhanced corrosion resistance in harsh environments.
ISO9001-Certified Quality: Our strict quality management system ensures consistent product performance and reliability.
Professional R&D Team: A team of engineering experts specializes in flexible welding equipment and robot integration, providing technical support throughout the project.
One-Stop Service: From design and production to after-sales maintenance, we offer end-to-end solutions, reducing customer operational costs.
Geographical Advantage: Located in Siying Industrial Zone with developed logistics, enabling fast delivery and timely on-site service.
Proven Track Record: As a leading manufacturer of intelligent welding solutions, we have served numerous machinery and transportation enterprises, earning a reputation for integrity and quality.
