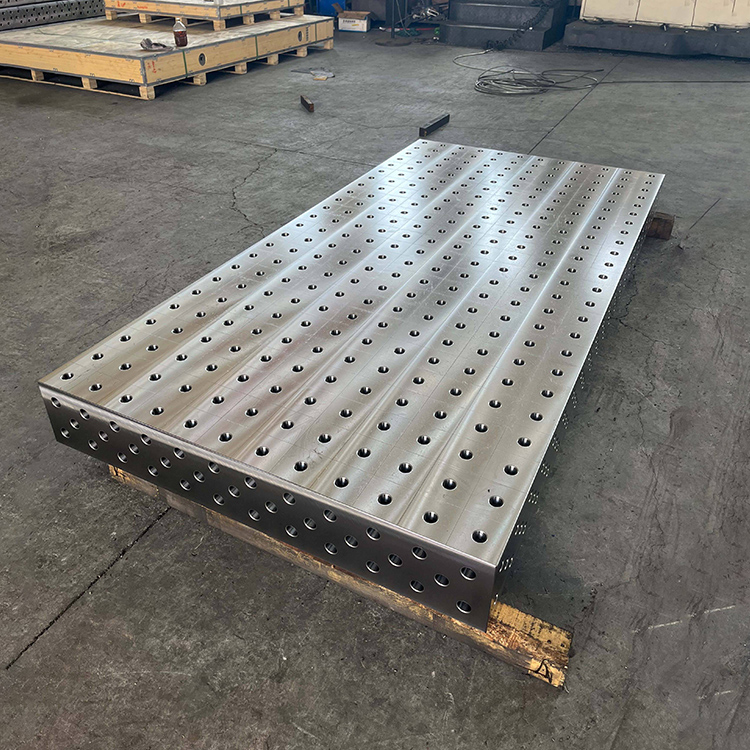

The Modular 3D Welding Table for Assembly is a versatile, scalable solution engineered for industrial assembly and welding applications. Developed by Botou Xintian Environmental Protection Equipment Co., Ltd.—a leading provider of intelligent welding process equipment—this table leverages modular design to adapt to dynamic B-end production needs. Whether assembling small mechanical parts or large-scale structural components, the table’s modular units can be quickly combined, adjusted, or expanded, delivering exceptional flexibility and efficiency.
| Quantity: | |
|---|---|
Crafted with high-strength steel or casting materials, the table undergoes precision processing and surface treatment to ensure durability and stability. Its compatibility with a wide range of accessories—including positioning angle rulers, flange positioning plates, and flexible guide rails—makes it a comprehensive tool for industrial assembly welding. Backed by our ISO9001 certification and professional engineering team, this modular welding table is designed to optimize assembly workflows, reduce downtime, and enhance product quality for manufacturers worldwide.
The table’s modular design allows users to combine units horizontally or vertically, expanding workspace to accommodate extra-long or oversized assembly components. This scalability eliminates the need for multiple fixed-size tables, reducing equipment costs and workshop space requirements.
Equipped with flexible guide rail platforms, the table enables arbitrary movement of workpieces, solving positioning challenges for large foundation components and super-long structural assemblies. The stable load-bearing capacity (up to 2T) supports heavy-duty assembly tasks.
Compatible with over 20 types of specialized accessories—such as L-shaped/C-shaped square boxes, angle adjusters, and quick-locking pins—the table meets diverse positioning and clamping needs for complex assembly processes. Standardized hole positions ensure seamless integration with existing tooling.
Modular units can be pre-configured for specific assembly tasks, reducing setup time by 70% compared to traditional tables. The quick-clamping mechanism and precise positioning lines enable efficient workpiece switching, ideal for high-volume production lines.
Model Number | Modular Size (L×B×H, mm) | Aperture (mm) | Adjustable Height Range (mm) | Material Treatment | Load Capacity |
D28-XT600-25 (2D Octagonal) | 600×800×25 | 28 | 0-50 | Annealing + Rust-proof spray | 2T |
D28-XT1000-200 (3D Octagonal) | 1000×1000×200 | 28 | 0-100 | Annealing + Rust-proof spray | 2T |
D16-XT800-100 (3D Octagonal) | 800×800×100 | 16 | 0-50 | Annealing + Rust-proof spray | 1T |
D28-XTS2412 (2S Multifunctional) | 2400×1200×25 | 28 | 0-30 | Annealing + Rust-proof spray | 2T |
Perfect for assembling forklift components and construction machinery parts, including boom assemblies and frame structures. The modular design adapts to different product models, supporting flexible production lines.
Used in welding and assembling aircraft wing segments, engine mounts, and other precision aerospace parts. The high-precision positioning ensures compliance with strict industry standards.
Ideal for assembling train bogies, interior components, and exterior structures. The table’s stability and scalability meet the demands of large-scale rail transportation manufacturing.
Suitable for small to medium-sized mechanical component assembly, including automotive parts, electrical enclosures, and custom machinery. The versatile design caters to diverse B-end production requirements.
We provide tailored modular 3D welding table for assembly solutions to fit your specific production needs:
Modular unit customization: Customize size, aperture, and load capacity of individual modules for seamless integration into existing production lines.
Accessory customization: Design specialized fixtures, positioning tools, or support components to match unique assembly processes.
Flexible guide rail customization: Adjust rail length and layout to address oversized or irregularly shaped workpieces.
Turnkey solution customization: Collaborate with our engineering team to design a complete modular welding system, including robot integration and workflow optimization.
Modular Expertise: We specialize in modular welding solutions, with extensive experience in designing scalable systems for B-end users.
Robot Integration Capabilities: Our team provides complete robot welding workstation design, ensuring seamless compatibility between the modular table and automated systems.
Reliable After-Sales Support: We offer technical training, maintenance guidance, and quick replacement of parts to minimize production downtime.
Proven Manufacturing Capabilities: Our 4,000-square-meter production base is equipped with advanced processing equipment, ensuring high-quality manufacturing and on-time delivery.
Customer-Centric Design: We prioritize understanding your production workflows to deliver customized solutions that drive efficiency and cost savings.
