Grid-Patterned 2D Welding Table for Sheet Metal

Product Overview

The Grid-Patterned 2D Welding Table is a core product of Botou Xintian Environmental Protection Equipment Co., Ltd., designed specifically for B-end users in metal fabrication, engineering machinery, and automotive parts manufacturing. As a professional Sheet Metal Welding Workbench, it integrates sturdiness, precision, and flexibility to address the challenges of positioning and clamping during sheet metal welding processes. Crafted from high-quality steel through annealing and aging treatments, the table ensures structural stability and resistance to deformation—critical for consistent welding quality in mass production. Its grid-patterned marking lines enable quick and accurate positioning, while the rust-proof and lubricated surface reduces wear, extending the product’s service life. Whether for small-batch customization or large-scale assembly, this Industrial 2D Welding Platform delivers efficient and reliable performance, becoming an indispensable tool for modern manufacturing enterprises.

Core Competitive Advantages

Superior Structural Durability

The table is made of high-strength steel with bottom reinforcement ribs, undergoing strict annealing and aging processes to eliminate internal stress. This design ensures no deformation even under heavy loads, with a maximum bearing capacity of up to 2T for D28 series models. The surface and holes are sprayed with rust-proof lubricant, effectively resisting corrosion and reducing maintenance costs for long-term use in industrial environments.

High-Precision Positioning Efficiency

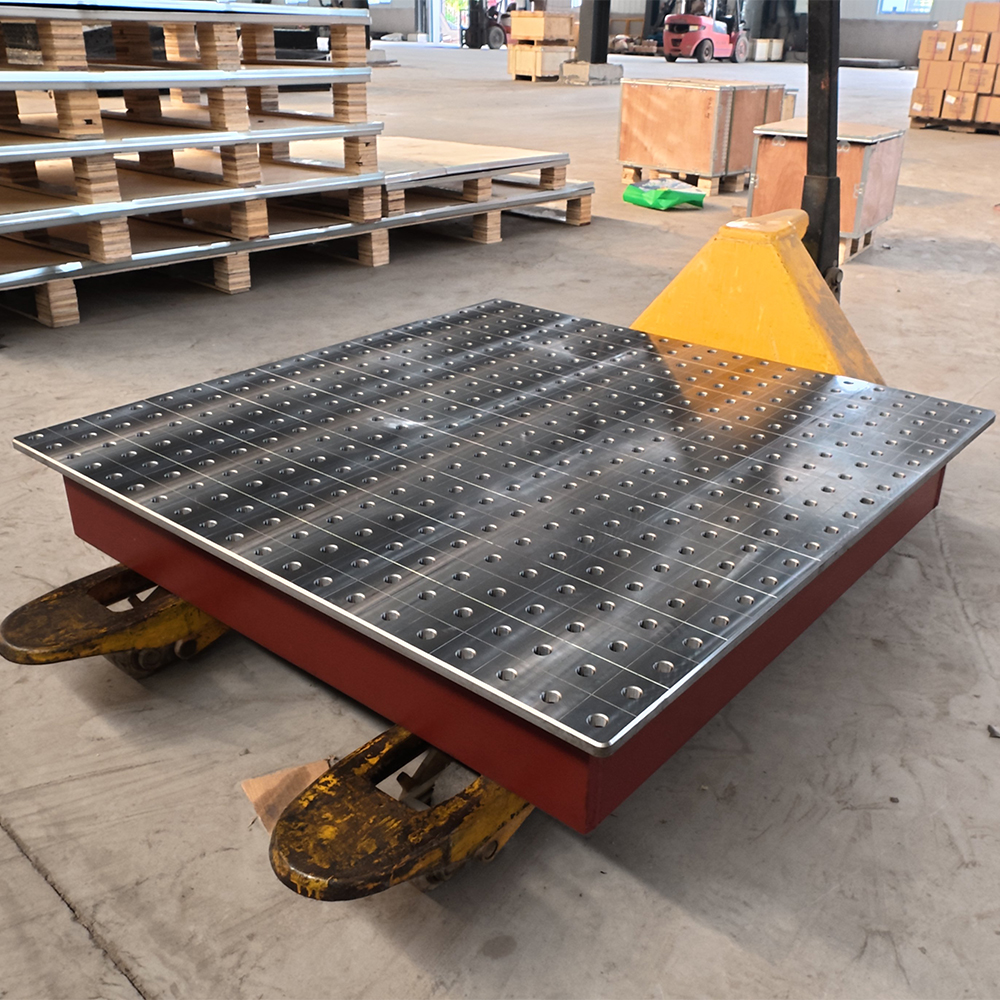

Equipped with grid-patterned scribed lines (100*100mm pitch for D28 series), the Precision Grid Welding Table for Metal Fabrication allows for quick clamping without repeated measurements. It supports flexible positioning of different specifications and types of sheet metal workpieces, improving welding efficiency by over 30% compared to traditional welding tables. The adjustable foot pads compensate for uneven ground, ensuring consistent positioning accuracy across the entire work surface.

Versatile Compatibility

This Flexible 2D Welding Table for Sheet Metal Bending seamlessly integrates with robotic welding arms, positioners, and other automation equipment, realizing intelligent and streamlined production. It is compatible with various welding processes (arc welding, gas shielded welding, etc.) and adapts to diverse workpiece sizes, eliminating the need for multiple dedicated fixtures and reducing equipment investment costs for enterprises.

User-Centered Design

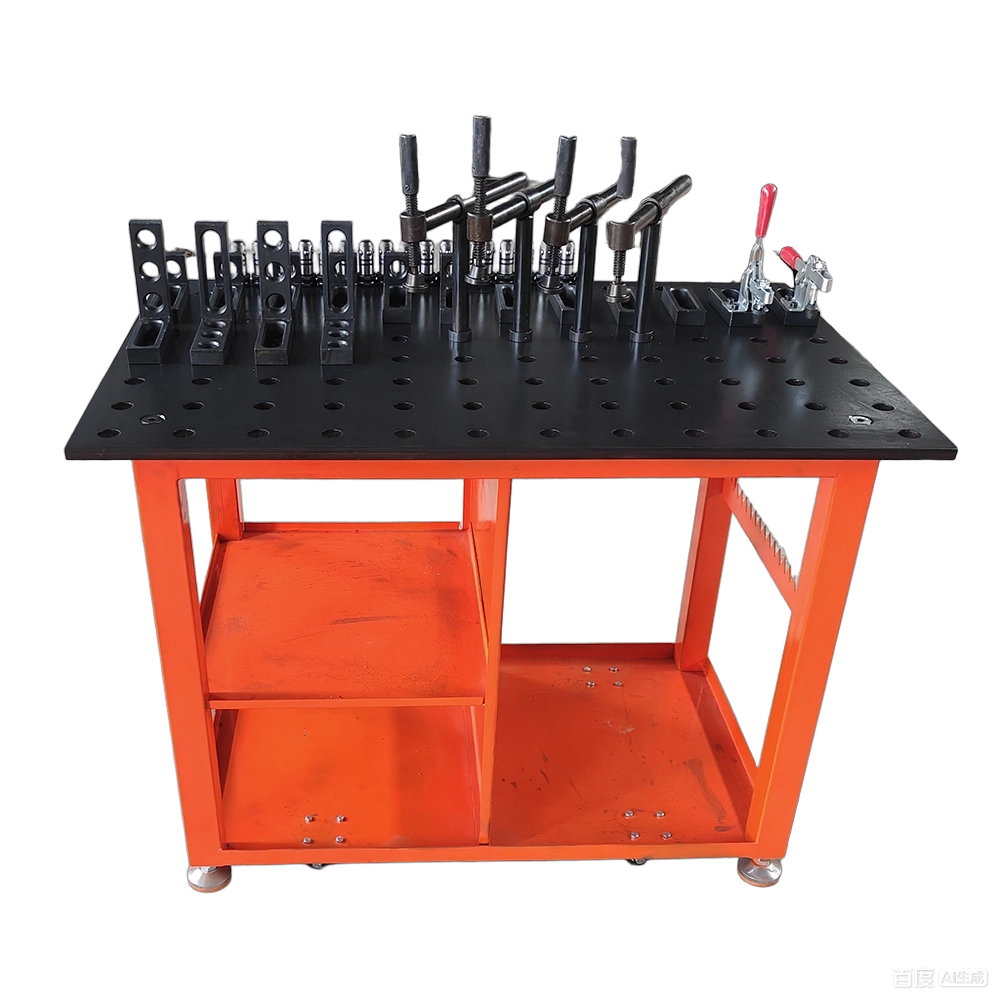

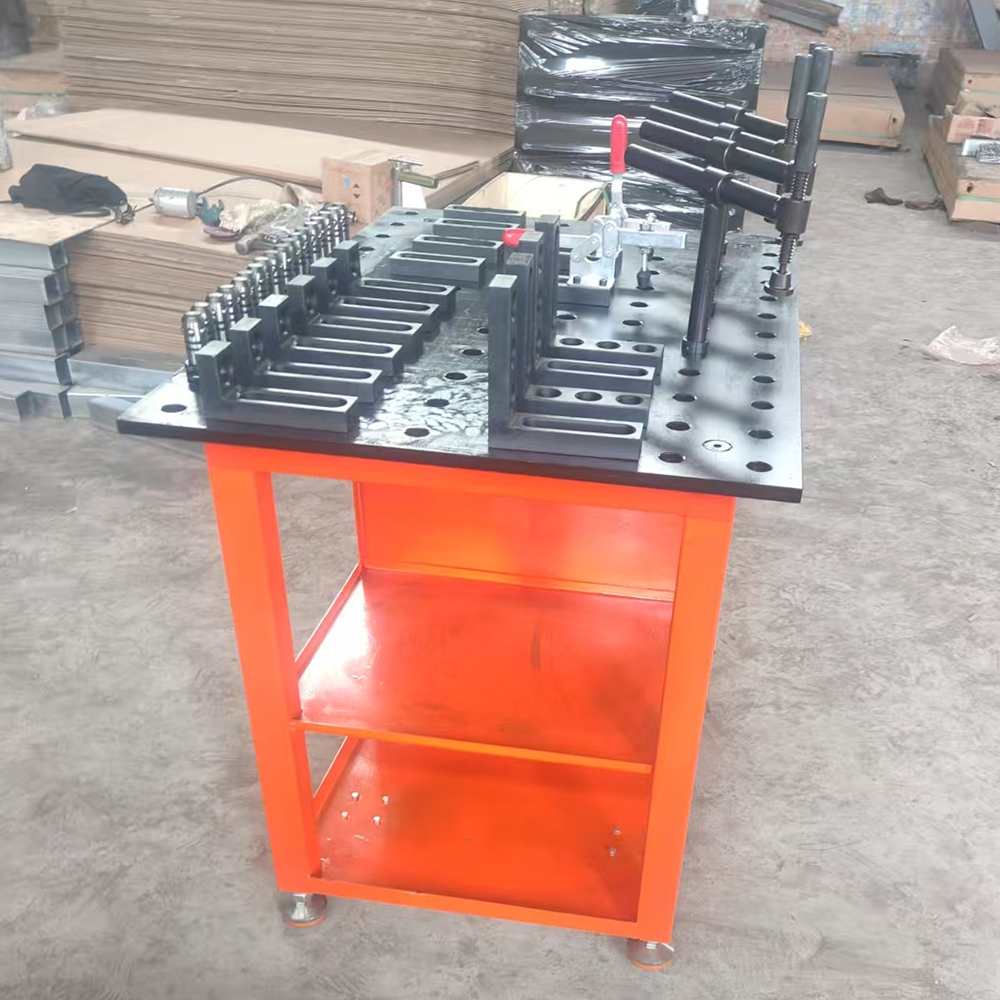

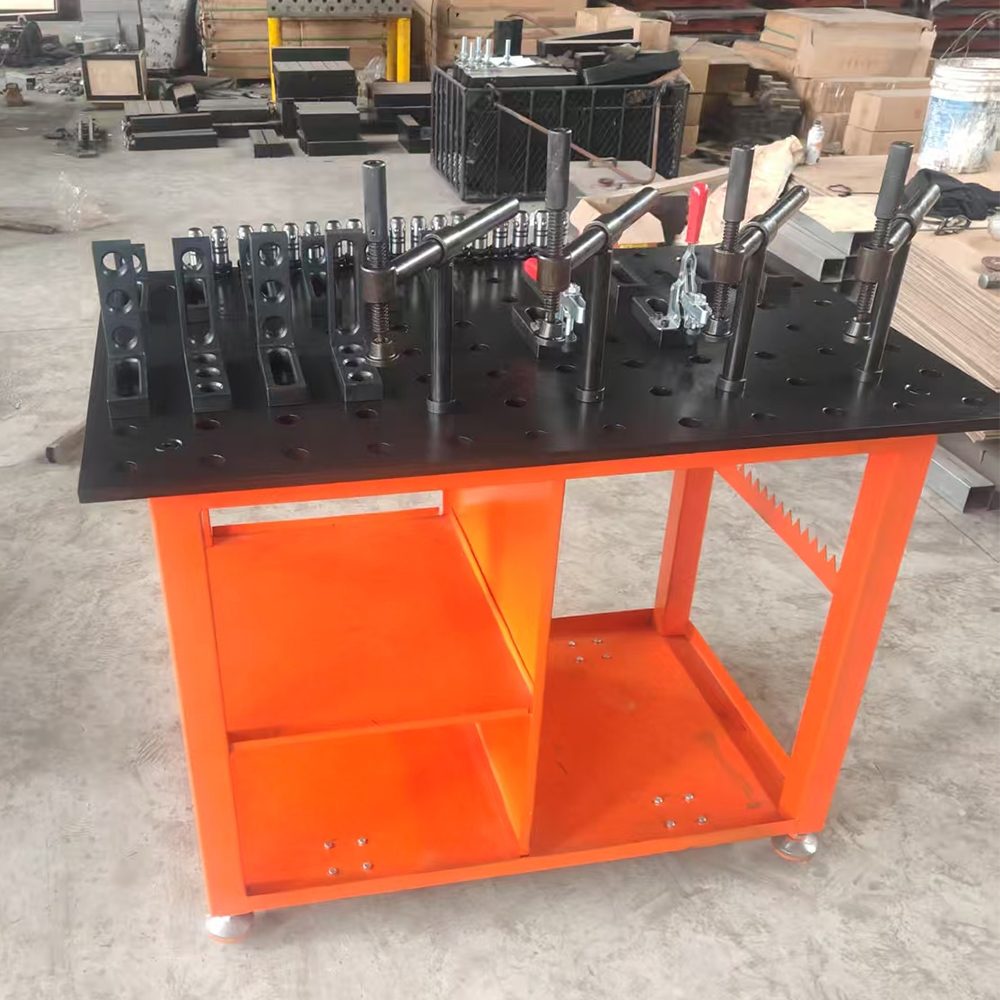

The table features a lightweight yet robust structure for easy movement and installation. Its modular design allows for quick assembly and disassembly, while the standardized hole positions enable flexible combination with positioning angle rulers, clamping pieces, and other accessories. The ergonomic design reduces operator fatigue, enhancing overall production safety and comfort.

Key Technical Specifications

Application Scenarios

Sheet Metal Fabrication Industry

Ideal for welding and assembling sheet metal components such as chassis, brackets, and enclosures, widely used in electrical equipment, hardware manufacturing, and precision machinery plants.

Engineering Machinery Manufacturing

Suitable for welding structural parts of loaders (boom, front/rear frame), forklifts, and other engineering vehicles, ensuring precise assembly of large components.

Automotive & Transportation Sector

Applied in welding high-speed train air conditioning units, window frames, and automotive sheet metal parts, meeting the strict precision requirements of the transportation industry.

Food Processing Equipment

Used in the assembly and welding of mineral water equipment, beverage production lines, and food processing machinery, adhering to hygiene and corrosion-resistant standards.

Customization Service

Dimension Customization

According to user-specific production needs, we offer customized length (L), width (B), and height (H) dimensions, with a maximum customizable length of 3000mm for standard models and extended options available for special requirements.

Accessory Matching Customization

Provide tailored supporting accessories such as U-shaped square boxes, adjustable support legs, and positioning angle rulers to meet unique clamping and positioning needs of different workpieces.

Surface Treatment Customization

Offer enhanced corrosion-resistant coating or high-temperature resistant treatment for special working environments (e.g., humid workshops, high-dust areas), extending product service life.

Why Choose Us

ISO9001-Certified Quality: Our company holds ISO9001 management system certification, ensuring strict quality control from raw material procurement to production and delivery.

Professional Technical Team: We have a dedicated R&D team with years of experience in welding equipment design, providing technical support and solution optimization for B-end users.

Efficient Logistics & Delivery: Located in Siying Industrial Zone with developed transportation networks, we ensure fast and reliable delivery to domestic and international customers.

Comprehensive After-Sales Service: Offer 1-year warranty, on-site installation guidance, and regular maintenance consultation to resolve user issues promptly.

Cost-Effective Solutions: As a direct manufacturer with a 4000㎡ production base, we provide high-quality products at competitive prices, reducing procurement costs for enterprises.
