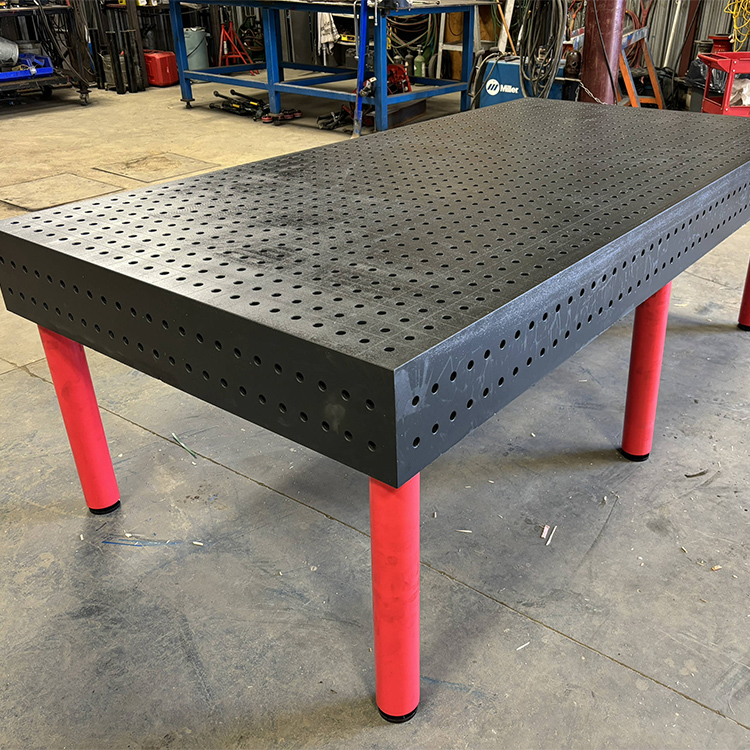

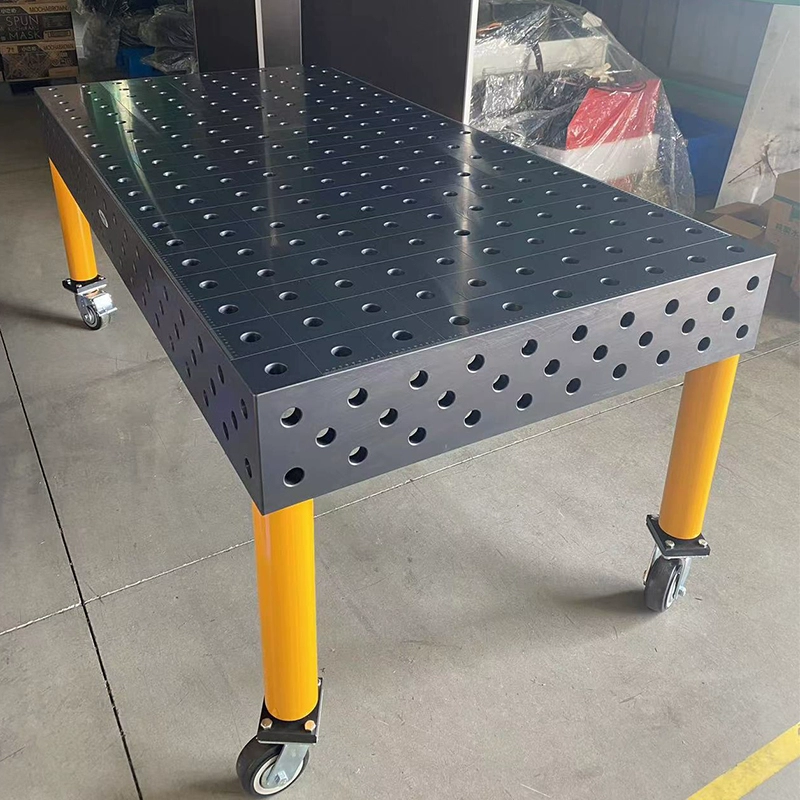

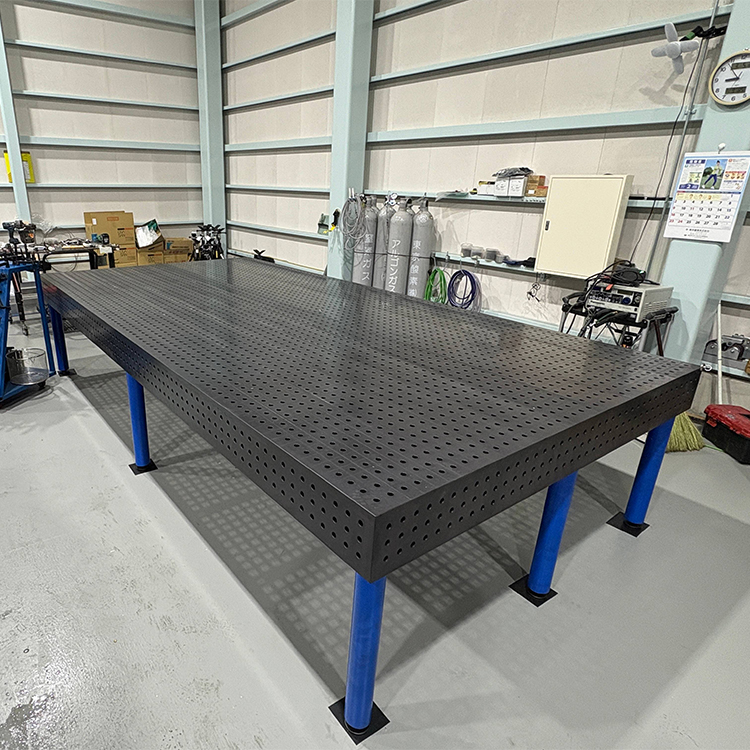

The Flexible 3D Welding Table for Metalwork is a precision-engineered solution designed for modern metal fabrication and welding processes. As a core product of Botou Xintian Environmental Protection Equipment Co., Ltd.—an ISO9001-certified manufacturer with a 4,000-square-meter production base in Hebei, China—this table integrates 3D flexible combination technology to meet the rigorous demands of B-end users in industrial metal processing. Crafted from high-quality casting or steel components, the table undergoes annealing and aging treatments to ensure structural stability and resistance to deformation. Its surface and holes are sprayed with rust-proof lubrication, extending service life even in harsh workshop environments.
| Quantity: | |
|---|---|
Ideal for precision metal fabrication welding and robot welding integration, the table features grid-patterned marking lines for quick positioning and clamping, eliminating the need for time-consuming manual measurements. Whether handling single metal workpieces or complex component assemblies, this flexible welding platform delivers efficient, accurate, and cost-effective performance, making it a cornerstone for enhancing production efficiency in metal processing industries.

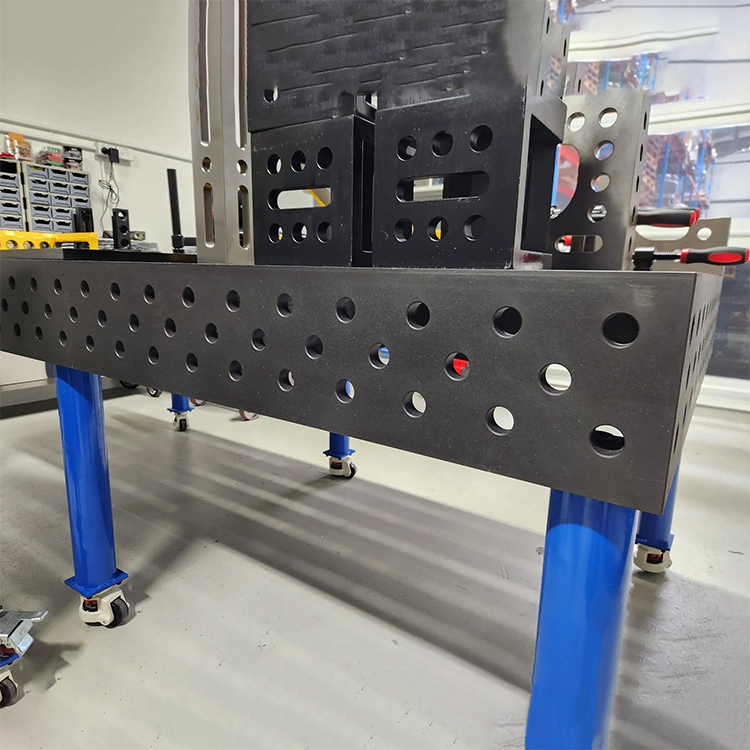

Equipped with standardized hole positions and grid marking, the table achieves precise positioning with minimal adjustment errors. The 3D flexible metal welding fixture system allows for multi-angle clamping and rapid switching between different workpieces, reducing setup time by up to 80% compared to traditional welding tables.
Made from premium casting or steel, the table undergoes strict annealing and aging processes to eliminate internal stress, ensuring no deformation even under heavy loads. The rust-proof lubrication coating protects against corrosion and wear, maintaining performance stability in long-term industrial use.
Designed to work in tandem with robotic arms and automated welding systems, the table supports robot welding workstation integration, enabling intelligent, high-efficiency welding operations. The flexible fixture design adapts to diverse workpiece shapes, making it suitable for automated production lines.
Compatible with various metalwork scenarios—from small precision parts to large structural components—the table accommodates different product specifications without requiring custom tooling, reducing equipment investment costs for B-end users.
Model Number | Dimension (L×B×H, mm) | Aperture (mm) | Load Capacity | Material | Surface Treatment |
D28-XTC281010 | 1000×1000×200 | 28 | 2T | Casting | Rust-proof lubrication spray |
D28-XTS281212 | 1200×1200×200 | 28 | 2T | Steel | Rust-proof lubrication spray |
D16-XTC161515 | 1500×1500×150 | 16 | 1T | Casting | Rust-proof lubrication spray |
D16-XTS162010 | 2000×1000×150 | 16 | 1T | Steel | Rust-proof lubrication spray |
Ideal for welding large structural components such as loading truck boom assembly and front/rear frame welding. The table’s high load capacity and flexible positioning support the production of heavy-duty machinery parts.
Used in welding high-speed train air conditioning units, train window assemblies, and aircraft wing components. The precision positioning ensures consistent quality in critical transportation parts.
Suitable for welding mineral water plant equipment and food processing machinery. The rust-proof design meets hygiene and durability requirements for food-related industries.
Applicable to small-batch and mass production of metal parts, including custom metal components and standard structural elements, catering to diverse B-end manufacturing needs.
We offer tailored solutions for custom flexible 3D welding tables for metalwork to address unique user requirements:
Custom dimensions (length, width, height) based on production line space and workpiece size.
Aperture customization (D16/D28 series or other specifications) to match existing tooling systems.

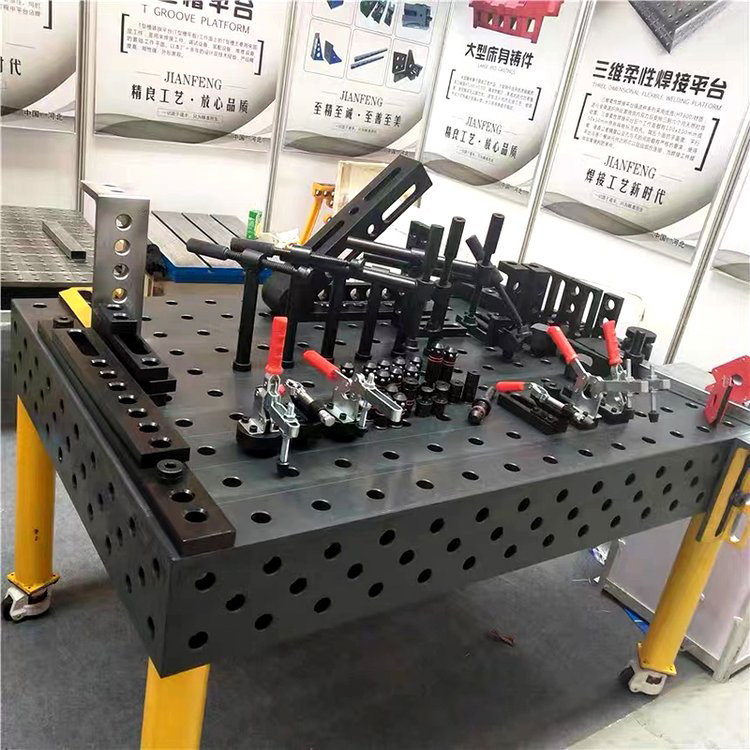

Accessory customization, including U-shaped square boxes, support legs, and positioning rulers, for specialized welding tasks.
Non-standard design support from our professional engineering team, ensuring compatibility with specific production processes.
ISO9001-Certified Quality: Our strict quality management system guarantees reliable product performance and consistency.
Professional R&D Capabilities: We have a dedicated team specializing in 3D flexible welding fixture development and robot automation integration, providing technical expertise for complex projects.
One-Stop Service: From R&D, design, and production to after-sales support, we offer end-to-end solutions to streamline your procurement process.
Geographical & Logistics Advantages: Located in Siying Industrial Zone with developed transportation networks, ensuring fast delivery to domestic and international clients.
Cost-Effective Solutions: Our direct-manufacturer model eliminates middlemen, offering competitive pricing without compromising quality.
